Product omschrijving

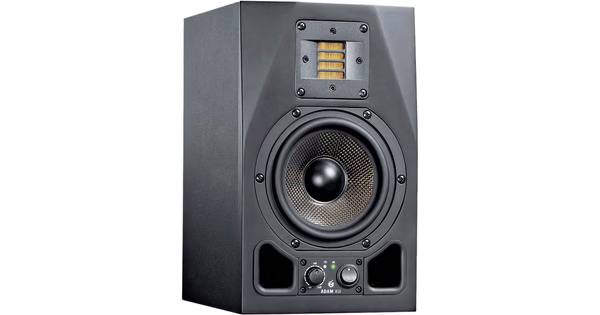

ADAM AUDIO A5X
The A5X is popular among professionals working in television studios and remote broadcast vans. The A5X can also be found in numerous home/project studios around the world. Its open, powerful sound makes the A5X a trustworthy and useful tool for multimedia applications as well.
Like all models of the AX-Series, the A5X is equipped with ADAM Audio‘s proprietary X-ART tweeter. One 5.5“ bass/midrange woofer works below 2.5kHz and is driven by a 1.5“ voice coil and a powerful 50 Watt PWM amplifier. Its acoustic qualities give you a clear picture of the smallest changes in your mix and the sonic results. Despite all that it does, the A5X is not fatiguing in long studio sessions.
Stereolink
The ‘Stereolink’ is a useful feature for desktop DAWs. Two additional input and output jacks for the second stereo channel allow you to control the volume for both monitors using the volume control of only one loudspeaker. The volume control of the other monitor only affects its own volume in order to easily compensate for differences in listening distance. Unlike the typical master-slave configuration, each A5X monitor is fully equipped and can function either as a master or a slave unit.
- German Handmade Precision X-ART Tweeter
- 5.5“ Woofer (Carbon/Rohacell/Glass Fiber)
- Amp. Power RMS / Music: 100 W / 150 W
- Frequency Response: 50 Hz - 50 kHz (-10 dB)
- Max. SPL per pair at 1 m: ≥110 dB
STATE OF THE ART TECHNOLOGY
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.
X-ART TWEETER
ADAM Audio has improved upon the Air Motion Transformer utilizing superior geometries and materials to achieve unprecedented audio fidelity.
X-ART DRIVER
A groundbreaking technological innovation with easily discernible superior performance and no technical flaws, the X-ART driver is clearly unequalled in the ...
A/B AMPLIFIER
We designed our own high frequency power amp to allow the new high frequency unit to live up to its unique talents.
WOOFER
HexaCone woofers are an integral component in most of ADAM’s monitors/speakers. The core is a honeycomb Nomex structure that makes them ...
WOOFER
- Number1
- Basket Ø5.5" (145 mm)
- Voice Coil Ø1.5" (32 mm)
- Cone MaterialCarbon / Rohacell / Glass Fiber
CONTROL OPTIONS
- Input Sensitivity -∞ to +14 dB
- High Shelf EQ > 5 kH z±6 dB
- Low Shelf EQ < 300 Hz ±6 dB
- Tweeter Gain ±4 dB
TWEETER
- Number1
- TypeX-ART
- Diaphragm Area 4 inch² (2420 mm²)
- Equiv. Diaphragm Ø2" (56 mm)
- Velocity Transform Ratio 4:1
- Diaphragm Weight 0.17 g
INPUT CONNECTORS
- Analog XLR / RCA
BUILT-IN AMPLIFIERS
- Woofer 1
- Type PWM
- Amp. Power RMS / Music 50 W / 75 W
- Tweeter1
- Type A/B
- Amp. Power RMS / Music 50 W / 75 W
GENERAL DATA
- Frequency Response 50 Hz - 50 kHz (-10 dB)
- THD 90 dB / 1 m > 100 Hz ≤0.6 %
- Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m≥102 dB
- Max. SPL per pair at 1 m ≥110 dB
- Crossover Frequencies 2.5 kHz
- Input Impedance 30 kOhm
- Panel Front
- Stereolink Yes
- Weight 14.6 lb (6,6 kg)
- Magnetically Shielded No
- Height x Width x Depth11" (280 mm) x 6.5" (170 mm) x 8.5" (220 mm)
- Warranty 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents Cinch-cable, power cord, manual
