Antelope Orion 32+ Gen 3 Thunderbolt & USB | B-Stock

64 SIMULTANEOUS HI-RES AUDIO CHANNELS VIA THUNDERBOLT™

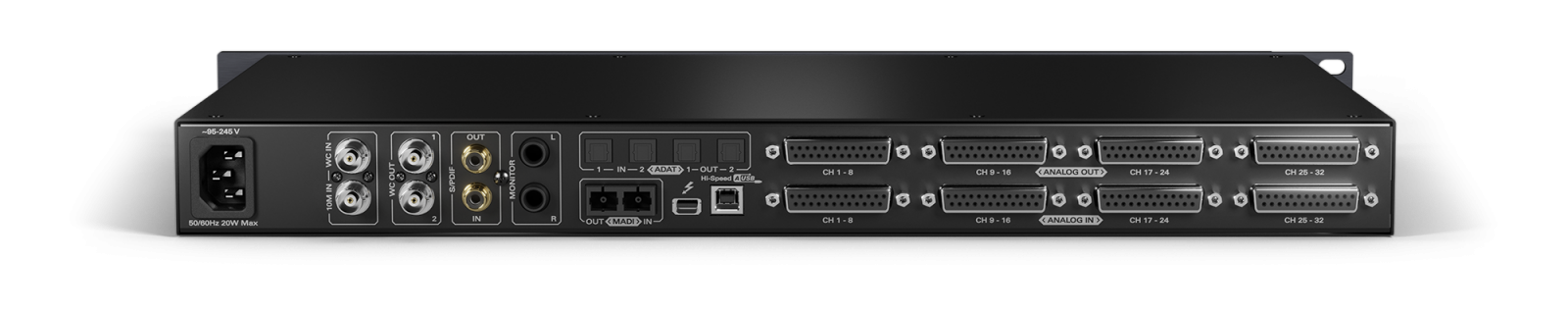

Connects seamlessly with any DAW on PC or MAC. Orion32+ | Gen 3 features low-latency recording & playback of up to 64 simultaneous 24/192 audio channels via Thunderbolt™ and up to 32 channels over USB. The sleek single rack space unit features 8x DB25 connectors for Analog I/O. Digital connections are 1x MADI, 2x ADAT, and 1x S/PDIF.

HEAR THE PAST. EXPECT THE FUTURE.

Orion32+ | Gen 3 includes a complimentary suite of superb real-time effects selected from a growing library of Antelope Audio FPGA FX. Additional effects can be purchased to expand your arsenal of FX.

REAL-TIME FX INCLUDED

Ready? Set? Get rocking! Orion32+ | Gen 3 includes six premier essential audio effects from the Antelope library, which run in real-time on an ultra-fast FPGA platform. Covering a wide variety of tracking and mixing uses, each effect boasts mastering grade precision and clarity – from the Clear Q linear EQ to the spacious and advanced AuraVerb. These six tools alone cover all your essential mixing and mastering needs.

EXEMPLARY CLOCKING & CONVERSION

Antelope Audio is known over the world as the premier audio clocking experts. This legend lives on thanks to our next-generation 64- bit Acoustically Focused Clocking technology & jitter management algorithm. A pair of Word Clock outputs turn the Orion32+ | Gen 3 into a world-class Master Clock for your entire studio, while a 10MHz input allows for use with the best possible stability using Antelope’s legendary 10M & 10MX Atomic Clocks.

With it’s brand-new AD/DA converters achieving up to 129dB dynamic range (Monitor Outs), Orion32+ | Gen 3 continues our reputation for pristine conversion quality. Hear the true sound of your music with both digital clarity and analog warmth.

SUB-MILLISECOND ROUNDTRIP LATENCY. A FACT.

Orion32+ | Gen3 delivers true sub-millisecond round-trip latency for both AD and DA conversion.  We proudly present the following stellar measurements, using our proprietary Windows Thunderbolt™ driver ver. 1.0.4.87 tested using the Oblique Audio RTL Utility.

Stable playback & recording were achieved at these measured settings, in PreSonus Studio One 4, on an Intel Core i7-8700K CPU.  But, let the figures speak for themselves.

* Considering AD/DA conversion’s inherent latency and the technical state-of-the-art in the pro audio industry, it is currently impossible to achieve sub-millisecond latency under each and every recording & playback scenario. Fortunately, the latency achieved in the measurements provided is low enough to be practically imperceptible.

** To achieve stable playback on macOS we used bigger buffers (e.g. 96 samples at 192kHz), resulting in slightly higher latency – around 0.5ms more than on Windows at 192kHz.

Line Out <-> Line In

192kHz, 64 samples, 0.904ms

96kHz, 32 samples, 0.973ms

48kHz, 16 samples, 1.168ms

Monitor <-> Line In

192kHz, 64 samples, 1.155ms

96kHz, 32 samples, 1.476ms

48kHz, 16 samples, 2.165ms
