Product omschrijving

The Opticom XLA-3 MKIII

Acme Audio’s flagship all-tube optical limiter.

The Opticom XLA-3 is an all-tube optical limiter inspired by the classic Teletronix LA2A. Loving the la2a’s smooth natural compression characteristics but seeking to improve upon its single compression speed inspired us to develop the XLA-3. The heart of the XLA-3 is a unique triple optoelectronic circuit that combines the best characteristics of 3 separate compression curves into a single unit. The result: a high-speed optical limiter with tones that range from ‘clean’ to ‘harmonically rich’ to ‘dirty.’

Main Features:

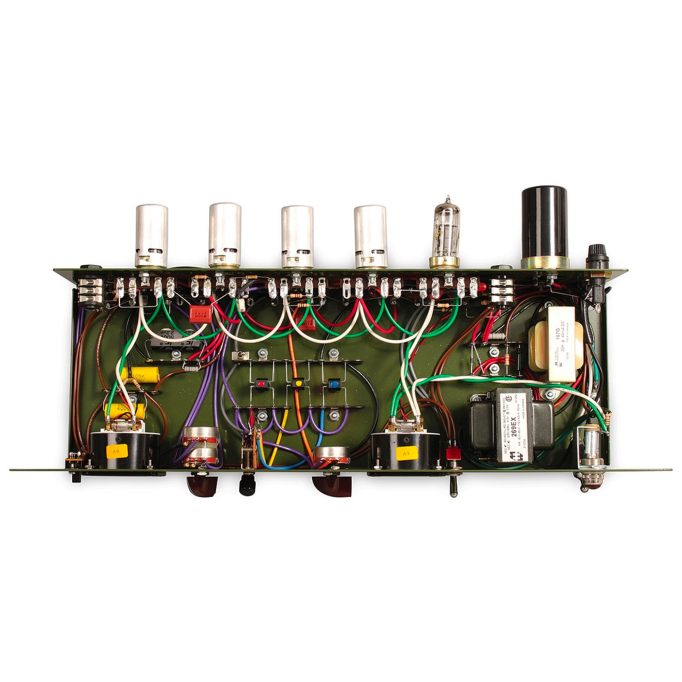

All tube circuitry
High-speed cadmium-selenide (CdSe) photocells
Custom Bakelite analog control knobs

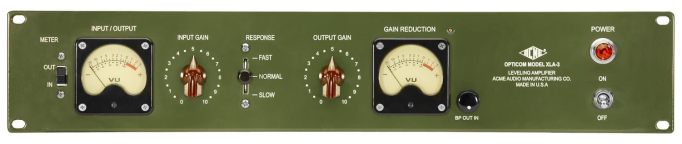

Full-sized backlit panel meters
15db switchable input pad
Hand-wired 2 stage bypass switch
Triple optoelectronic circuit
Cinemag input transformer
IEC power connector
115/230V AC Mains
Neutrik XLR input and output connectors
Stereo link connector
Micalex tube sockets

Specifications:

Frequency response: 20Hz-20kHz +/- 1.4dB
Distortion: Yes.
Gain reduction: 29 dB maximum
Make-up gain: 34 dB.

Additional info:

Width: standard 19″ rack mount.
Height: standard 2U, 3.5″ rack mount.
Depth: 8.75″ from front panel.
Weight: 10.5 lbs/ 4.8 kgs.
Voltage requirement: 115/230 Volts / 60 Hz.
Current draw: 265 mA.
Power consumption: 32/64 W.
