API Vision Console

Volledige discrete surround meng- en opnameconsole

  • API 32-Channel Vision at the University of Michigan
  • API 48-Channel Vision at Wisseloord Studios Hilversum the Netherlands

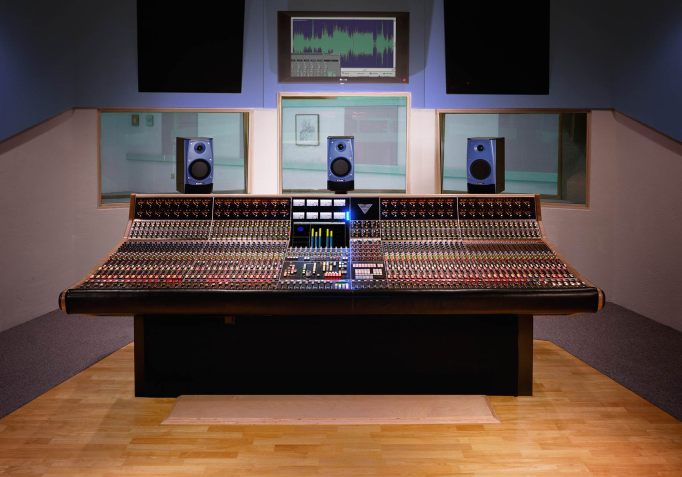

  • API 64-Channel Vision

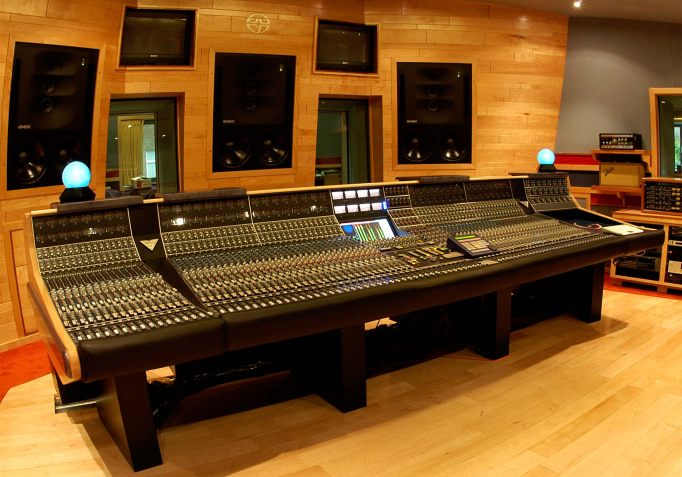

  • API 80-Channel Vision at Galaxy Studios Mol Belgium
Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

API Vision

All Discrete Surround Mixing and Recording Console

The API Vision is a surround mixing and recording console, featuring surround assign and panning on each fader, plus comprehensive central facilities. The only analog console ever designed from the ground up for surround work.

Overview

  • Resettable Switch Automation, assignable per Channel or Globally
  • Resettable Bus Assign, assignable per Channel or Globally
  • Twenty-Four Multitrack Summing Busses
  • Dedicated Surround Mix Bus
  • Three Independent Stereo Busses
  • Simultaneous Surround and Stereo Mixing
  • API's all Discrete Signal Path
  • Transformer Outputs

Each Channel Features

  • Dual signal path architecture (two independent audio paths, Fader 1 and Fader 2)
  • Dual input (MIC and TAPE)
  • Two 100mm Automated Moving Faders on each path
  • Simultaneous Stereo and Surround Panning on each path
  • Ten Auxiliary Sends (two stereo, six mono, all switchable between paths and pre/post fader)
  • 40-600 Hz High-Pass Sweep Filter in Fader 1 path
  • 70 Hz High-Pass Filter in Fader 2 path
  • Assignable Equalizer (as fitted):
    o   550A 3-band Parametric
    o   550L 4-band Parametric
    o   560L 10-band Graphic
  • Optional Processing (as fitted):
    o   205L Direct Input
    o   212L Microphone Preamplifier
    o   215L Sweep Filter
    o   225L Compressor
    o   235L Noise Gate
    o   525 Re-Issue Compressor (special order)
    o   527 Compressor Limiter (special order)
  • Balanced Insert in each path
  • Phase Reverse (Polarity Inverter)



Central Facilities

  • Comprehensive Surround Monitoring
  • 8 Multi-channel playback selectors
  • Bass management
  • Individual Solo/Mute control of surround monitors
  • Surround Fold-down Matrix
  • Central Computer/monitor for automation and recall
  • Comprehensive automation system (Fader 1, Fader 2, and switches)
  • DAW control
  • Machine Control (optional)
  • Provision for optional signal processing:
    o   205L Direct Input
    o   212L Mic Pre
    o   215L Sweep Filter
    o   225L Compressor
    o   235L Noise Gate
    o   525 Re-Issue Compressor (special order)
    o   527 Compressor Limiter (special order)
  • Monitor Calibration Controls
  • 3 sets of speaker assigns

Also Featuring

  • The same exacting craftsmanship featured on all API Legacy Series Consoles
  • API's unique 5 year warranty
  • Full Patch Bay facilities
  • Highest Quality Leather and Wood Trim
  • Custom Built to Client's Specification



API's VISION responds to the major advances in digital audio recording. Digital media demands a new level of performance, reliability and flexibility from the professional tools used to create audio masters. From the mic amps and equalizers, to the signal processing devices and right through the bus and routing structures of an audio console, we applaud the rising levels of sonic expectation today's audio performances demand. API proudly presents the Vision Recording and Mixing Console, built to the same exacting standards of reliability, sonic performance, and investment grade audio that has made the Legacy Series the standard of modern recording consoles.

VISION Dedicated to all those who hear, appreciate, and demand the best.
