Audient ASP 800

8 kanaals mic-pre inclusief AD conversie. line out via D-Sub of digitaal via ADAT.

8 kanaals mic-pre + AD converter

€ 475,21excl. 21% BTWDit product goedkoper?
Klik hier en word Gouden Klant
€ 575,00incl. 21% BTWDit product goedkoper?
Klik hier en word Gouden Klant

Aantal

Niet op voorraad.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

Jaarverhuur

€0,35/ dag

Voeg toe aan jaarverhuur +

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Combineer met deze producten

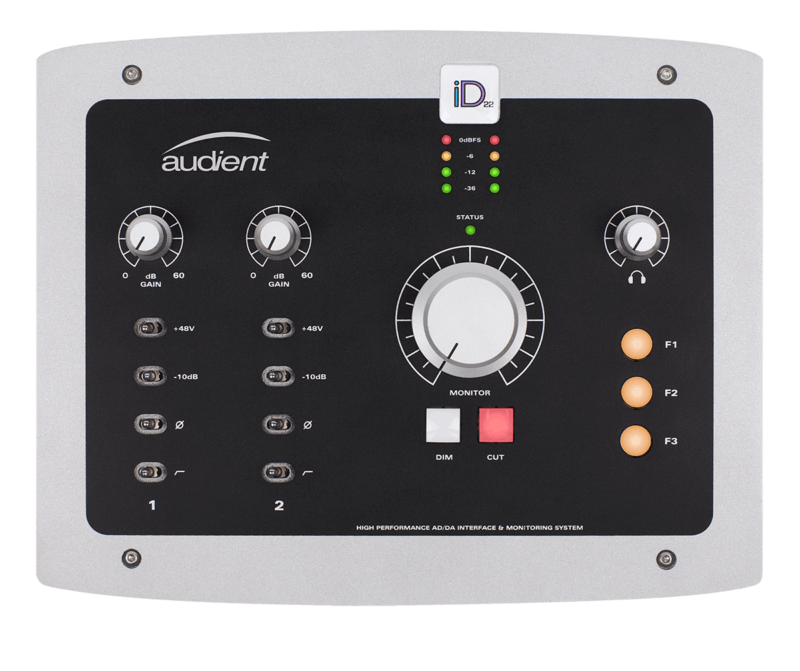

Audient iD 22 | B-stock

Audient iD 22 | B-stock

Voorraad Voordeel

10 in | 14 out audio interface Lees meer...

Op voorraad. Voor 15:00 besteld, vandaag verzonden

Product omschrijving

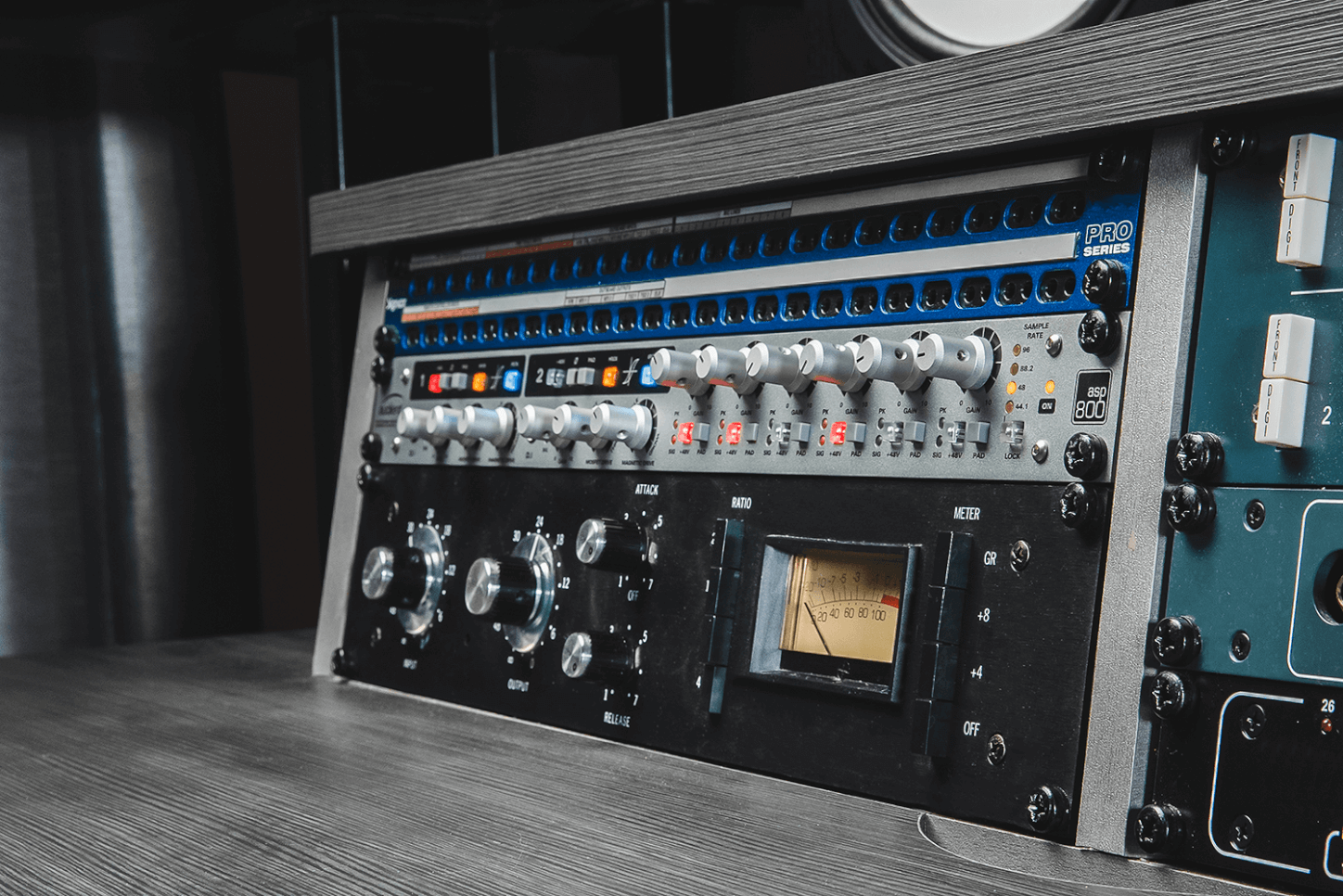

ASP800 is an audio powerhouse designed with expandability in mind, making it the perfect addition to your audio interface. Upgrade your current setup with 8 channels of Audient’s Console mic preamps, 8 line inputs, class leading converters, two JFET D.I’s and two Retro Channels with powerful tone control.


Expand via ADAT:

More channels,
more possibilities

ASP800 is the perfect tool for expanding your existing interface. Add 8 channels of Audient mic pre via ADAT and transform your current setup into the complete recording rig.

Audient Console Mic Pres

The professional
sound you deserve

Tackle any project with the renowned Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra-low noise and low distortion with a touch of classic analogue warmth, ASP800’s eight Audient Console mic pre’s will give you the professional sound you deserve.

The Retro Channels

Add colour to your audio

Designed to emulate tones often associated with 1960’s tube designs and the coveted transformer zing of British audio in the 1970’s, HMX & IRON give you the option to add analogue tone to your recordings.

HMX

Harmonic saturator

By using discrete MOSFET technology HMX produces asymmetrical harmonic distortion, giving you the option to add richness and body to the pristine tone of the Audient mic preamp.

IRON

Transformer drive

Using a custom British transformer with a high voltage MOSFET drive network, IRON is designed to add saturation reminiscent of magnetic tape distortion and recreate that sparkly, “sounds like a record” signature of 1970’s recording.

How does it work?

One control simultaneously alters drive impedance, bass response, high frequency damping, phase shift, magnetic saturation and transient shaping, letting you instantly add character to your audio.



MIC GAIN:

SWITCHABLE PAD:

LINE GAIN:

PHANTOM POWER:

MIC EIN:

CMRR:

MAXIMUM INPUT LEVEL:

INPUT IMPEDANCE (Mic):

INPUT IMPEDANCE (Line):

FREQUENCY RESPONSE:

CROSSTALK:

THD+N @ 0dBu (1kHz):

SNR:

XLR COMBI FEMALE:

1/4” TRS JACK:

0 to 70 dB (extra gain stage for more!)

-15 dB (all channels front panel switchable)

-10 to 60 dB (-25 to 45 dB inc. PAD)

48V ±4V @ 10mA / channel

<-127.0 dBu

>80 dB @ 100Hz to 2kHz

+20 dBu (+35 dBu with PAD)

>2k Ω balanced (approx. 2.2k Ω)

>8k Ω balanced (approx. 8.6k Ω)

±0.5 dB 10Hz to 100kHz @ min. gain

< -90 dBu 10Hz to 10kHz

<0.003% (-90.5 dBu) mostly 3rd harmonic

>90 dB @ min. gain

Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

Tip (Hot), Ring (Cold) & Sleeve (Shield)

CHIPSET:

DIGITAL REFERENCE LEVEL:

FREQUENCY RESPONSE:

CROSSTALK:

THD+N @ -1 dBFS (1kHz):

THD+N @ -6 dBFS (1kHz):

DYNAMIC RANGE:

PEAK LED LINEUP:

SIGNAL LED LINEUP:

Burr-Brown PCM4204 24-bit PCM

Selectable via Rear Panel, 0 dBFS = +18 dBu (iD22 Professional), 0 dBFS = +12 dBu (iD14 Prosumer)

±0.1 dB 20Hz to Fs/2 (Nyquist)

<-110 dBFS @ 1kHz & <-90 dBFS @ 10kHz

0.0015% (-96.5 dB)

0.0009% (-101 dB)

113.5 dB un-weighted, 116.0 dB A-weighted

-2 dBFS (moves with reference level)

-38 dBFS (moves with reference level)
