Audio Technica AT 5040

AT5040

Studio Vocal Microphone

Introducing Audio-Technica’s premier studio vocal microphone, the AT5040 cardioid condenser.

A MILESTONE IN CONDENSER MICROPHONE DESIGN

The debut of our flagship 50 Series, the AT5040 represents a milestone in condenser design, offering remarkably musical high-fidelity performance, with profound realism and depth, presence and purity of sound.

• Audio-Technica’s premier studio condenser vocal microphone
• Extremely musical high-fidelity performance, with profound realism and depth, presence and purity of sound
• Four rectangular diaphragms (2 micron) function together as Audio-Technica’s largest-ever element, providing combined surface area twice that of a standard one-inch circular diaphragm
• Exceptionally low noise and wide dynamic range ideal for studio vocals
• Discrete components carefully selected for optimized capsule performance
• High-SPL capability and extended frequency response
• Hand assembled and inspected for 100% quality control
• Elegant, durable housing of aluminum and brass

“A Milestone In Condenser Design”

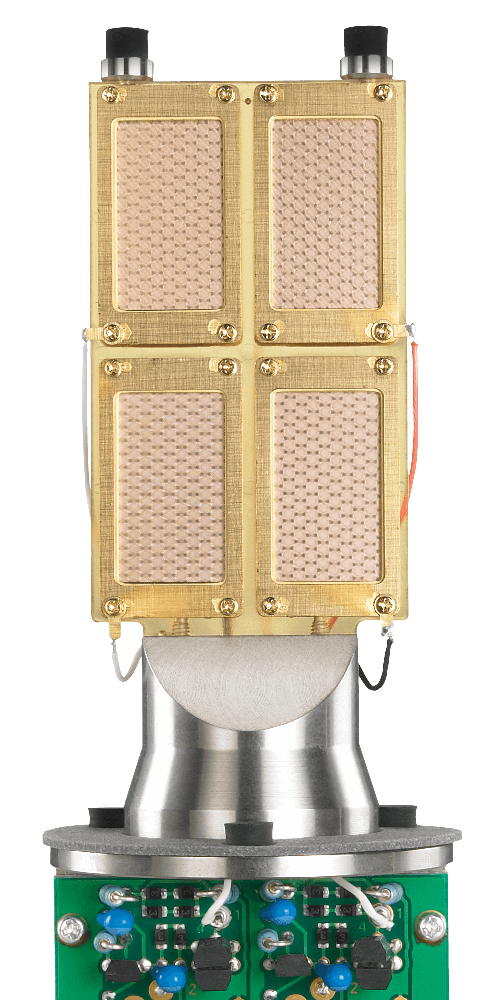

Four-part rectangular elementExclusively for the AT5040, Audio-Technica engineers developed a four-part rectangular element, the pinnacle of our recent breakthroughs in sound-capture technology.

“Audio-Technica’s largest-ever element”

By using four diaphragms in a single capsule, the AT5040 delivers the benefits of an exceptionally large diaphragm – along with an extremely low noise floor - without increased weight or decreased transient response.

100% Quality ControlEvery AT5040 is hand assembled and individually inspected ensuring 100% quality control.

“Pure Innovation, Not Emulation...”

As much as we admire the great microphones of the world, this new 50 Series cardioid condenser is pure innovation, not emulation.

Pure InNovation

As much as we admire the great microphones of the world, this new 50 Series cardioid condenser is pure innovation, not emulation.

Four-part element

Four rectangular diaphragms (2 micron) function together as Audio-Technica’s largest-ever element.

AT8480 Shock Mount

An advanced-design custom shock mount provides superior isolation attenuating noise, shock and vibration.

100% Quality Control

Every AT5040 is hand assembled and individually inspected for 100% quality control.

Specs:

• Element Fixed-charge back plate, permanently polarized condenser
• Polair patroon Cardioid
• Frequentierespons 20 - 20,000 Hz
• Gevoeligheid open circuit -25 dB (56.2 mV) re 1V at 1 Pa*
• Maximaal geluidingangsniveau 142 dB SPL, 1 kHz at 1% T.H.D.
