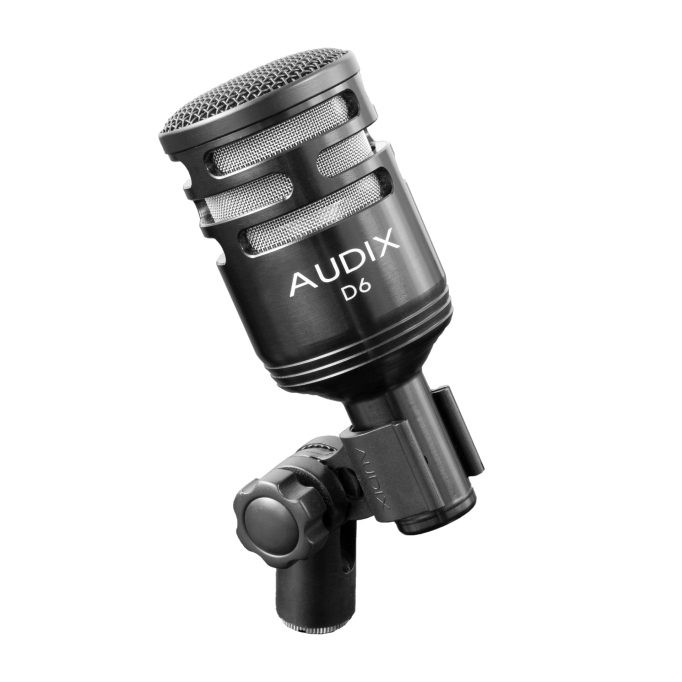

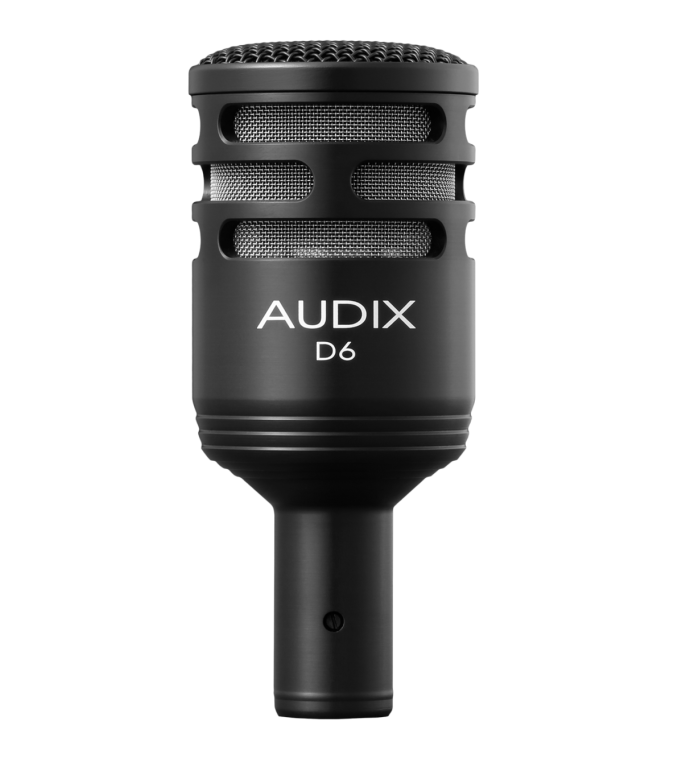

Audix D 6

D6

PROFESSIONAL DYNAMIC INSTRUMENT MICROPHONE

The D6 dynamic instrument microphone is used for stage, studio, and broadcast applications. Designed with a cardioid pickup pattern for isolation and feedback control, the D6 drum microphone is equipped with a VLM™ diaphragm for natural, accurate sound reproduction.

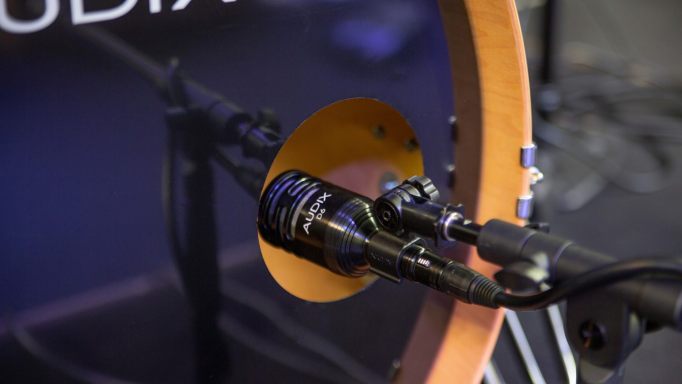

Lightweight, compact, and easy to position, the D6 cardioid microphone is an excellent choice for miking instruments requiring extended low-frequency reproduction such as kick drums, large toms, and bass cabinets. The D6’s transformerless design, low impedance, and balanced output allow for interference-free performance.

Designed, machined, assembled, and tested by Audix in the USA.

SPECS:

• Transducer Type Dynamic
• Frequency Response 30 Hz – 15 kHz
• Polar Pattern Cardioid
• Output Impedance 280 ohms
• Sensitivity 0.8 mV / Pa @ 80 Hz
• Capsule Technology VLM Type E
• Off-Axis Rejection >20 dB
• Maximum SPL ≥144 dB
• Power Requirements None
• Connector 3-pin XLRm
• Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish Machined Aluminum / Black Finish
• Weight 254 g / 8.9oz
• Length 117 mm / 4.6 in
