Audix MicroD

MicroD

MINIATURE CONDENSER INSTRUMENT MICROPHONE

The MicroD is primarily a drum and percussion instrument microphone for professional stage and studio applications. The MicroD has a uniformly controlled hypercardioid polar pattern and a smooth, accurate response in its frequency range.

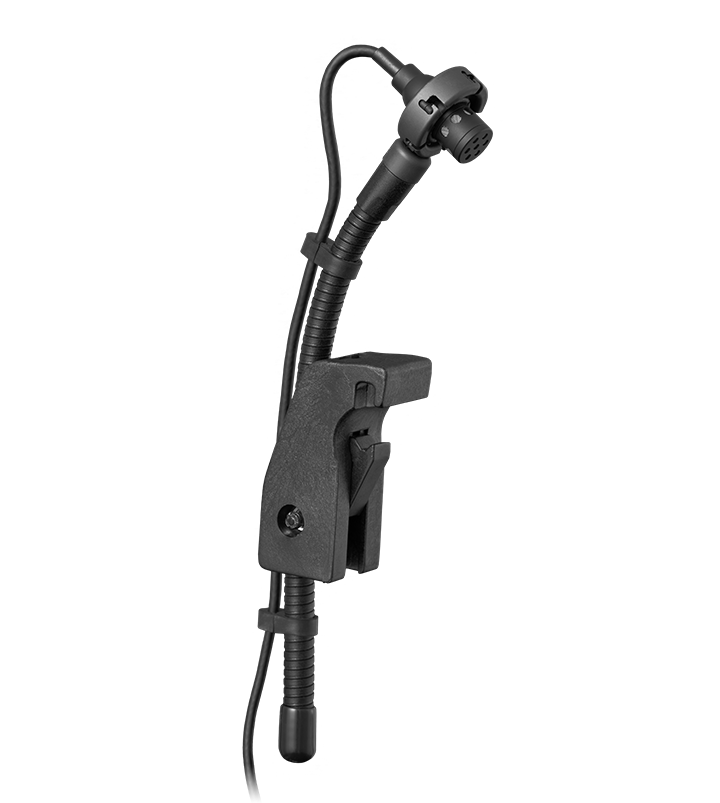

This microphone is lightweight, compact, and simple to use. The MicroD is housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroD hypercardioid microphone attaches easily and firmly to a standard drum rim utilizing the patented DVICE rim mount system.

Designed, machined, assembled, and tested by Audix in the USA.

Specs:

Transducer Type Pre-Polarized Condenser

Frequency Response 40 Hz – 20 kHz

Polar Pattern Hypercardioid

Output Impedance 250 ohms

Sensitivity 5.6 mV / Pa @ 1k

Equivalent Noise Leve l24 dB

Signal to Noise Ratio 70 dB

Maximum SPL ≥140 dB

Power Requirements 9 – 52 V phantom

Connector 3-pin mini to 3-pin XLRm (APS910)

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Machined Brass Capsule / Black Finish

Gooseneck Flexible Steel

Weight 47 g / 1.6 oz

Length 30 mm / 1.14 in
