Audix TM 1

Omni-directional test- en meetmicrofoon

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

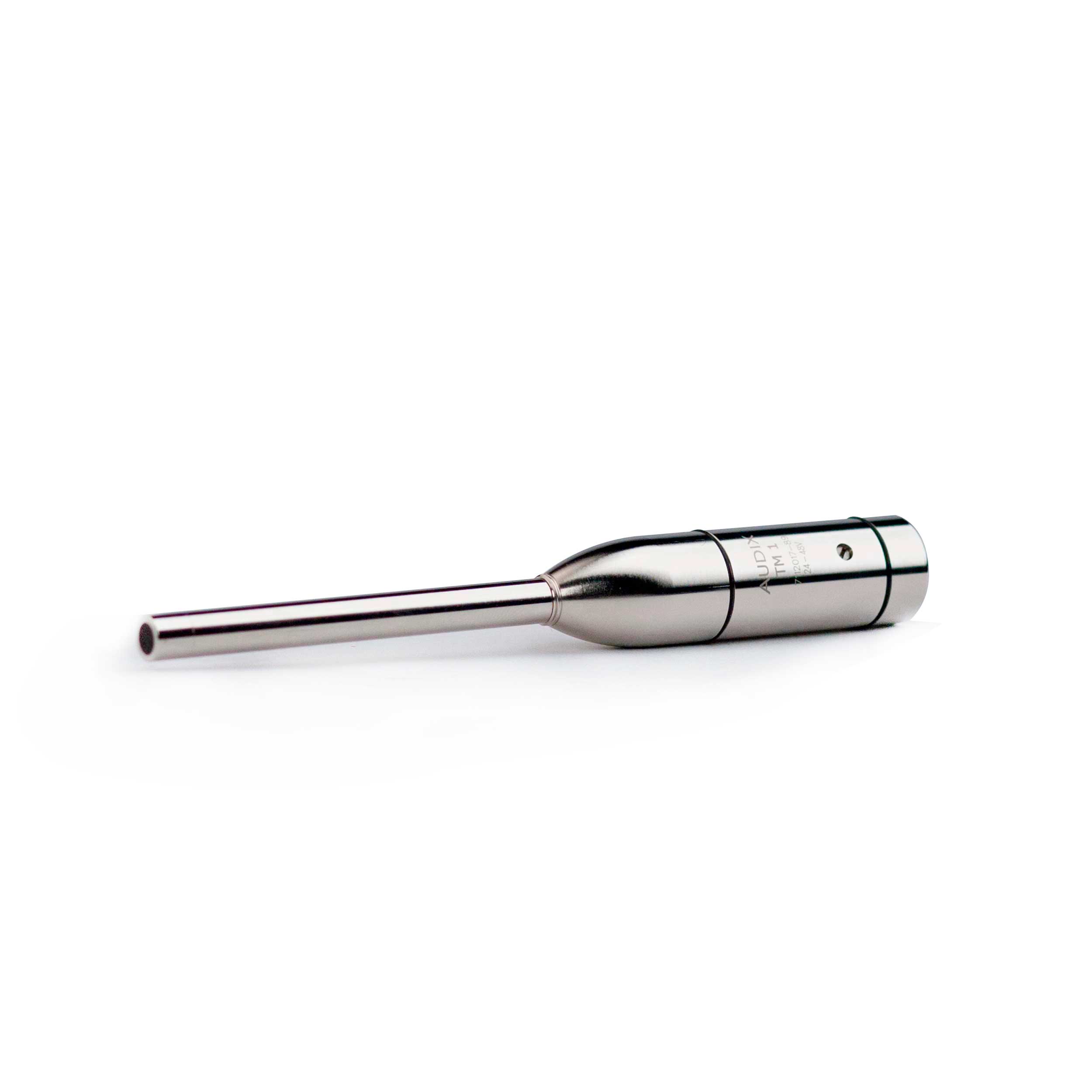

TM1

Omni-directional test and measurement microphone

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA.

MODEL VARIATIONS

TM1PLUS – includes calibration data file and sensitivity, threaded acoustic windscreen, and CA4231 machined calibration adapter *

*Bruel & Kjaer® 4231 sound level calibrator or equivalent

FEATURES

  • 6mm pre-polarized condenser capsule
  • Hi SPL response
  • Low noise electronics
  • Replaceable electronics and capsule

APPLICATIONS

  • Test and measurement
  • Real time analyzers
  • Room analysis software programs
  • Ambient room miking

SUPPLIED ACCESSORIES

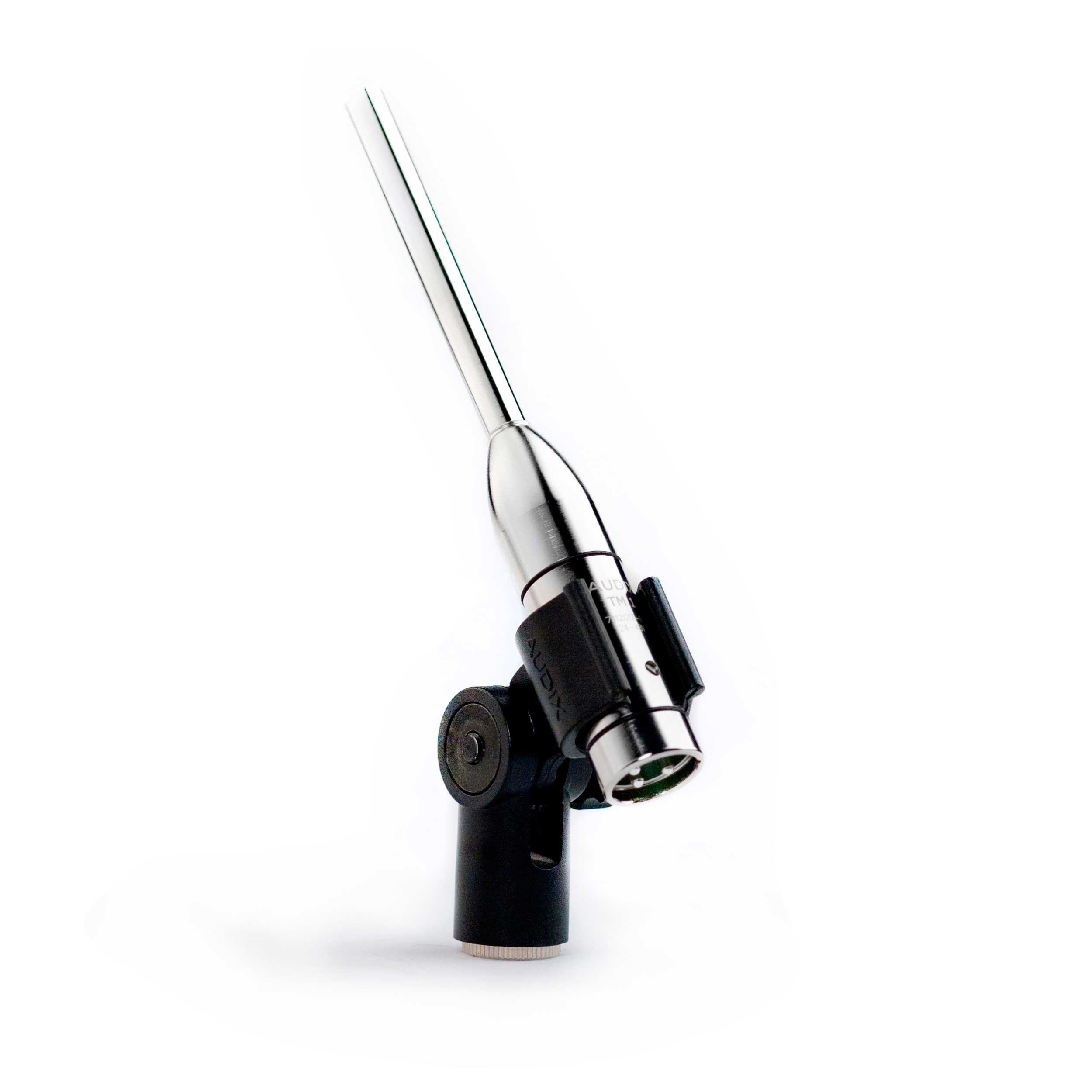

  • DCLIP - Heavy duty tension fi t mic clip
  • P1 - Carrying pouch

OPTIONAL ACCESSORIES

  • CBL20 - 20’ XLR-XLR quad conductor mic cable
  • SMT19 - Shock mount clip
  • SMT25 - Shock mount system
  • TM1CA4231 - Calibration adapter
  • TRIPOD - Tripod mic stand
  • WSTM1 - Threaded windscreen

SPECIFICATIONS

Transducer Type: Pre-polarized Condenser

Frequency Response: 20 Hz - 20 kHz +/-2 dB

Polar Pattern: Omni

Output Impedance: 200 ohms

Sensitivity: 6 mV / Pa @ 1k

Maximum SPL: 130 dB with distortion <1% 140 dB Max

Signal to Noise Ratio: 66 dB

Equivalent Noise Level: 28 dB (A weighted)

Dynamic Range: 112 dB

Connector: male XLR

Power Requirements: 24 - 48 V Phantom

Power Consumption: 8.9 mA @ 48 Volts

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: 4 piece precision machined brass / Nickel Finish

Weight: 132 g / 4.7 oz

Length: 150 mm / 5.9 in
