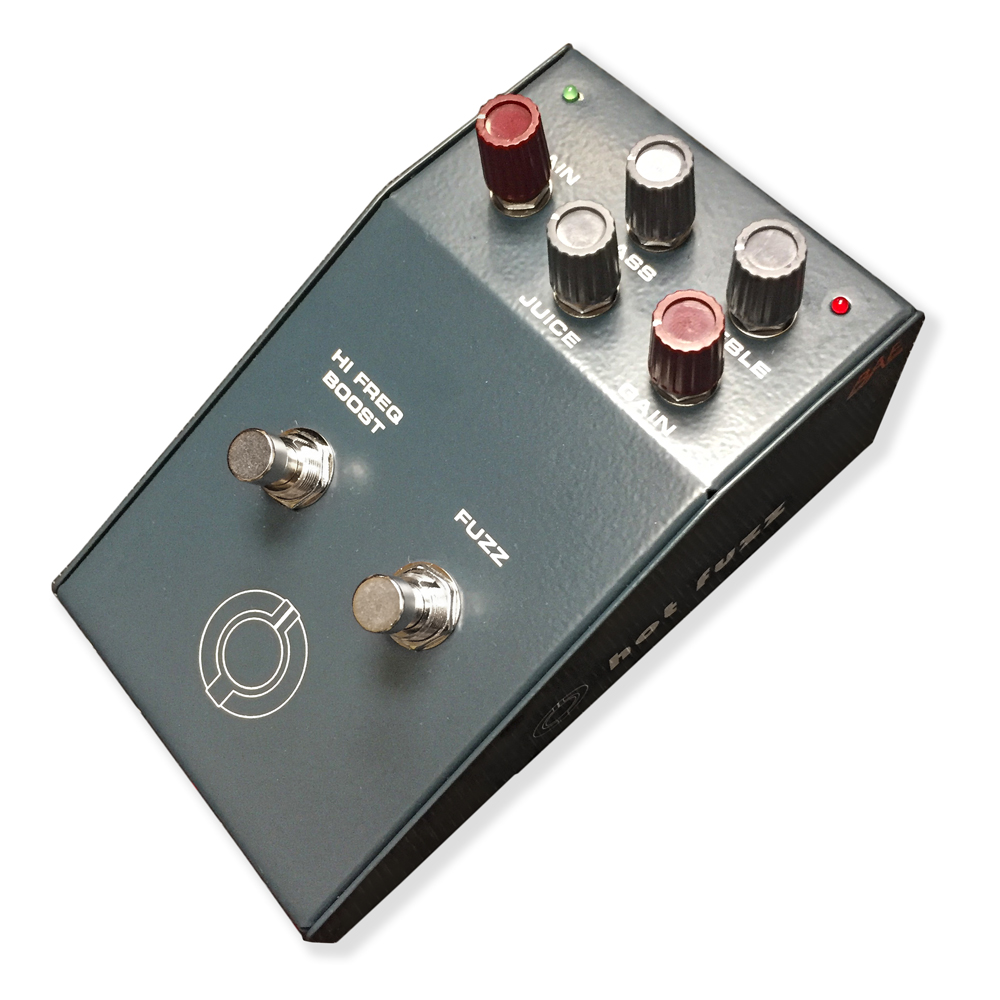

BAE Hot Fuzz

The Hot Fuzz pedal is essentially two pedals in one. The left side is a high frequency boost and the right side is an English 1970's style fuzz box. The Hot Fuzz can be used independently or in series to create a high frequency distortion.

• All Solid State design with 4 Bipolar, low noise transistors.
• Transistor Noise Figure <2 dB across the entire audio band.
• Individual sections for High Frequency Boost and Fuzz; each section has true bypass foot switch.
• High Frequency Boost: single stage. Up to 5kH
• Fuzz: triple stage.
• Sonically selected film, ceramic, mica, and electrolytic capacitors.

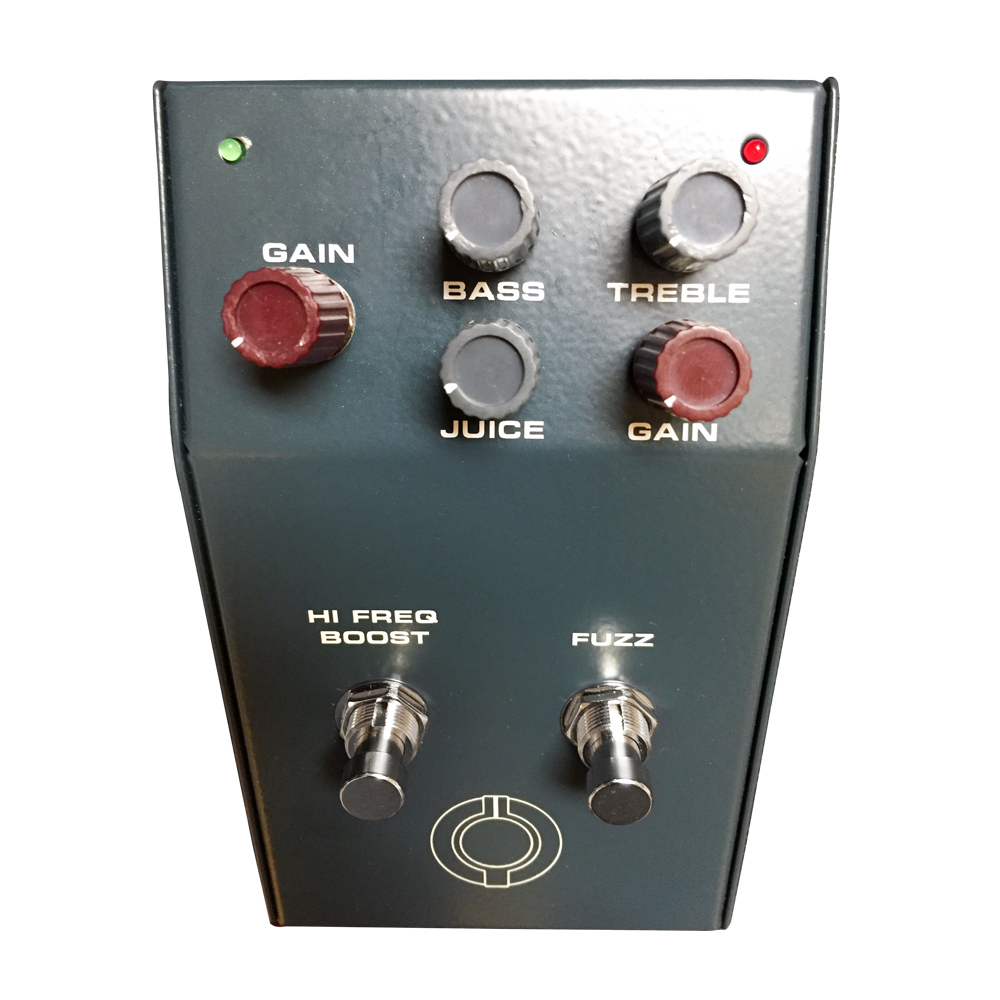

• Individual gain pots for each section. Fuzz section also has control pots for Juice, Bass, and Treble.
• Output fully adjustable from 0 to 3.5Vrms, referenced to a 40mV input signal and all controls full.
• Power: Single 9V battery; can be bypassed with external power supply and 2.5mm power jack - center Negative; battery need not be removed.
• Total Maximum current draw: <6 mA.
• Unit is powered when input is connected, whether LEDs are on or off. Remove plug from Input jack to conserve battery power.
• Handbuilt in the USA
• BAE build quality throughout.
