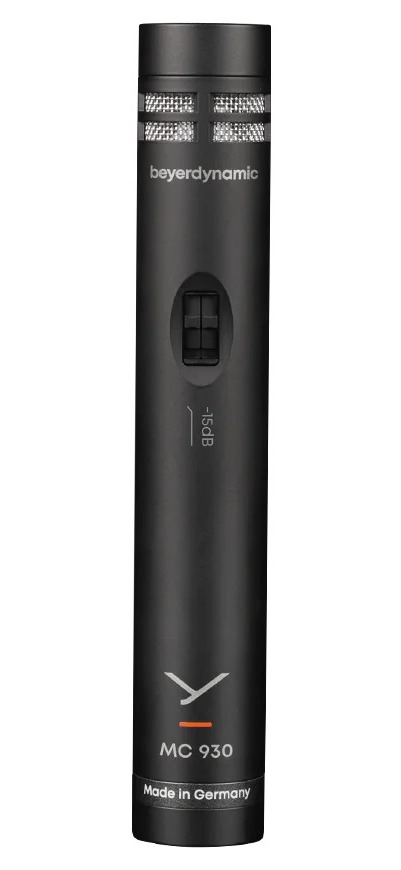

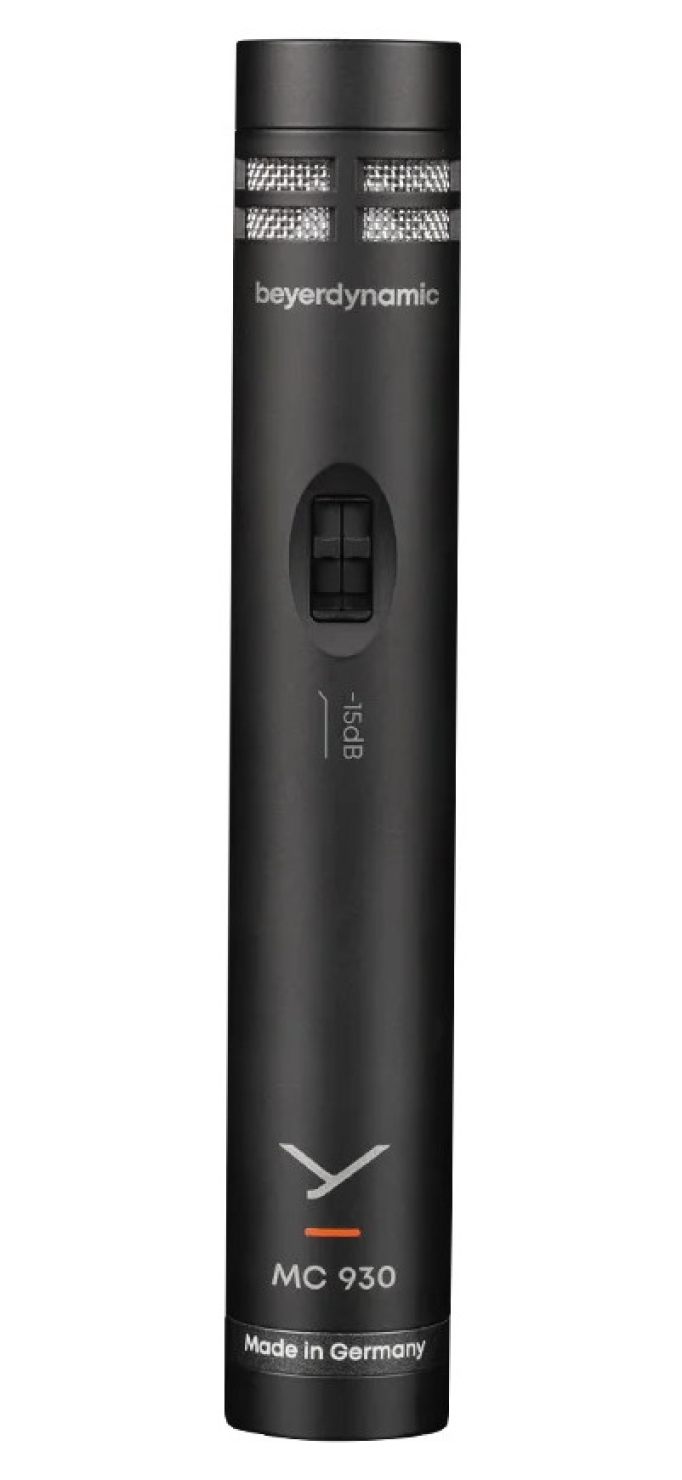

Beyerdynamic MC 930

TRUE CONDENSER MICROPHONE (CARDIOID)

The MC 930 is a flexible true condenser microphone with switchable -15 dB attenuation and low-cut filter. If you appreciate the clear sound and high impulse fidelity of small-diaphragm condenser microphones, the MC 930 is the right choice for you.

The MC 930 covers a wide range of application scenarios in the studio and on stage due to its compact design and the authentic and detailed sound character, whereby all post-processing options are also open. Whether for acoustic guitar, piano, hihat, overheads, choir, orchestra, voice or solo instruments of any kind, there is almost no sound source where the MC 930 is not convincing.

For speech and vocal recordings from a short distance as well as for outdoor recordings, we recommend the WS 101 wind shield.

FEATURES

• Flexible true condenser microphone
• Outstanding clear and detailed sound

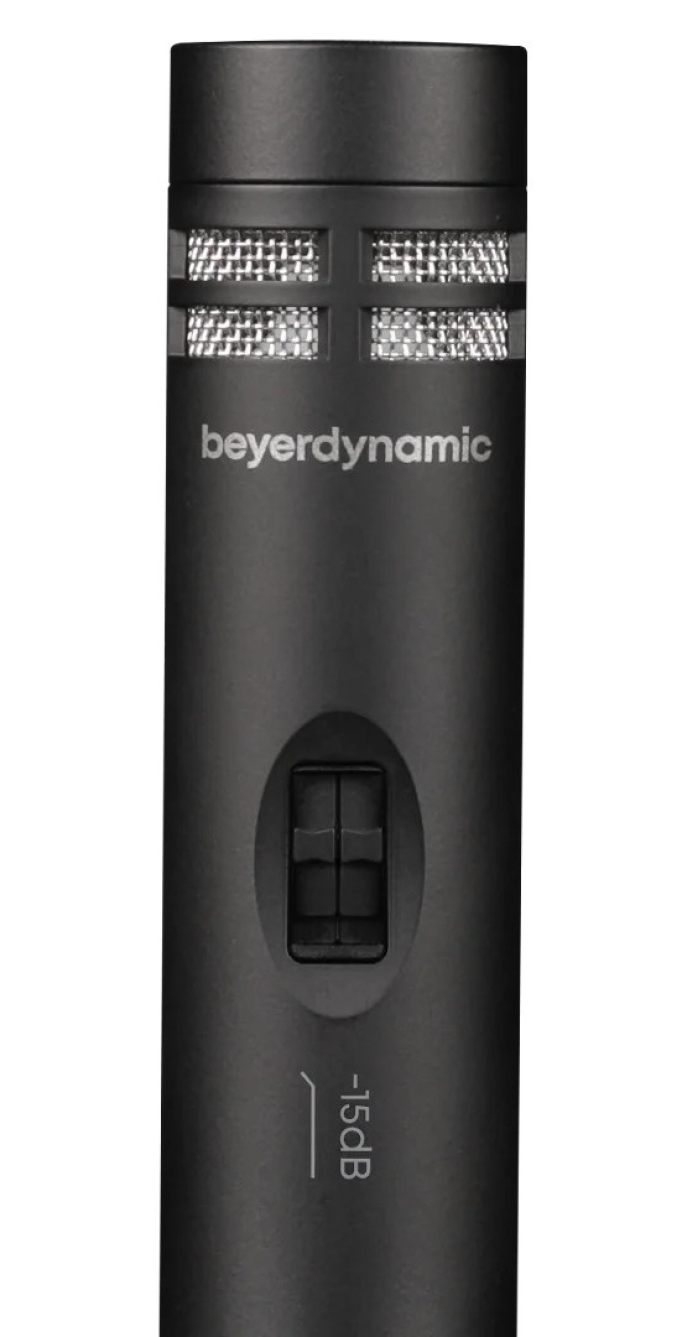

• Switchable pre-attenuation (-15dB) and low-cut filter
• High sensitivity
• High impulse fidelity and good transient response
• Handcrafted in Germany

VARIANTS

• MC 930 True condenser microphone supplied with MA-CL 21 microphone clamp

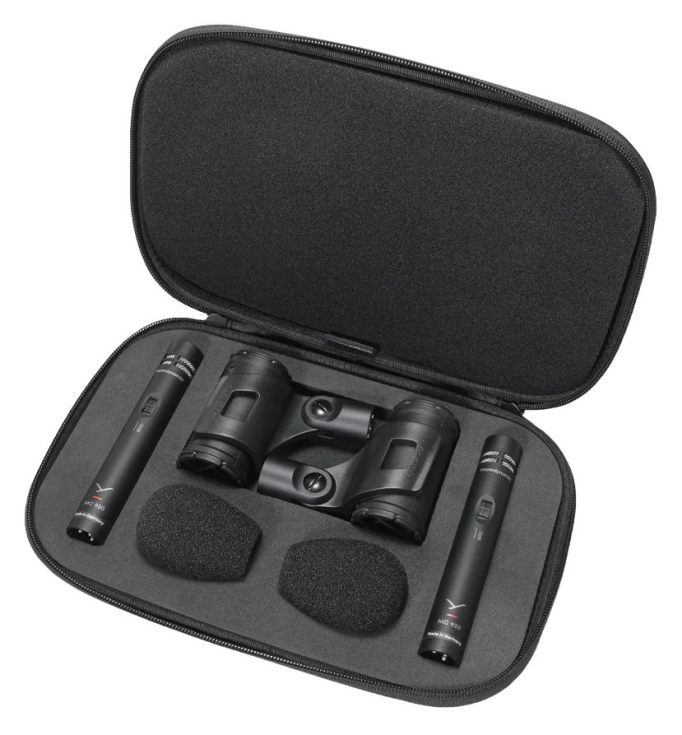

• MC 930 Stereo Set consisting of 2 matched MC 930, 2 x EA 19/25 elastic suspensions, 2 x MA-CL 36 microphone clamps, 2 x WS 53 wind shields and storage case

TECHNICAL SPECIFICATIONS

• Transducer type: True condenser
• Operating principle: Pressure gradient
• Frequency response: 40 - 20,000 Hz
• Polar pattern: Cardioid
• Sensitivity (0 dB = 1 V/Pa): 30 mV/Pa (= -30.5 dBV)
• Nominal impedance: 180 Ω
• Load impedance: 1000 Ω
• Max. SPL: at 1 kHz 125 dB, with pre-attenuation 140 dB
• Signal-to-noise ratio rel. to 1 Pa.: 71 dB
• A-weighted equivalent SPL: 16 dB
• Low-cut filter: switchable, 6 dB/octave at 250 Hz
• Power supply: 11 - 52 V phantom power
• Current consumption: 4.6 mA
• Connection: 3-pin XLR, male
• Dimensions: length 128 mm, diameter 21 mm
• Weight: 106 g
