Beyerdynamic TG D58

CONDENSER DRUM MICROPHONE (CARDIOID)

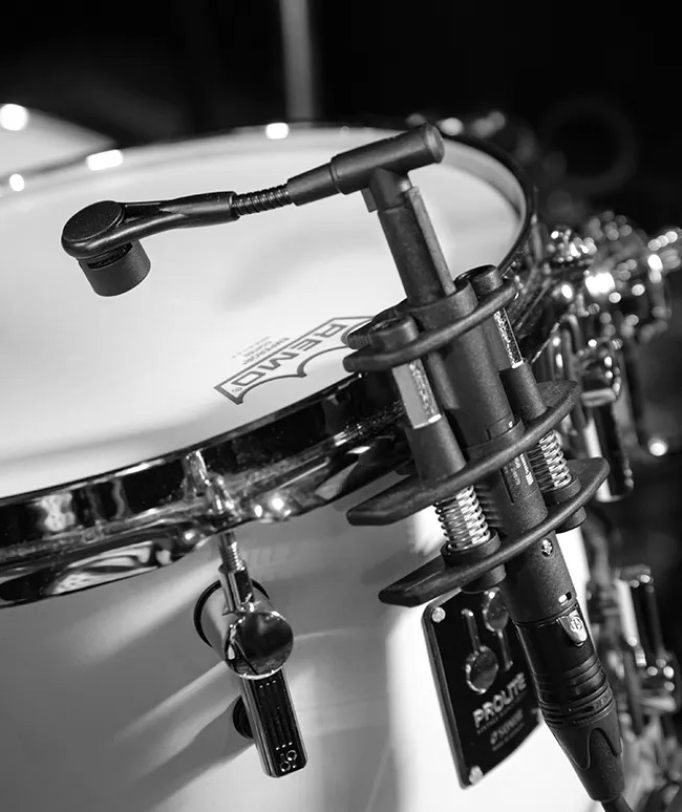

Whether with standing toms, snare drums or percussion instruments - with its patented clip-on mount and integrated pre-amplifier, the TG D58 condenser microphone is mounted and ready in a flash. The expanded frequency range ensures faithful reproduction of all drum types and the 20 mm long flexible gooseneck in conjunction with the swivel mount allow it to be optimally positioned relative to the sound source. An elastic capsule suspension on the capsule housing protects against damage from drumstick strikes.

FEATURES

• Short, flexible gooseneck with horizontal swivel joint for optimum positioning
• Rugged construction with rubber shock-mounted microphone capsule
• Patented microphone clamp with integrated pre-amp and XLR connection
• No disturbing cable between microphone head and pre-amp
• Cardioid polar pattern for high-gain-before feedback
• Wide transmission range

TECHNICAL SPECIFICATIONS

• Transducer type: Condenser (back electret)
• Operating principle: Pressure gradient
• Polar pattern: Cardioid
• Frequency response:
  Close miking 20 - 20,000 Hz
  Distant miking (measured at 1 m) 35 - 20,000 Hz
• Open circuit voltage: 5 mV/Pa (-46 dBV) ±2.5 dB
• Nominal impedance: 200 Ω
• Load impedance: ≥ 1 kΩ
• Max. SPL at 24 V and 48 V phantom power: 140 dB
• S/N ratio: 59 dB [CCIR; Q-Peak], 70 dB [A; RMS]
• Equivalent SPL: 35 dB [CCIR; Q-Peak], 24 dB [A; RMS]
• Power supply: Phantom power: 12 - 48 V (recommended: 48 V)
• Power consumption: 4.7 mA
• Connection: XLR, 3-pin, male
• Dimensions: clamp (w x h) 85 x 118 mm, gooseneck length 20 mm
• Weight: approx. 140 g
