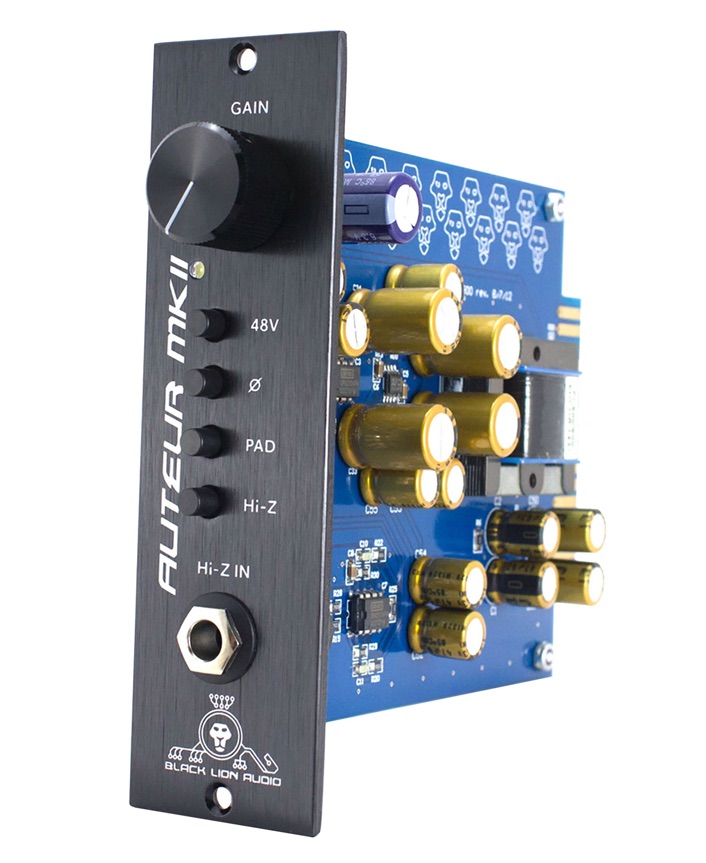

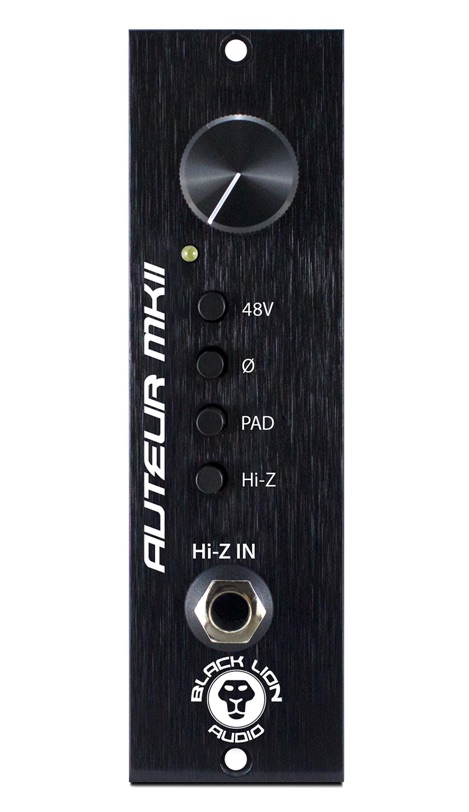

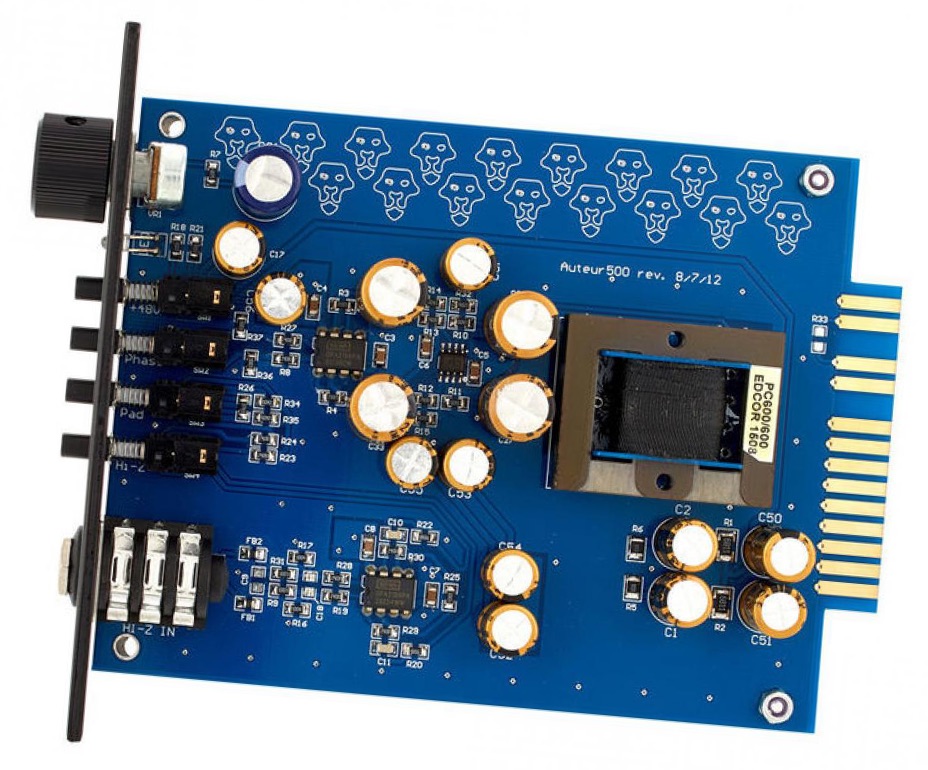

Black Lion Audio Auteur MKII 500 Mic Pre

Features

• 500 Series format (500 series rack required)
• Single Channel
• Ultra High-Speed Input Stage
• Edcor Output Transformer
• 67dB Gain
• Phantom Power
• Phase Switch
• 13dBu Pad
• Hi-Z Input

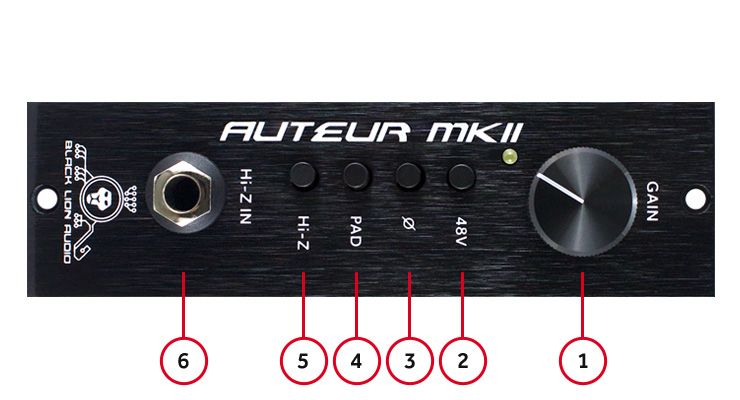

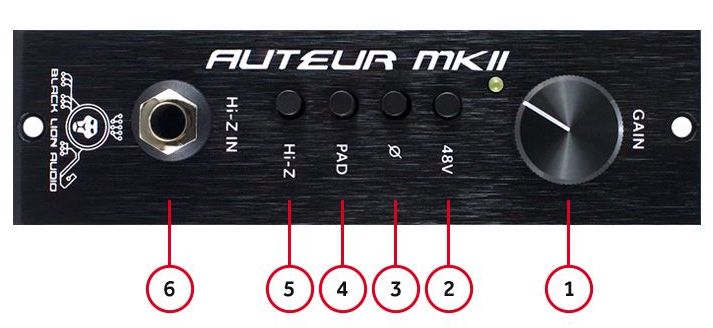

Front

1. GAIN: clockwise rotation yields an increase in input signal amplitude, counterclockwise rotation yields a decrease in input signal amplitude
2. 48v: engage to turn phantom power on, disengage to turn phantom power off
3. PHASE (Ø): engage to adjust input signal polarity by 180°, disengage to leave input signal polarity unchanged
4. PAD: engage to reduce input signal amplitude by 13dBu, disengage to leave input signal amplitude unchanged
5. Hi-Z: engage to use front panel Hi-Z IN as preamp source, disengage to use 500 rack XLR input as preamp source

Click here for technical specifications, downloads and more...
