Chameleon Labs 7721 Stereo VCA Compressor

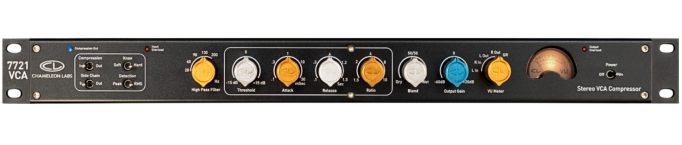

MEET THE 7721

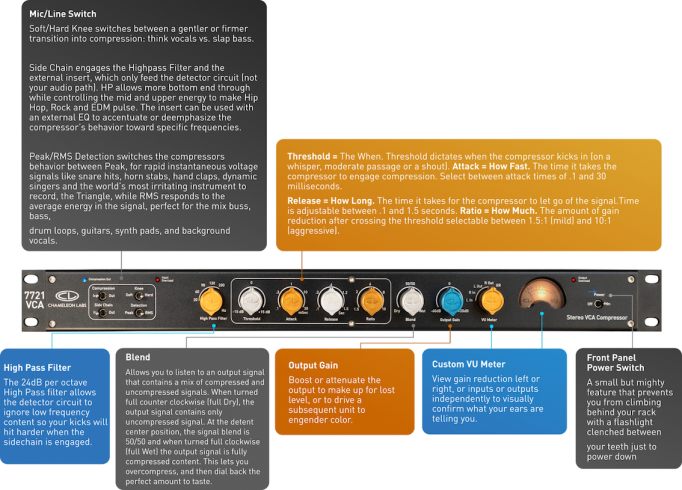

The Chameleon Labs 7721 provides all the classic controls alongside additional potent artillery generally only deployed by esoteric compressors. Peak/RMS Detection toggles the compressors behavior between Peak, for rapid instantaneous voltage signals like snare hits, horn stabs, hand claps, dynamic singers and the world’s most irritating instrument to record, the Triangle, while RMS responds to the average energy in the signal, perfect for the mix buss, bass, drum loops, guitars and background vocals. Side Chain engages the Highpass Filter which only feeds the detector circuit (not your audio path) thus letting more bottom end through while controlling the mid and upper energy to make Hip Hop, Rock and EDM pulse. Dry/Wet Blend lets you mix the original signal with the compressed signal "for instant parallel-like processing." This will preserve the transients, while simultaneously taming the track. Soft/Hard Knee lets you switch between a gentler compression onset and a faster onset more akin to limiting. Experiment and trust your ears...and ultimately, how it makes you feel.

FEATURING

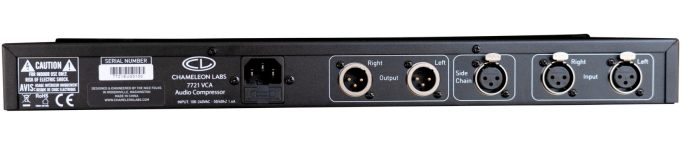

• Stereo Input and Output
• Voltage Control Amplifier (VCA) Based Detection Circuit
• Side Chain Input for Secondary Trigger Source
• VU Meter Monitors Input, Output, and Gain Reduction
• Peak or RMS Detection
• Selectable High Pass Filter
• Threshold, Attack, Release and Gain Ratio Controls
• Fully Balanced Output Stage
• Blend Knob for the Perfect Amount of Compression
• Internal Universal Power Supply

Designed and built in North America
