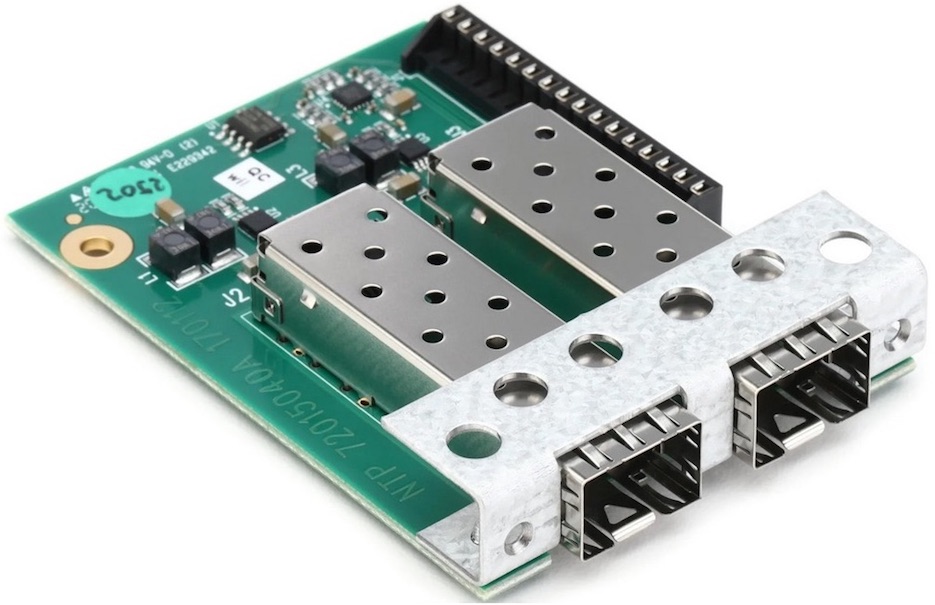

Module voor DAD hardware om een supersnelle verbinding tot stand te brengen

Price on
demand Gold client price available!
Click here and becom a Gold Client

Quantity

Add this product to your quotation.
It will be ordered for you.
Neem contact us for delivery times

Add to quotation

Leverings- en Retourbeleid

Questions? Seen a better price?

Call +31 (0) 512 - 340457 or contact us!

Product omschrijving

DAD DADlink

THE FASTEST TRACK FROM DAD TO DAD

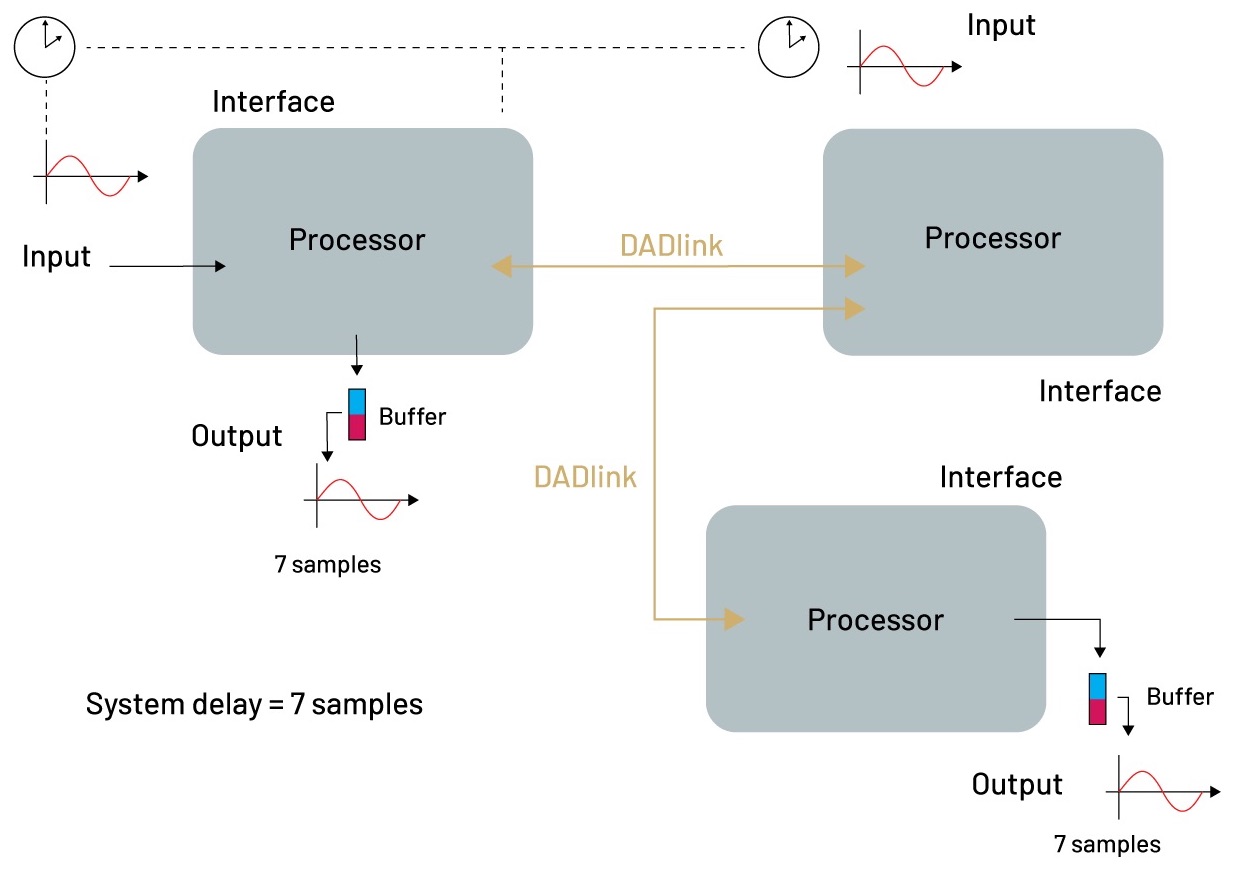

A wealth of channels with zero latency at any samplerate.

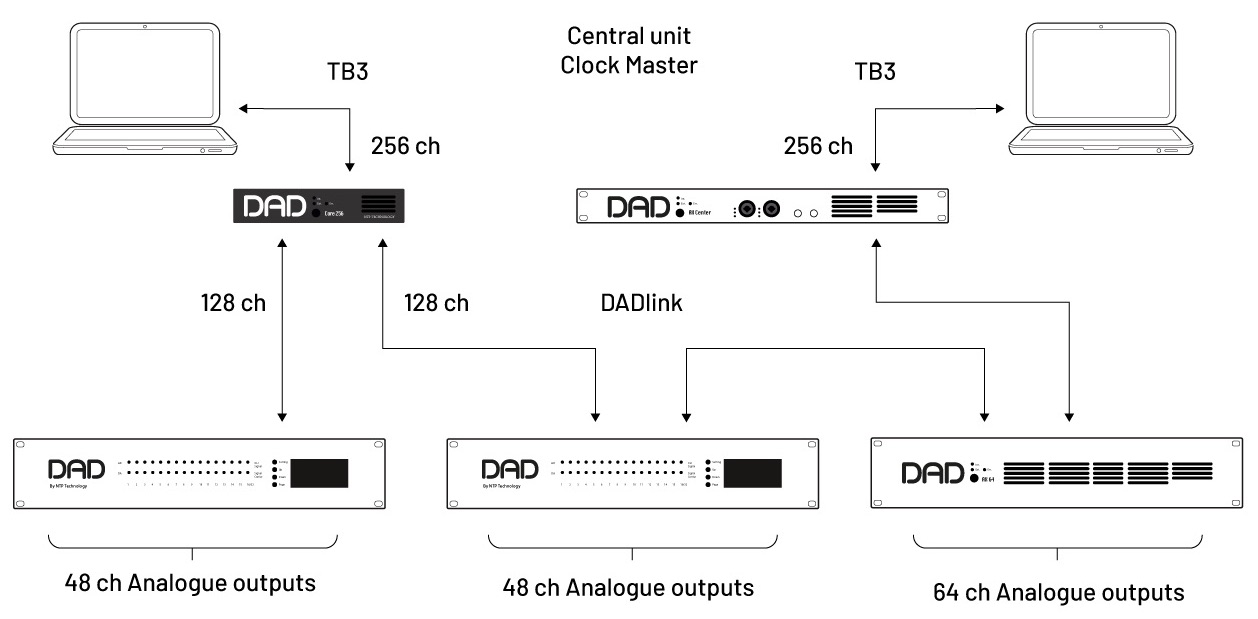

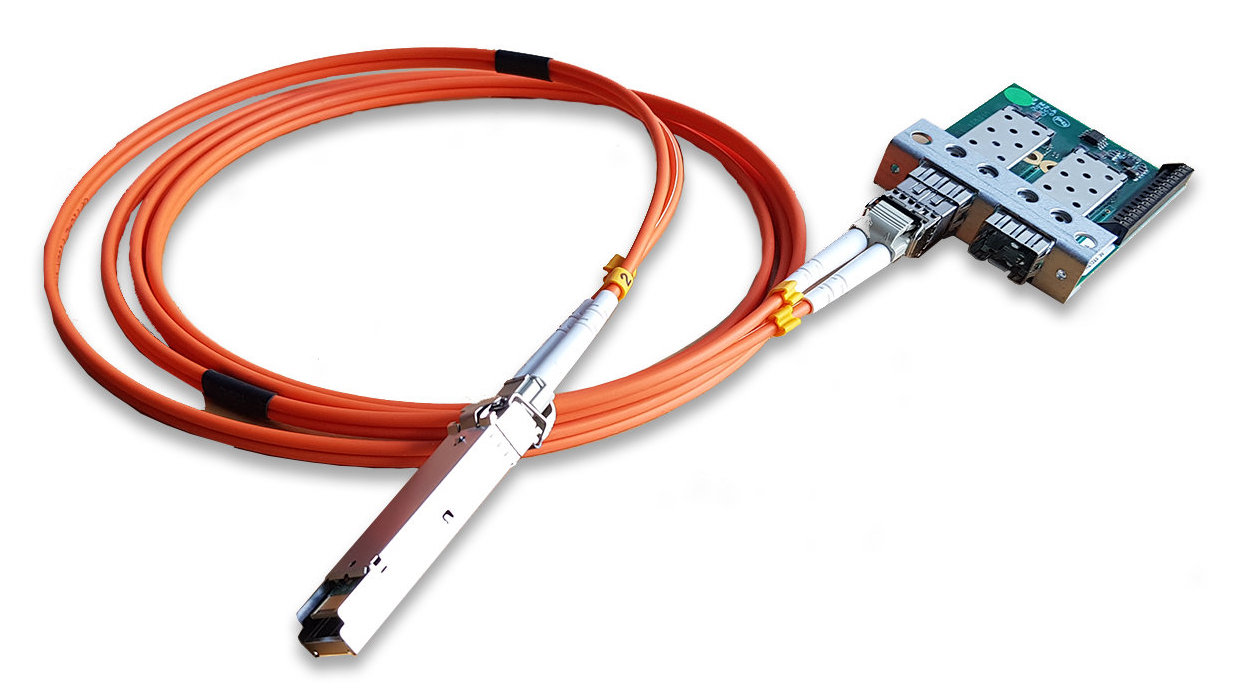

DADlink is a proprietary audio and data format that establishes a super-fast highway between DADlink-compatible units such as AX64, AX Center, Core 256, AX32, and more. Depending on the sample rate, you can transfer up to 256 bidirectional channels between units at zero latency on two optical fibers. Sample rates from 44.1kHz to 384kHz are supported, and the dynamic range is a staggering 237 dB, ensuring a fast and reliable transfer at the highest audio quality imaginable. In fact, DADlink is not only the fastest track from DAD to DAD units, as some units by NTP Technology are also compatible with the DADlink format.

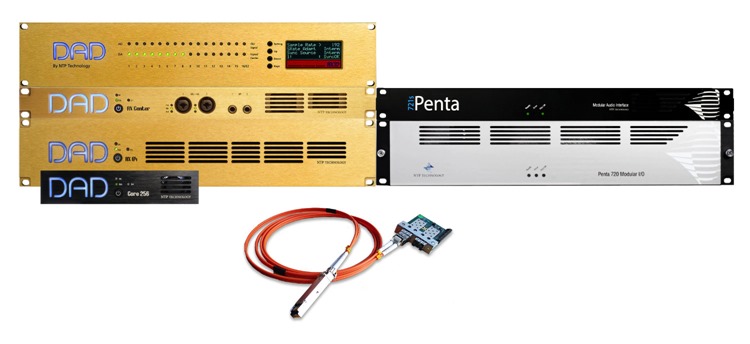

DADlink works with:

AX64
AX Center
Core 256
AX32*
Penta 720*
Penta 721s Series*

* Requires the most recent firmware.

Samplerates & Channel Counts

The DADlink format supports the following samplerates: 44.1kHz, 48khZ, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8.8kHz and 384kHz. The maximum number of bidirectional channels to run via DADlink depends on the samplerate you are using – lower samplesrates equals higher channel counts.

44.1kHz / 48kHz = 128 ch.
88.2kHz / 96kHz = 64 ch.
176.4kHz / 192k = 32 ch.
352.8.8kHz / 384kHz = 16 ch.
