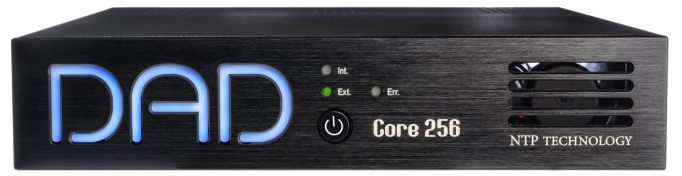

DAD Core 256 Digital Audio Interface

THE TINY LIVE SOUND HERO

Front of House. Monitor. Playback.

Core 256 may not take up much space, but the power you can squeeze out of this little box might just make your jaw drop to the floor. With tons of channels, a wide palette of digital connectivity, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and for just about any application.

However, there is one application that should be emphasized in particular: Core 256 is simply the perfect Dante and MADI interface for any demanding live sound application – be it FOH, Monitor Mix or redundant Playback Station powered by the DAD Control | Pack functionality.

But of course, it can also do other things such as sharing a 1U rack shelf with a Mac Mini running Dolby Atmos® Renderer, Dolby Atmos® Production Suite or Dolby Atmos® Mastering Suite.

For live sound, as well as immersive audio post production facilities, Core 256 will represent the missing link that streamlines and optimizes any multichannel workflows seamlessly.

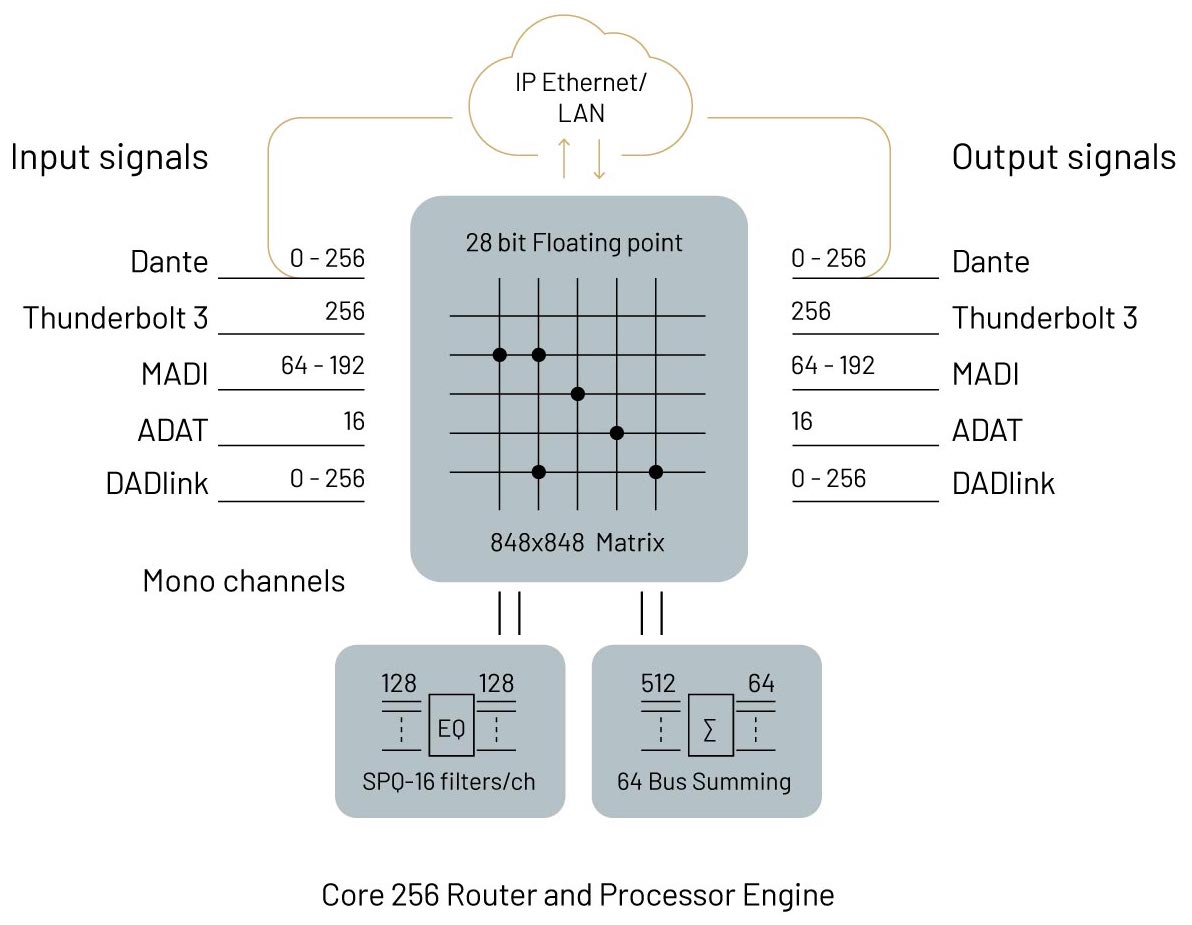

Overview

848 Input and Output Channels
Digital Router and Monitoring Interface
Thunderbolt 3 I/O (256 Ch.)
Dante AoIP I/O (256 Ch.)
MADI BNC I/O (64 Ch.)
MADI SFP I/O Module Option Available (128 Ch. – SFP not included)
ADAT dual TosLink I/O (16 Ch.)
512×64 ch. PRO | MON Summing and Speaker EQ Processing
Sample rates supported from 44.1 to 384 kHz

Features

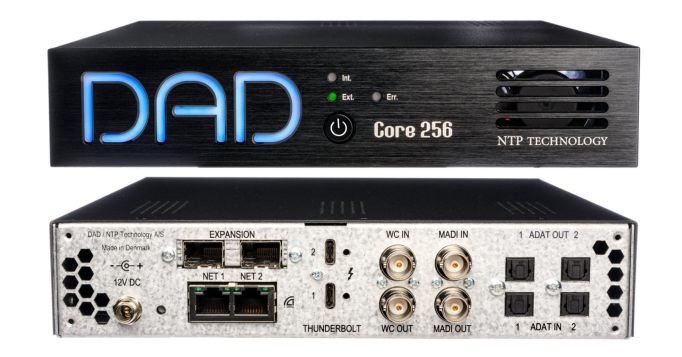

The basic I/O configuration for the Core 256 interface is:

2 Thunderbolt 3 Ports (each w. 15W power)
256 Bidirectional Channels at 48 & 96 kHz
ASIO / Core Audio Thunderbolt PCIe drivers
MADI/BNC-Optional 2 x SFP (LC fiber or HD/BNC coax)
ADAT /Lightpipe (16 Ch.)
DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96 kHz, 64 Ch. at 192 kHz (IP Core)
WC I/O
SPQ: 64 Ch. with 16 Filters
PRO | MON Support
Summing Processor 64 Output / 512 Input Busses
Internal Router: 1500 x 1500
28 bit Floating Point Processing
Avid Eucon Enabled Devices via DADman
APPLE Silicon M1 and Intel Compatible Software
Control via Ethernet or Thunderbolt Connection
12V DC External Power (Max 60W)
½ Rack Unit 1U Height

Specifications

2 x Thunderbolt 3 Ports w. 15W Power Source Each
256 Bidirectional Channels at 44.1/48 kHz
256 Bidirectional Channels at 88.2/96 kHz
128 Channels at 192 kHz
64 Channels at 384 kHz

Audio Drivers

macOS

Core Audio Thunder|Core Audio Driver
Compatible with Intel and Apple Silicon processors, as well as Big Sur macOS and forward
Core Audio Aggregates for More Applications I/O Control Connection for DADman
Control Connection for DADman

Windows

ASIO Thunder|Core Audio Driver
Compatible with Windows 10 and forward
One Application Can Connect to the Asio Driver
Control Connection for DADman

Key Applications

Live Sound
House of Worship
Immersive Audio
Post & Film
