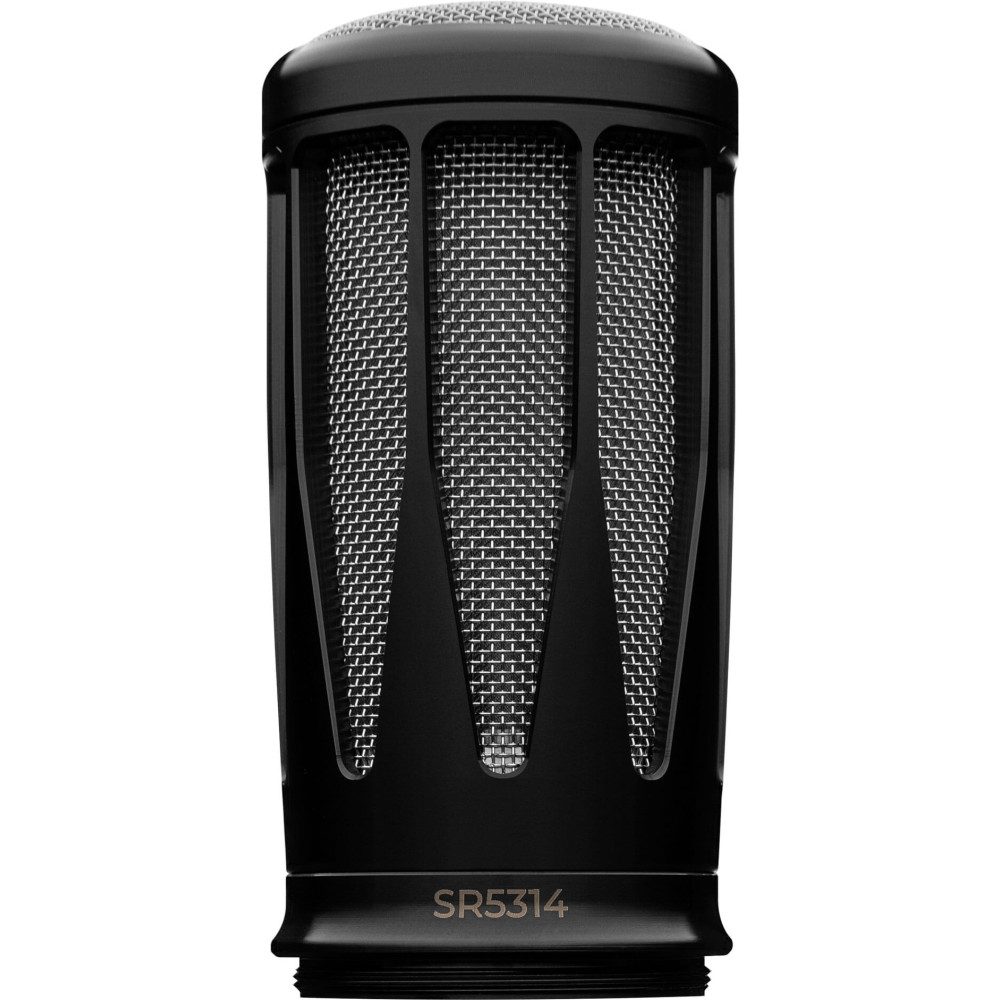

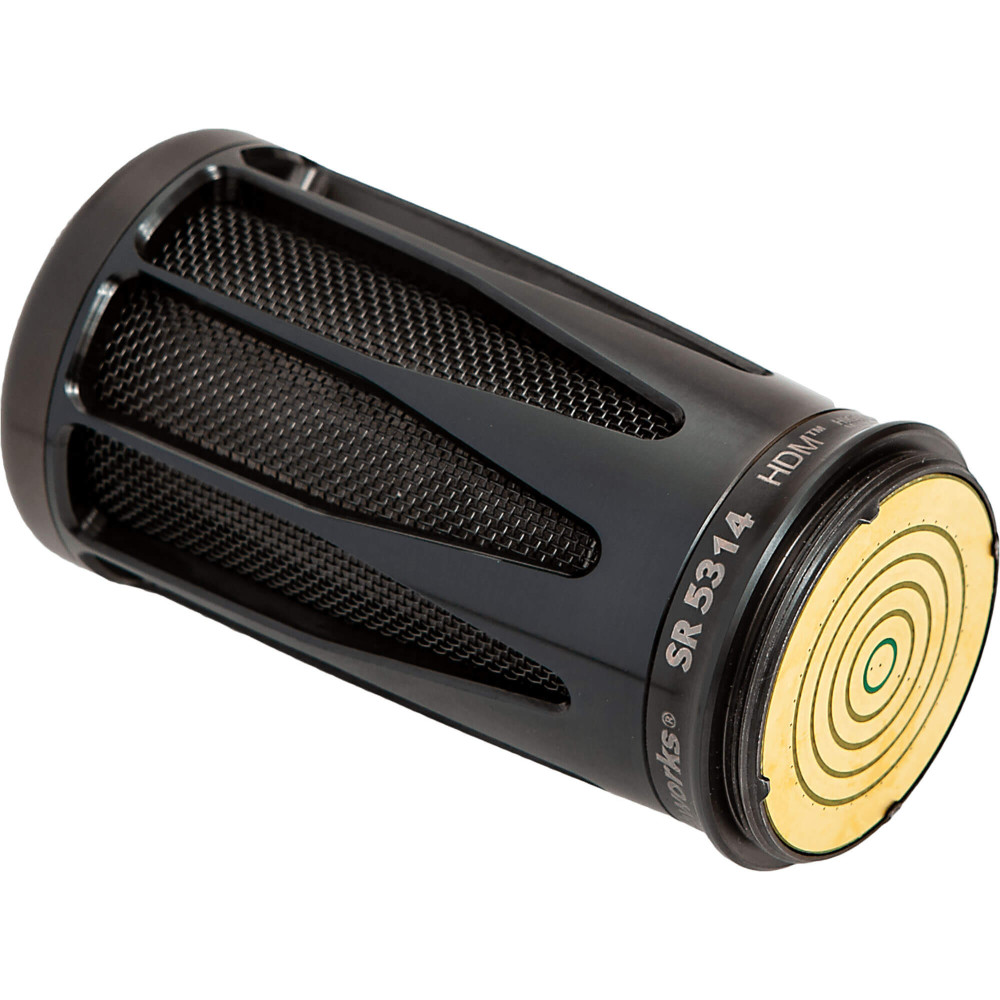

Earthworks Audio SR 5314 wireless capsule

Earthworks Audio SR 5314 wireless capsule

Draadloze cardioïde microfooncapsule voor Sennheiser

SR5314-B & SR5314-SB

Price on
demand Gold client price available!
Click here and becom a Gold Client

Quantity

Add this product to your quotation.
It will be ordered for you.
Neem contact us for delivery times

Add to quotation

Leverings- en Retourbeleid

Questions? Seen a better price?

Call +31 (0) 512 - 340457 or contact us!

Product omschrijving

WIRELESS CAPSULE FOR SENNHEISER

SR5314

Commanding presence.
Crystal clear vocals.

The Fastest Microphone Capsule

Performance at the speed of sound, designed for massive headroom and full dynamic range. Formatted for use with select Sennheiser wireless microphone base, the Earthworks SR5314 captures natural, rich-sounding vocals – delivering articulate low end close up without thinning out with distance.

STUDIO CONTROL ON PAGE. Mitigate bleed and feedback with unparalleled off-axis sound rejection. WIRELESS FLEXIBILITY. Whether performing for an intimate live streaming session or for a local gig, work the stage while sounding like you’re singing through a wired handheld. FASTER SOUNDCHECKS. Clean impulse response combined with a textbook cardioid pattern equals better monitor mixes.

COMPATIBILITY:

The SR5314 is designed for full compatibility with Sennheiser wireless handheld transmitters in the 2000 Series, Evolution G4 500, 300 and 100 Series, & Digital 9000 and 6000 Series.

SPECIFICATIONS:

Frequency Response: 20Hz - 30kHz
Polar Pattern: Cardioid
Sensitivity: 6.5 mV/Pa (-43.7 dBV/Pa)
Power Requirements: 5V to 12VDC using rings 3 & 6 on 6-ring concentric connector
Peak Acoustic Input: 133 dB SPL @ 6V (depending
on transmitter supply voltage)
Output: Ring 1 & 2 on 6-ring concentric connector
Output Impedance: 0.1Ω unbalanced (ring 1 & 2)
Noise: 23dBA @ capsule output (A weighted)
Threads: M36-0.75 thread pitch to match compatible Sennheiser wireless handheld transmitters
Dimensions L x D: Length: 3.25” (82.6mm). Dia. max: 1.6” (40.6mm). Dia. min: 1.46” (37mm).
Weight : 0.4 lbs. (0.18 kg)

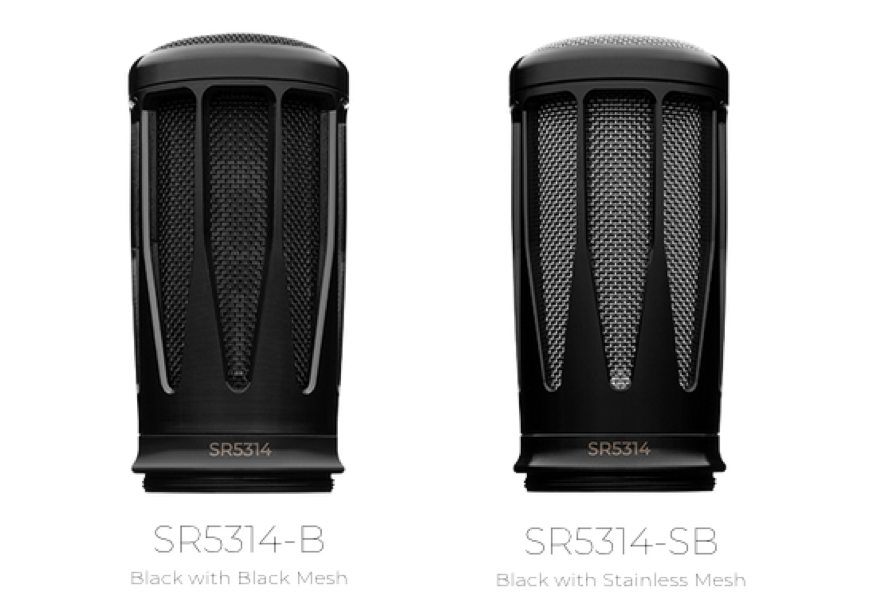

What’s your color?

Available in:

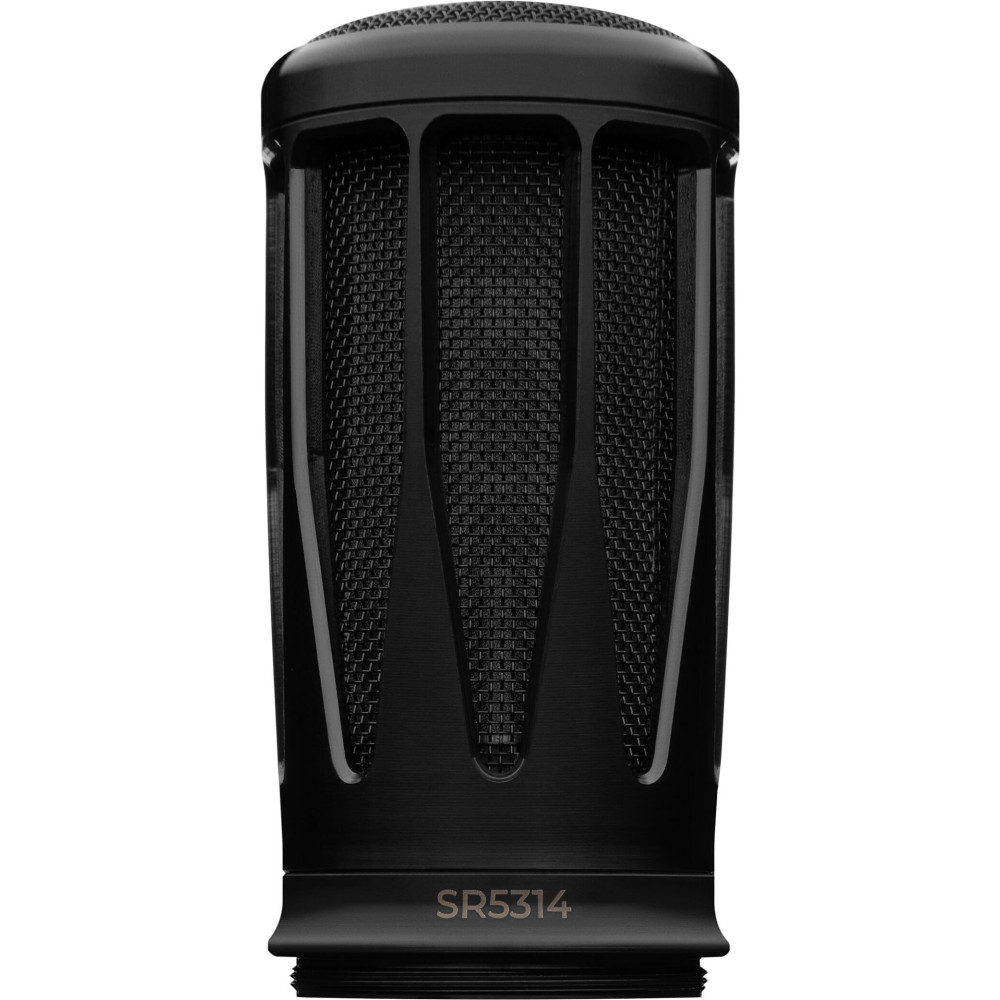

Black with Black Mesh (SR5314-B)

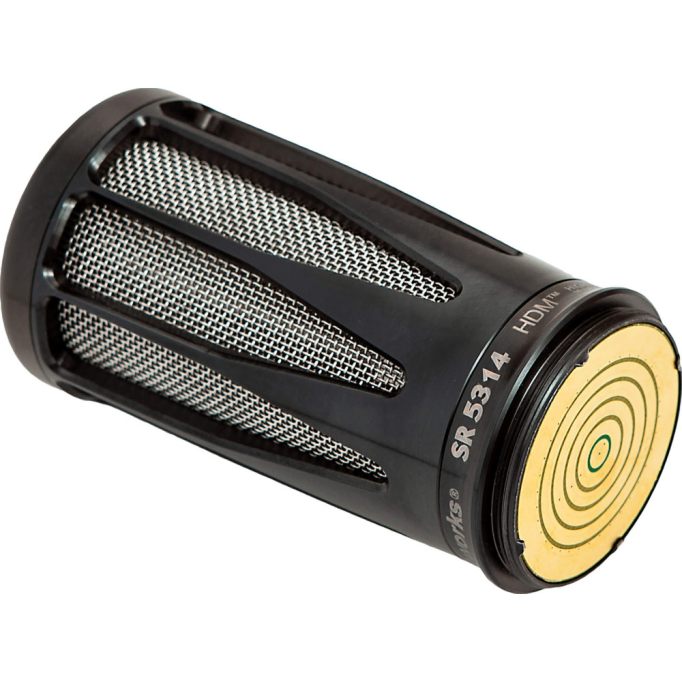

Black with Stainless Mesh (SR5314-SB)
