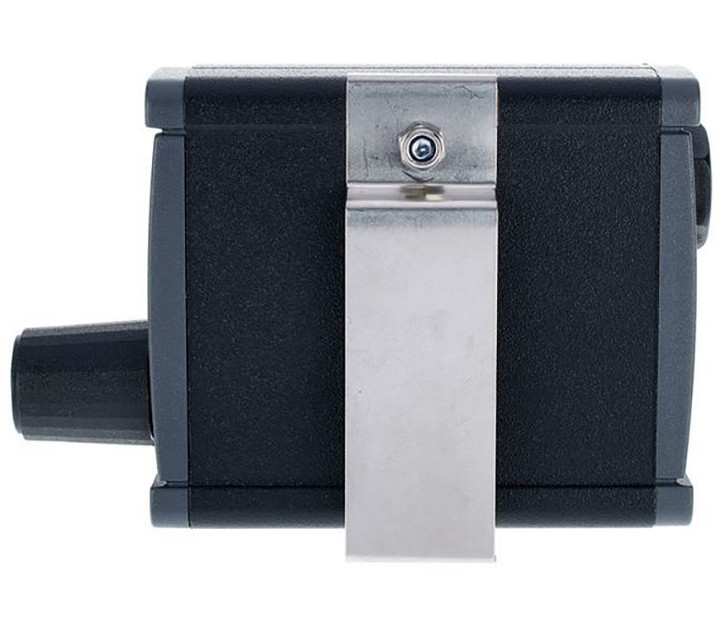

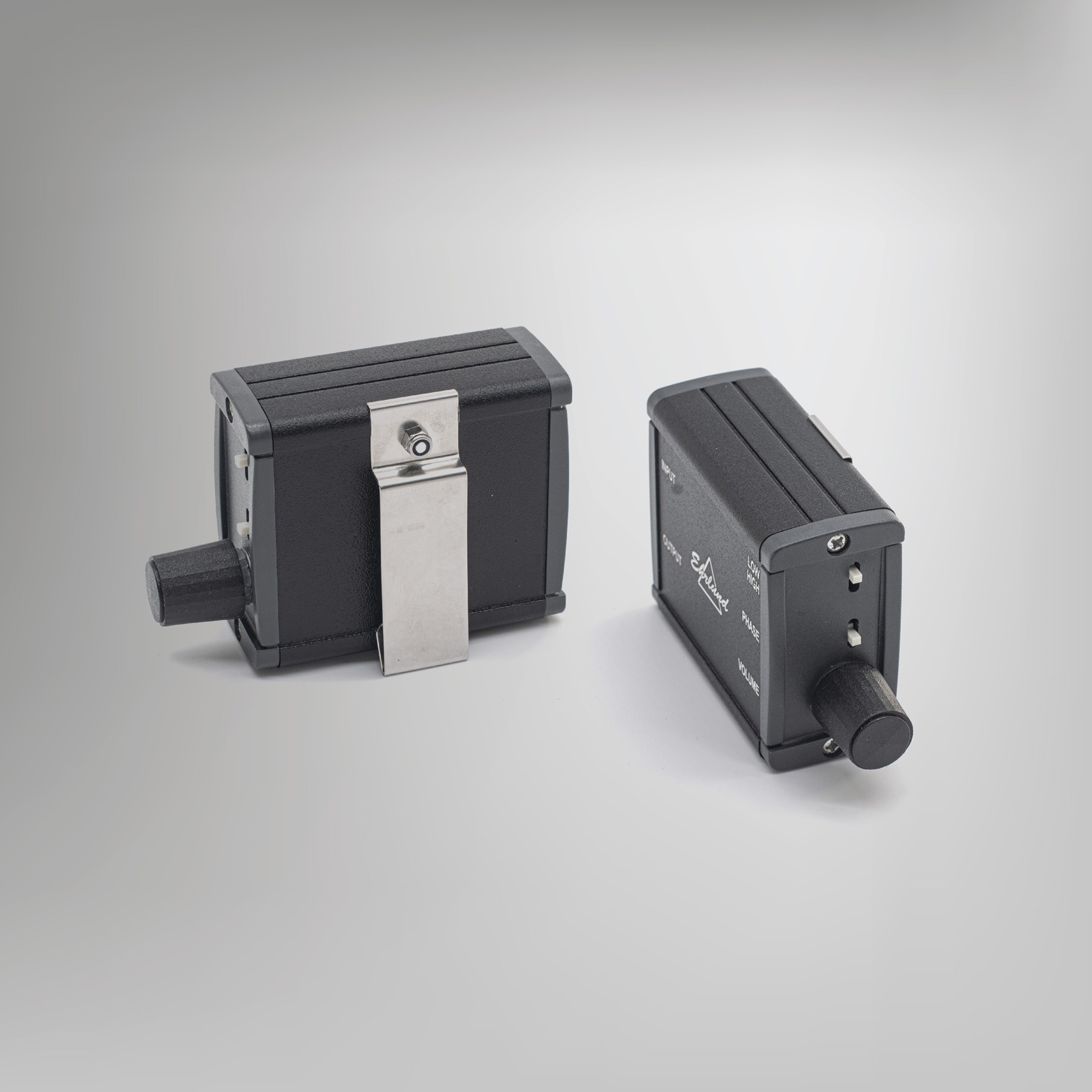

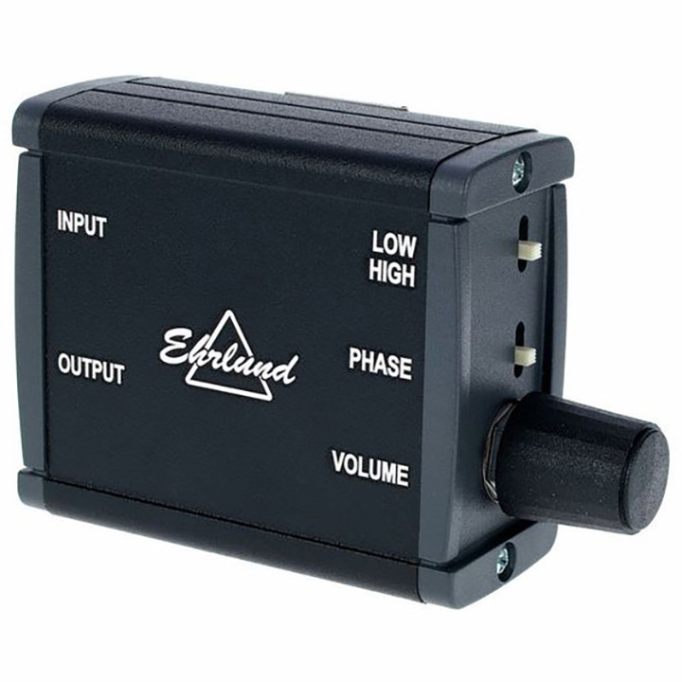

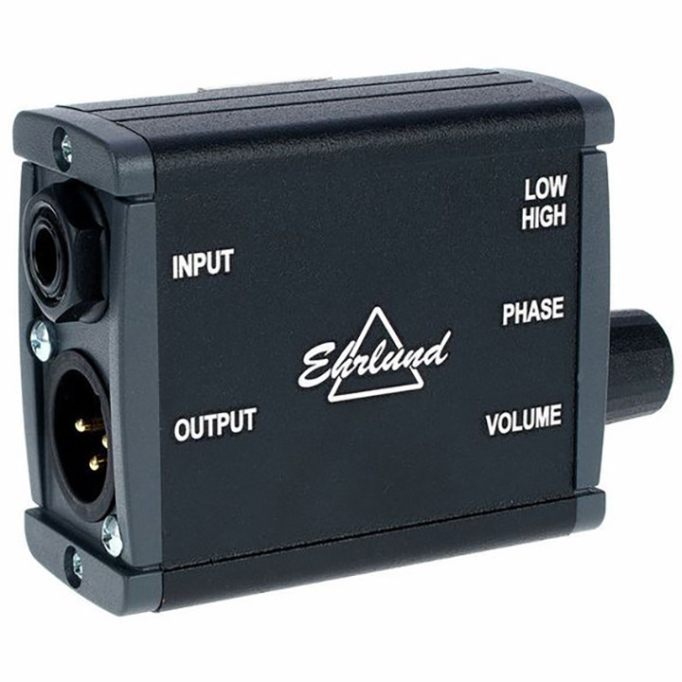

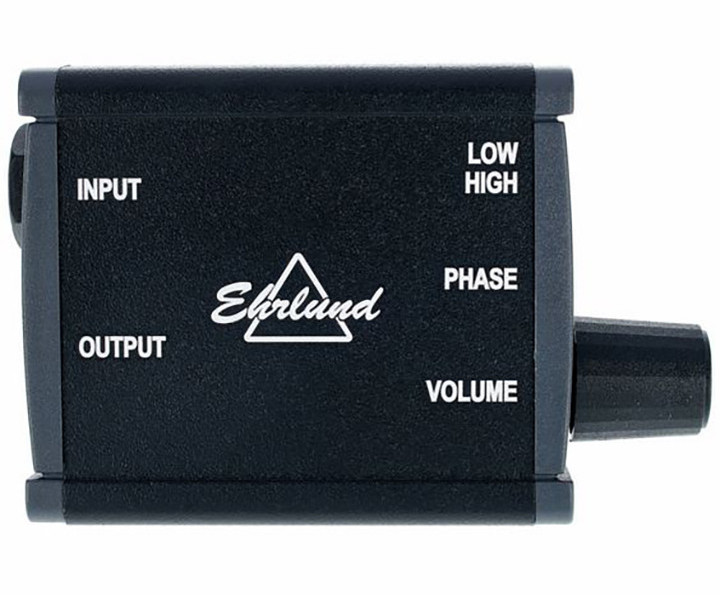

Ehrlund Microphones EAP Preamp Phantom

Ehrlund Microphones EAP Preamp Phantom

Voorversterker ontwikkeld als perfecte aanvulling op de Ehrlund EAP Acoustic Pickup, werkt op 48V fantoomvoeding van interface of mixer

EHR-EAP-PREPHANTOM

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Ehrlund Microphones EAP Preamp Phantom (XLR)

Ehrlund preamps

Ehrlund Preamplifiers are developed to perfectly complement the Ehrlund Acoustic Pickup. They feature extremely low self-noise, low power consumption, and a clean, linear response that preserves the natural character of your instrument. The preamps work seamlessly with common accessories such as foot pedals, loopers, effects units, and transformer-equipped DI boxes. A built-in belt clip allows easy attachment to your waistband for practical, hands-free use. Controls include adjustable volume, an amplification switch, and a phase adjustment switch—giving you flexibility in any setup. Like all Ehrlund products, the preamps are developed and manufactured in Sweden.

Preamp Portable is powered by a 9 V battery (included) and offers an operating life of at least 600 hours. It automatically switches off when the output cable is disconnected.
Preamp Phantom is powered by +48 V phantom power from your audio interface or mixer. Remember to activate phantom power on the connected device.

FEATURES

Linear frequency response
Low noise amplifier
Very natural and true to the input source
Close to zero “coloration” of the sound
Input: 1 x 6.3 mm (¼ in) mono tele jack
Output: 1 x 3-Pin XLR female
Preamp Phantom gets power from +48V Phantom feed at the audio interface
Phase switch 0/180°
HIGH/LOW switch to “pad” the input level from the pickup
Adjustable volume knob

TECHNICAL SPECIFICATIONS PREAMP PHANTOM

Input Impedance: 4.7 MΩ
Frequency Response: 5 Hz - 160 kHz ± 1 dB
Current Consumption: 2.5 mA
Dimensions: 92 x 60 x 37 mm
Weight: 105 g (3.70 oz)
Supply Voltage: +48V Phantom
Connections: Input 6.3 mm (¼ in) mono tele jack / Output 3-Pin XLR female

The EAP Preamp and the EAP Pickup are sold separately or as a kit (EAP System).
