Ehrlund Microphones EHR-M

Studio excellence, made honest

The EHR-M is a truly transparent large-diaphragm condenser microphone, carefully developed for studio work where nothing should stand between the source and the listener. The goal was simple: capture sound exactly as it is meant to be heard—clean, open, and alive.

At the heart of the EHR-M is Ehrlunds’ patented triangular membrane, paired with a uniquely designed low-noise, low-power phantom-fed amplifier. This combination delivers exceptional clarity and a remarkably natural response, with a bandwidth that stretches from deep, solid bass to airy, breathing treble—an astonishing 7 Hz to 87 kHz.

The result is a microphone that feels effortless to work with. It reveals detail without exaggeration, handles distance miking with ease, and leaves the proximity effect behind. Self-noise is extremely low, sensitivity is high, and the output signal is strong—so a gentle hand on the gain is all that’s needed.

This is not about impressing on paper. It’s about trust in every take, and confidence that what you hear is what was truly played, sung, or spoken.

PURE STUDIO TRANSPARENCY

A large-diaphragm condenser microphone designed to capture sound exactly as it is—clean, open, and uncoloured.

PATENTED TRIANGULAR MEMBRANE

Reduces self-resonance and preserves phase integrity, delivering exceptional clarity, detail, and natural transients.

EFFORTLESS TO WORK WITH

Low self-noise, strong output, and minimal proximity effect make the EHR-M a trusted tool for confident recording at any distance.

Characteristics & features

Large-diaphragm condenser microphone
Patented triangular membrane design
Internal amplification and power circuitry
Extremely low-noise performance
Phase- and frequency-linear internal amplifiers
Strong output signal with high sensitivity
Low energy consumption, approx. 2.0 mA
Handles all source impedances without altering frequency or phase
Frequency range from infrasonic bass to ultrasonic treble (7 Hz – 87 kHz)
Excels at distance miking—minimal proximity effect
Natural reproduction of fast transients
Transparent, uncoloured sound—true to the original source
Every Ehrlund microphone is individually built and stereo-matched within its model

Technical specifications

Type: Condenser microphone
Membrane type: Patented triangular membrane to eliminate self-resonance in the capsule

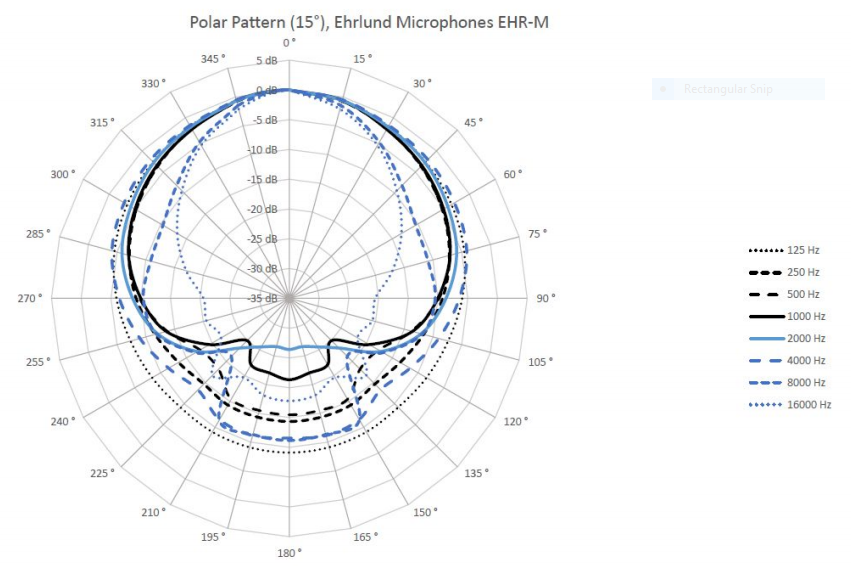

Pickup pattern: Cardioid

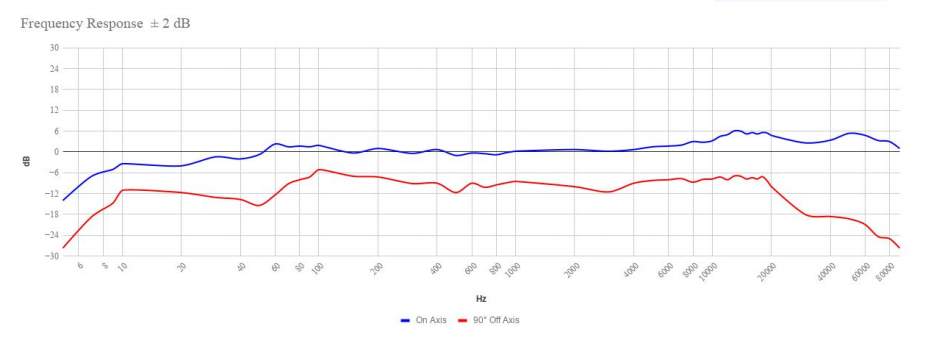

Frequency range: 7 Hz – 87,000 Hz
Sensitivity at 1 kHz: −33 dBV/Pa (23 mV/Pa)
Impedance: Unaffected by load impedance
Equivalent noise level: < 7 dBA
Signal-to-noise ratio: 87 dBA
Dynamic range: 115 dB
Max SPL (peak): 116 dB SPL @ 0.5% THD, 122 dB SPL @ 1% THD
Power supply: 48 V phantom power
Current consumption: 2.0 mA

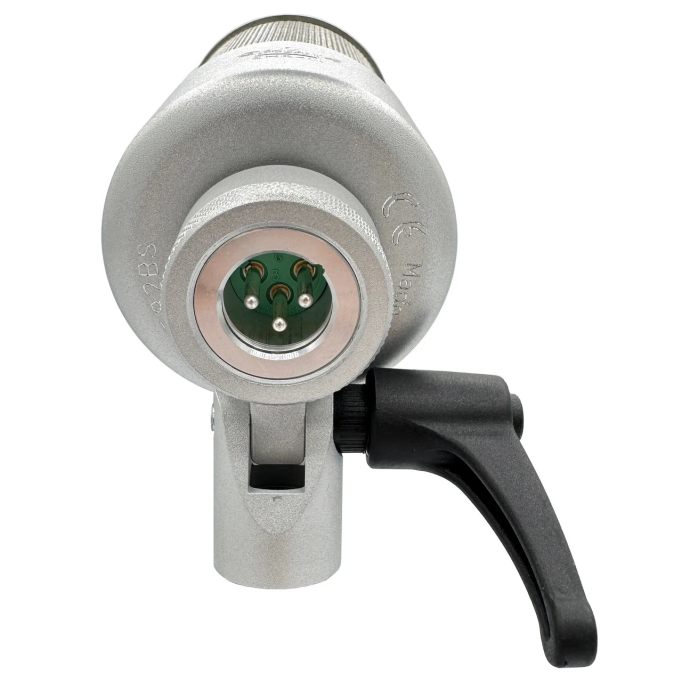

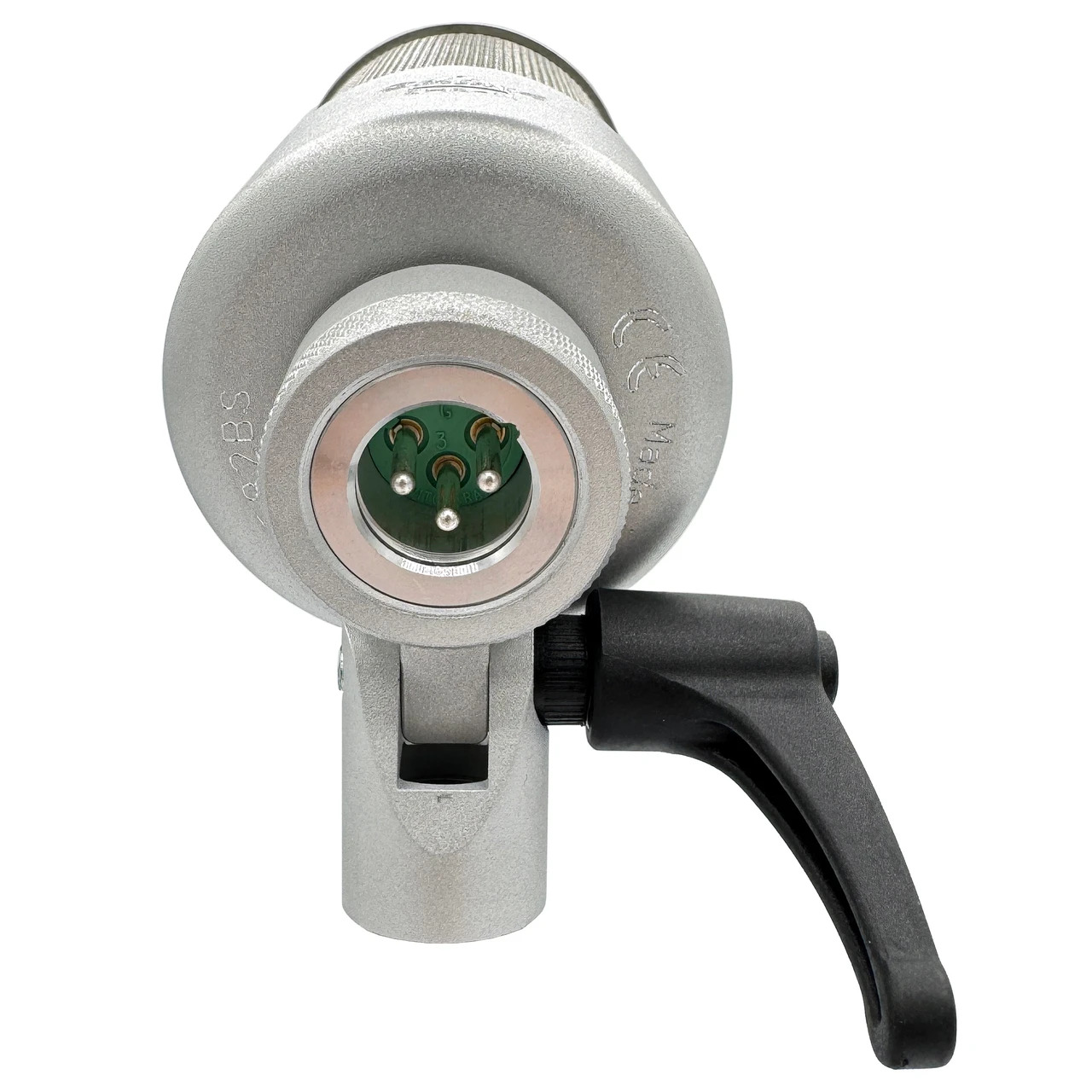

Connector: 3-pin XLR

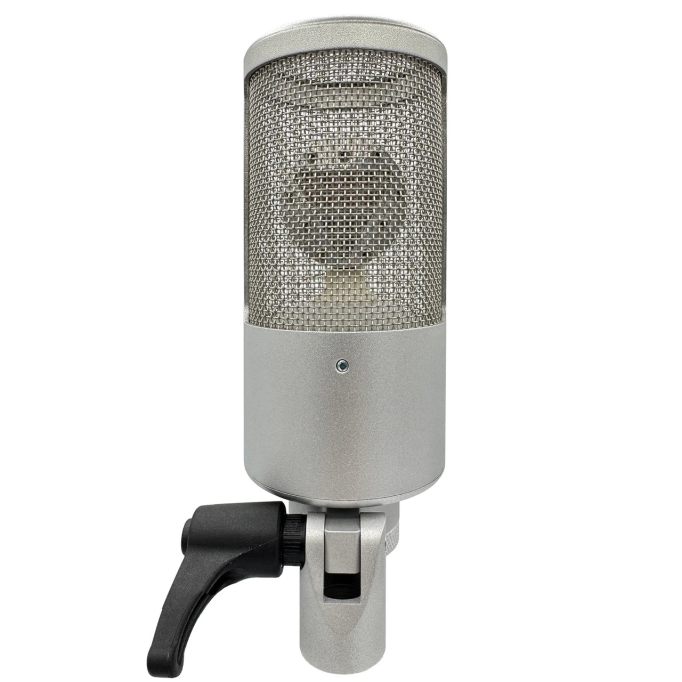

Materials: Aircraft-grade aluminium body, hardened nickel-plated stainless steel grille
Dimensions: Ø60 mm × 155 mm (Ø2.36″ × 6.10″)
Weight: 340 g (0.75 lb)
