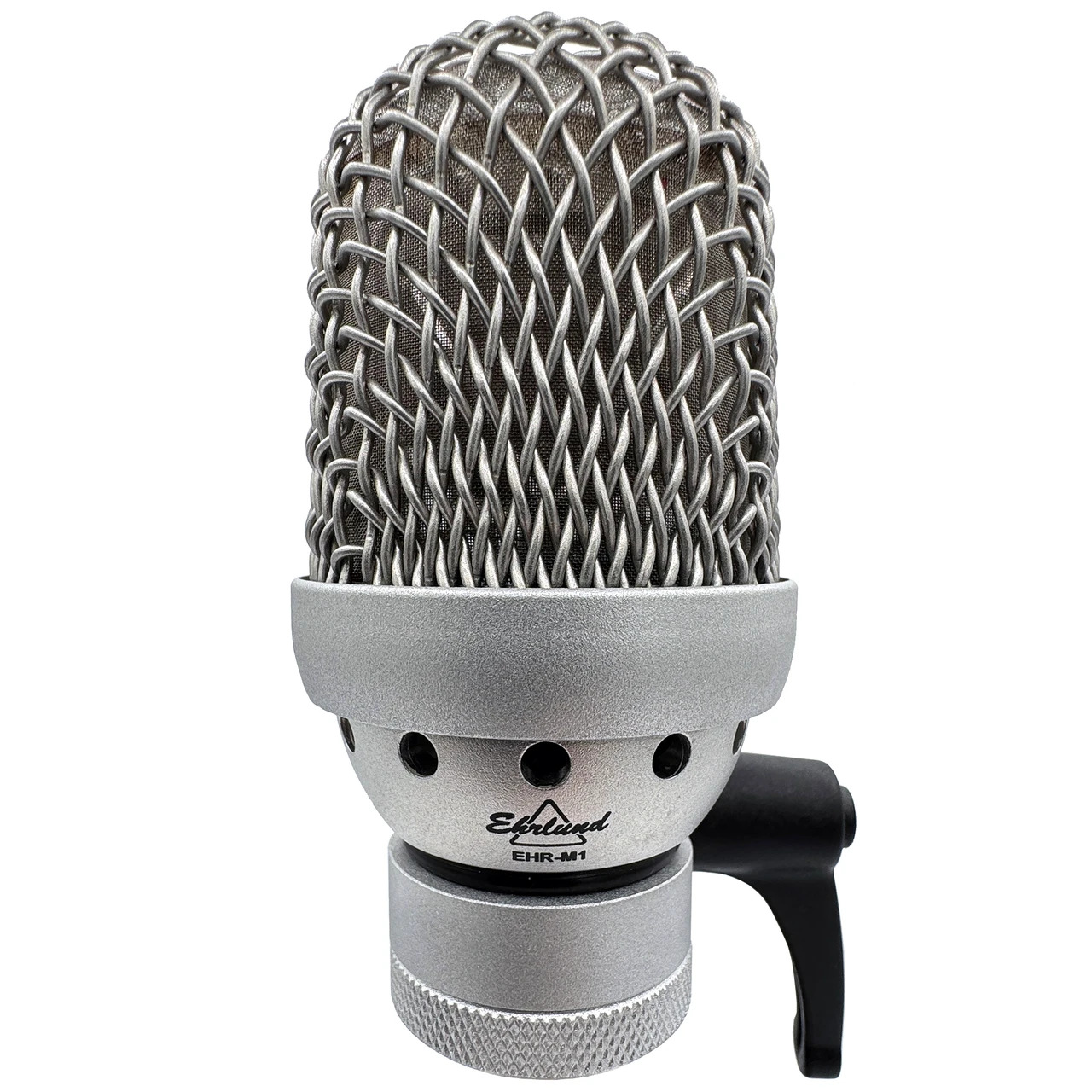

Ehrlund Microphones EHR-M1

Compact excellence, built to move

The EHR-M1 is a Swedish-manufactured studio condenser microphone designed for life beyond the studio. Built to endure the realities of touring, broadcasting, and everyday professional use, it delivers the same honest, natural sound as the EHR-M—now in a smaller, tougher format.

In many ways, the EHR-M1 shares the same DNA as the EHR-M. The difference lies in its more compact size, increased impact resistance, and built-in coarse dirt filter. At its core is Ehrlunds’ patented triangular membrane, paired with patented ultra low-noise, low-power phantom-fed amplification.

The result is a microphone with broad and smooth pickup characteristics, deep and controlled bass, and an extended, open treble. Self-noise is extremely low, sensitivity is high, and the frequency range is wide and linear—even at distance or off-axis. The output signal is strong and clean, often requiring little to no additional gain. This is the Go-To Overhead mic for many sound engineers.

The EHR-M1 is made for creators who need one microphone they can trust—whether in the studio, on stage, or on the road.

HONEST SOUND, BUILT FOR THE ROAD

Delivers the same transparent, natural sound as the EHR-M—now in a compact, durable format made for touring, broadcast, and everyday professional use.

HONEST SOUND, BUILT FOR THE ROAD

Delivers the same transparent, natural sound as the EHR-M—now in a compact, durable format made for touring, broadcast, and everyday professional use.

ONE MICROPHONE YOU CAN TRUST ANYWHERE

Lightweight, impact-resistant, and powerful enough to work without extra gain — in the studio, on stage, or on the move.

Characteristics & features

Large-diaphragm condenser microphone
Patented triangular membrane design
Internal amplification and power circuitry
Optimized for podcast, broadcast, and touring environments
Transparent and natural sound
Excellent low-noise performance
Phase- and frequency-linear internal amplifiers
Compact size and lightweight construction
Built-in coarse dirt filter
Durable design, made to withstand life on tour
Broad pickup range with linear frequency response, even off-axis
Accurate bass reproduction, even at moderate distances
Natural reproduction of fast transients
Negligible sound coloration, true to the original source
Frequency range from infrasonic bass to ultrasonic treble
Low energy consumption, approx. 2.0 mA
Strong output signal, usually requiring no external amplification
Designed for flat EQ—no pre-filtering required
Every Ehrlund microphone is individually stereo-matched within its model
Unaffected by load impedance

Technical specifications

Type: Condenser microphone
Membrane type: Triangular membrane combining characteristics of both large and small diaphragms
Pickup pattern: Cardioid
Frequency range: 7 Hz – 87,000 Hz
Sensitivity at 1 kHz: −33 dBV/Pa (23 mV/Pa)
Impedance: Unaffected by load impedance
Equivalent noise level: < 7 dBA
Signal-to-noise ratio: 87 dBA
Dynamic range: 115 dB
Max SPL (peak):
– 116 dB SPL @ 0.5% THD
– 122 dB SPL @ 1% THD
Power supply: 48 V phantom power
Current consumption: 2.0 mA

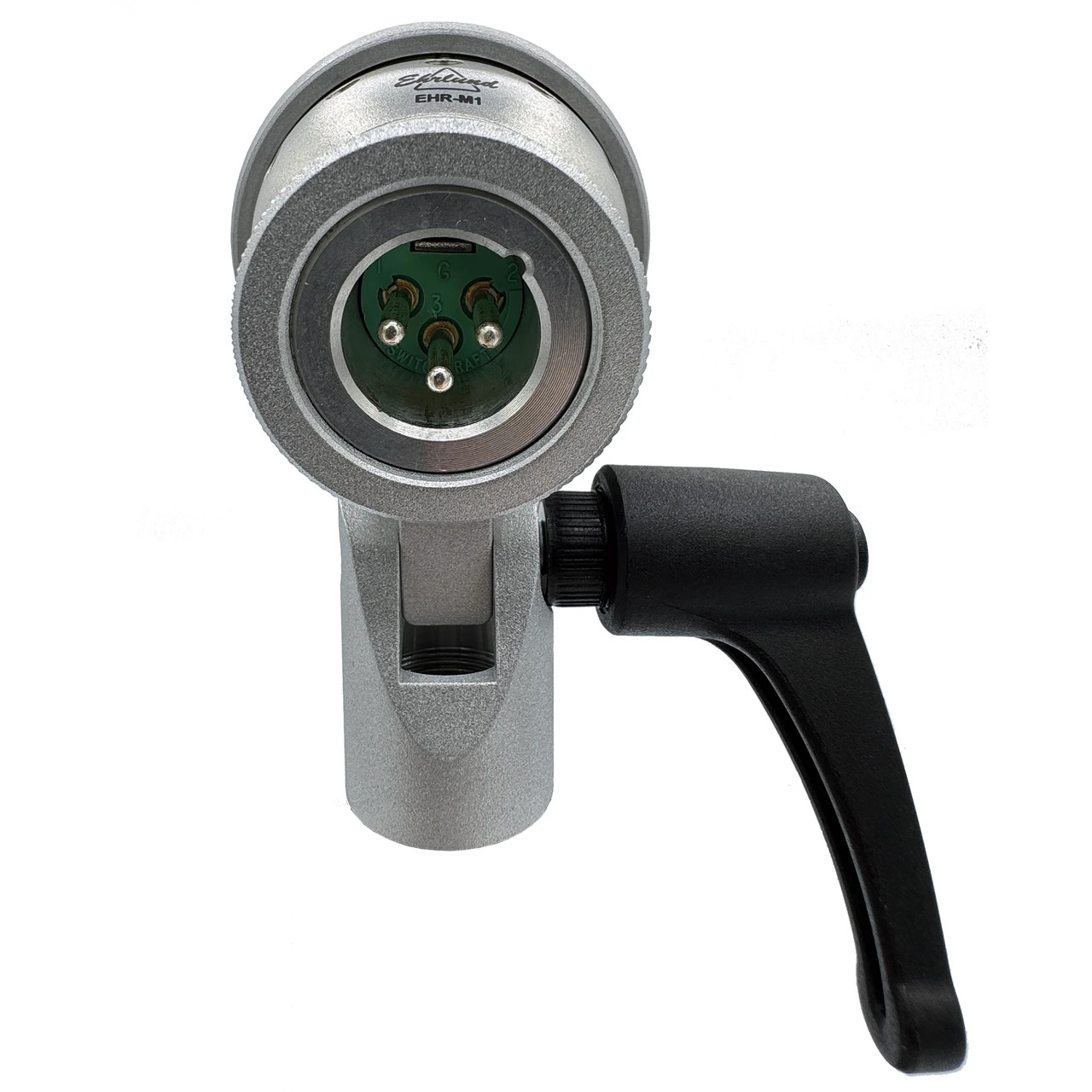

Connector: 3-pin XLR

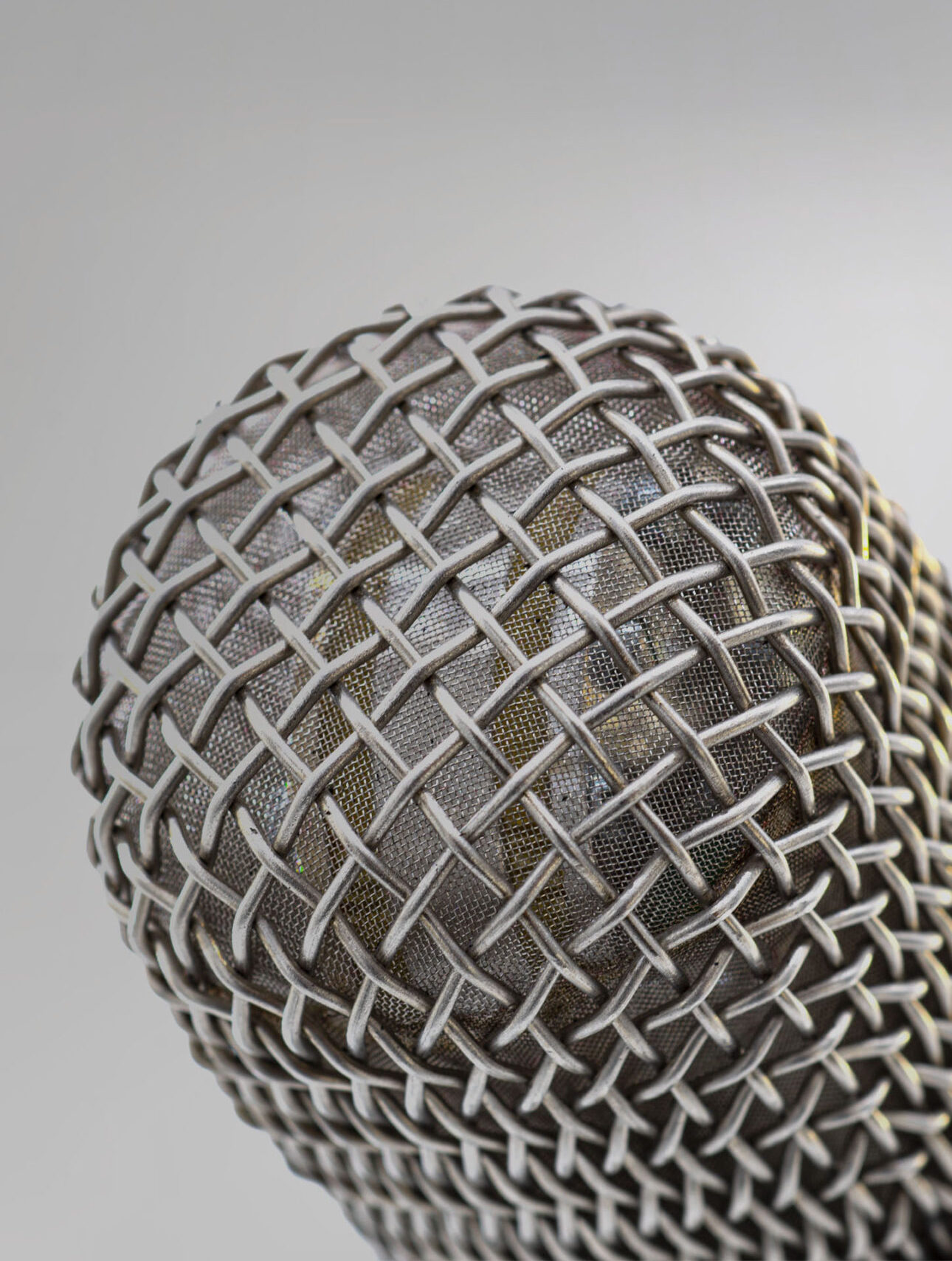

Materials: Aircraft-grade aluminium body, hardened nickel-plated stainless-steel grille
Finish: Glass bead blasted
Dimensions: Ø53 mm × 95 mm
Weight: 185 g
