Ehrlund Microphones EHR-T

Ehrlund Microphones EHR-T

Condensatormicrofoon met twee gepatenteerde driehoekige membranen, in essentie twee EHR-M's in één behuizing, biedt bijna totale flexibiliteit

EHR-T

Price on
demand Gold client price available!
Click here and becom a Gold Client

Quantity

Add this product to your quotation.
It will be ordered for you.
Neem contact us for delivery times

Add to quotation

Leverings- en Retourbeleid

Questions? Seen a better price?

Call +31 (0) 512 - 340457 or contact us!

Product omschrijving

Ehrlund Microphones EHR-T

Two capsules. One mic. Limitless possibilities.

The EHR-T is a Swedish-manufactured large-diaphragm condenser microphone, carefully built for studio use where clarity, flexibility, and musical honesty matter most. It is designed to deliver the cleanest sound possible—open, natural, and deeply detailed. At its core are two patented triangular membranes, placed back-to-back and paired with patented ultra-low-noise, low-power phantom-fed amplifiers. This unique dual-capsule design gives the EHR-T a beautifully smooth and balanced pickup, with deep, solid bass and an extended, effortless treble. Self-noise is exceptionally low, sensitivity is high, and the frequency range reaches far beyond what the ear can hear. With two completely independent output channels—one for the front capsule and one for the rear—the EHR-T offers a level of creative freedom that few microphones can match. The output signal is strong and clean, usually requiring very little gain, and the microphone remains transparent and stable in even the most demanding studio situations and concert halls.

TWO PATENTED TRIANGULAR CAPSULES

Dual capsules minimize resonance and preserve phase, delivering an open and natural sound image.

TOTAL POLAR PATTERN FREEDOM

Shape classic patterns—or create entirely new ones—directly in the mix.

BUILT FOR SPACE, DEPTH, AND DETAIL

Excels at distance miking, orchestras, rooms, and immersive recordings.

Characteristics & features

Twin large-diaphragm condenser microphone
Two patented triangular membrane design
Internal amplification and power circuitry
Extremely low-noise performance
Phase- and frequency-linear internal amplifiers
Strong output signal with high sensitivity
Low energy consumption, approx. 2.0 mA
Handles all source impedances without altering frequency or phase
Frequency range from infrasonic bass to ultrasonic treble (7 Hz – 87 kHz)
Excels at distance miking—minimal proximity effect
Natural reproduction of fast transients
Transparent, uncoloured sound—true to the original source
Every Ehrlund microphone is individually built and stereo-matched within its model
Amazing to capture classical orchestras, outdoor surround sounds and capturing rooms

Technical specifications

Type: Twin Condenser microphone
Membrane type:Dual patented triangular membrane to eliminate self-resonance in the capsule
Pickup pattern: Cardioid, supercardioid, bi-directional and omnidirectional
Frequency range: 7 Hz – 87,000 Hz
Sensitivity at 1 kHz: −33 dBV/Pa (23 mV/Pa)
Impedance: Unaffected by load impedance
Equivalent noise level: < 7 dBA
Signal-to-noise ratio: 87 dBA
Dynamic range: 115 dB
Max SPL (peak): 116 dB SPL @ 0.5% THD, 122 dB SPL @ 1% THD
Power supply: 2x 48 V phantom power
Current consumption: 4.0 mA (2.0 mA per channel)

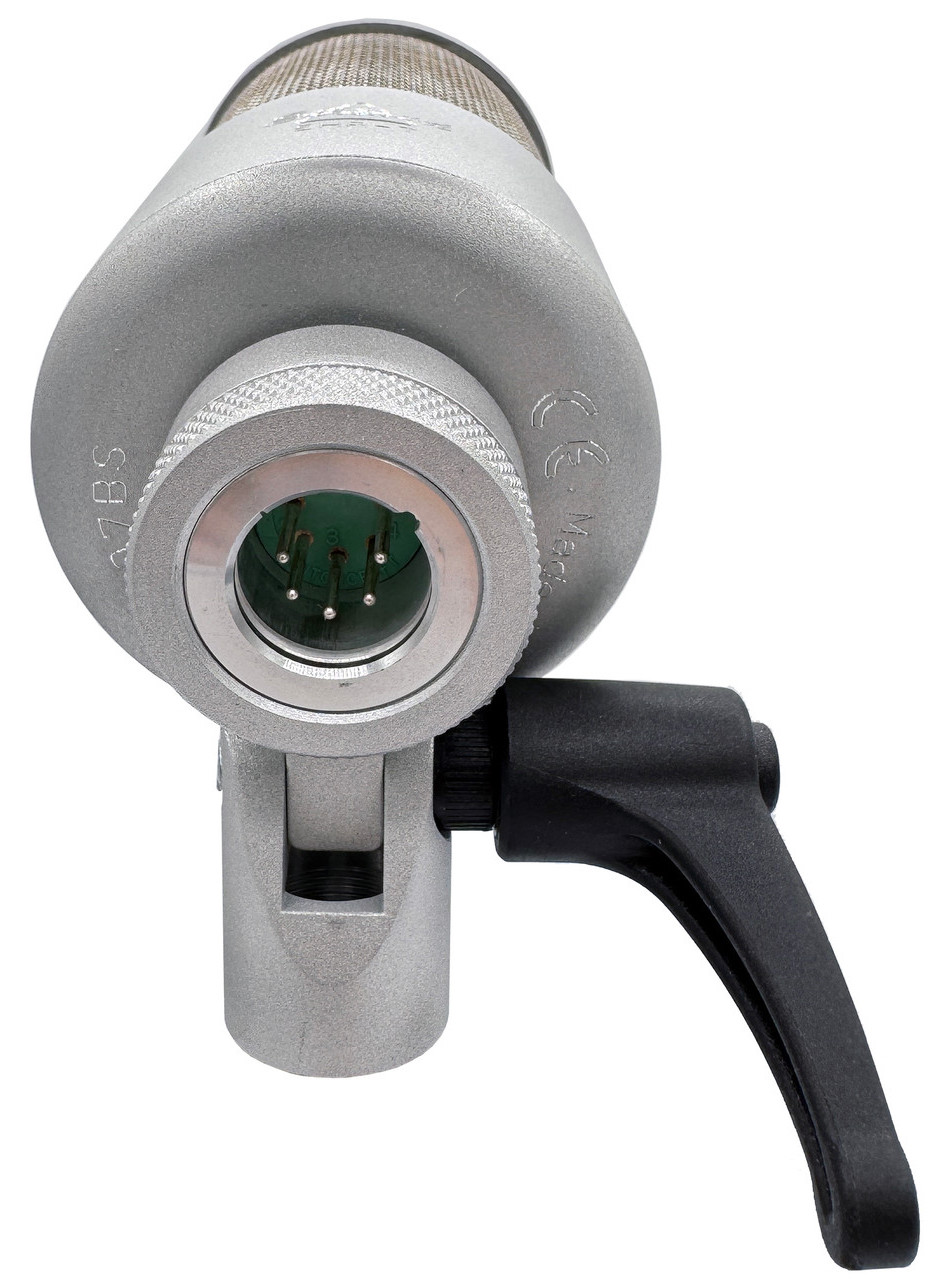

Connector: 5-pin XLR
Materials: Aircraft-grade aluminium body, hardened nickel-plated stainless steel grille
Dimensions: Ø60 mm × 155 mm (Ø2.36″ × 6.10″)
Weight: 345 g (0.76 lb)
