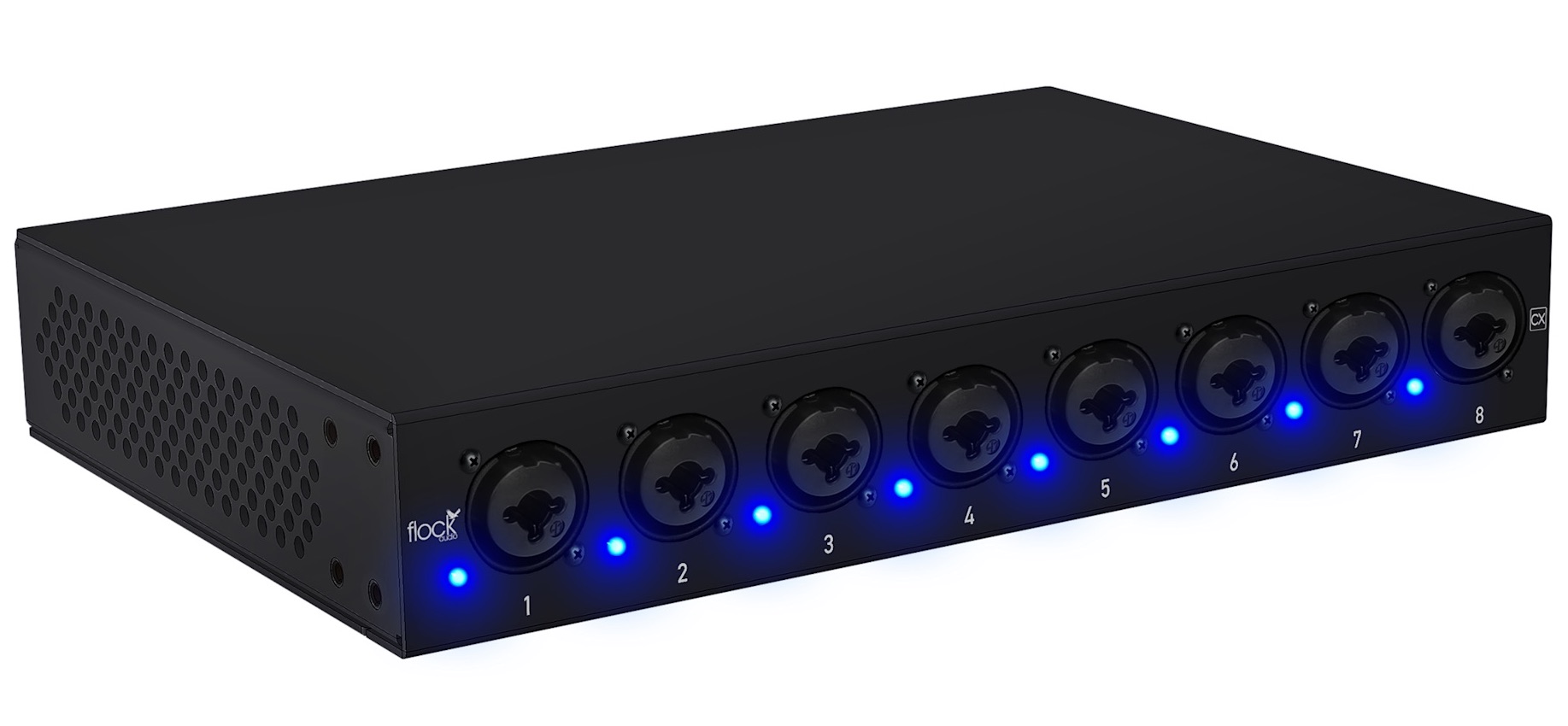

Flock Audio CX

Flock Audio CX - Microphone/Instrument Module

ALL ANALOG SIGNALS COMPATIBLE

The Flock Audio CX Module is a digitally controlled, 100% analog audio microphone and instrument pre-amplification system. A combination of the Software Controls built into the PATCH APP(s) & A CX Standalone App along with an 8-channel CX Hardware component allows users to easily setup & control analog signal levels seamlessly with Recall capabilities.

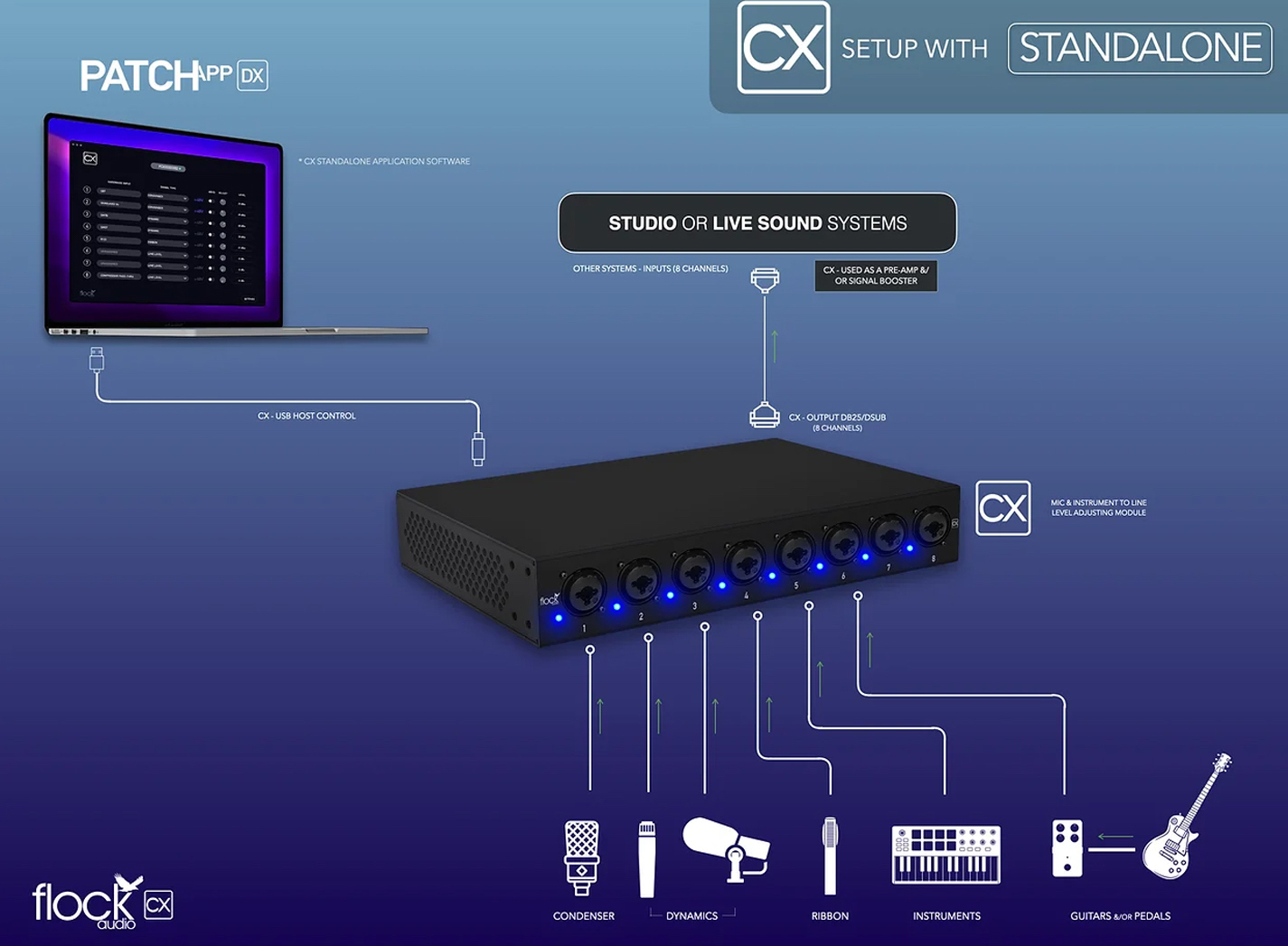

The PATCH APP & PATCH APP DX software applications (OSX & Windows) are updated to include the controls and integration of the CX Hardware Controls. The CX Setup Menu is where you can configure your CX Hardware’s parameters and control the CX Hardware. CX Standalone Application offers the ability to use the CX Hardware outside of the PATCH Series eco-system as a dedicated preamp or signal level booster.

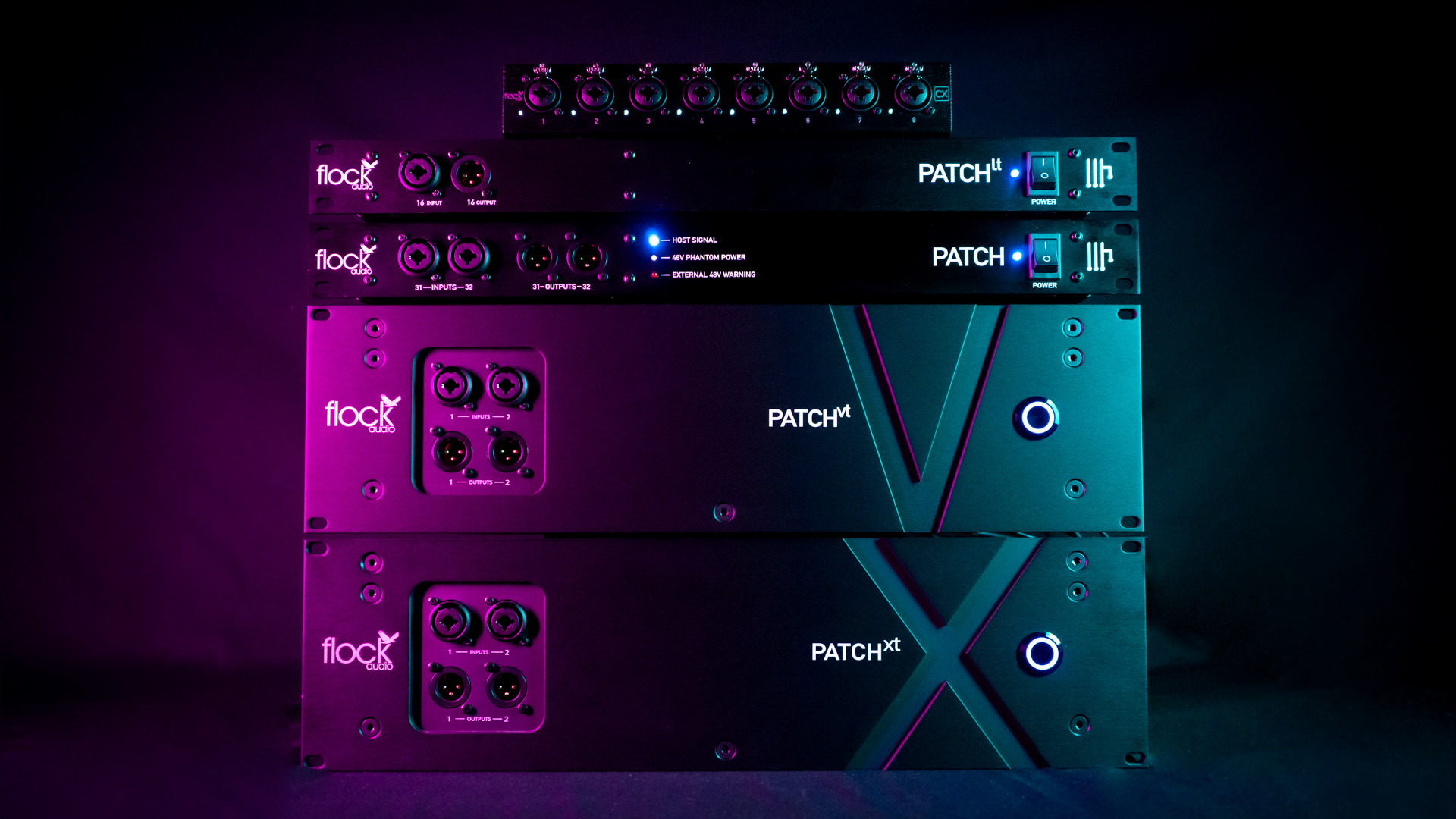

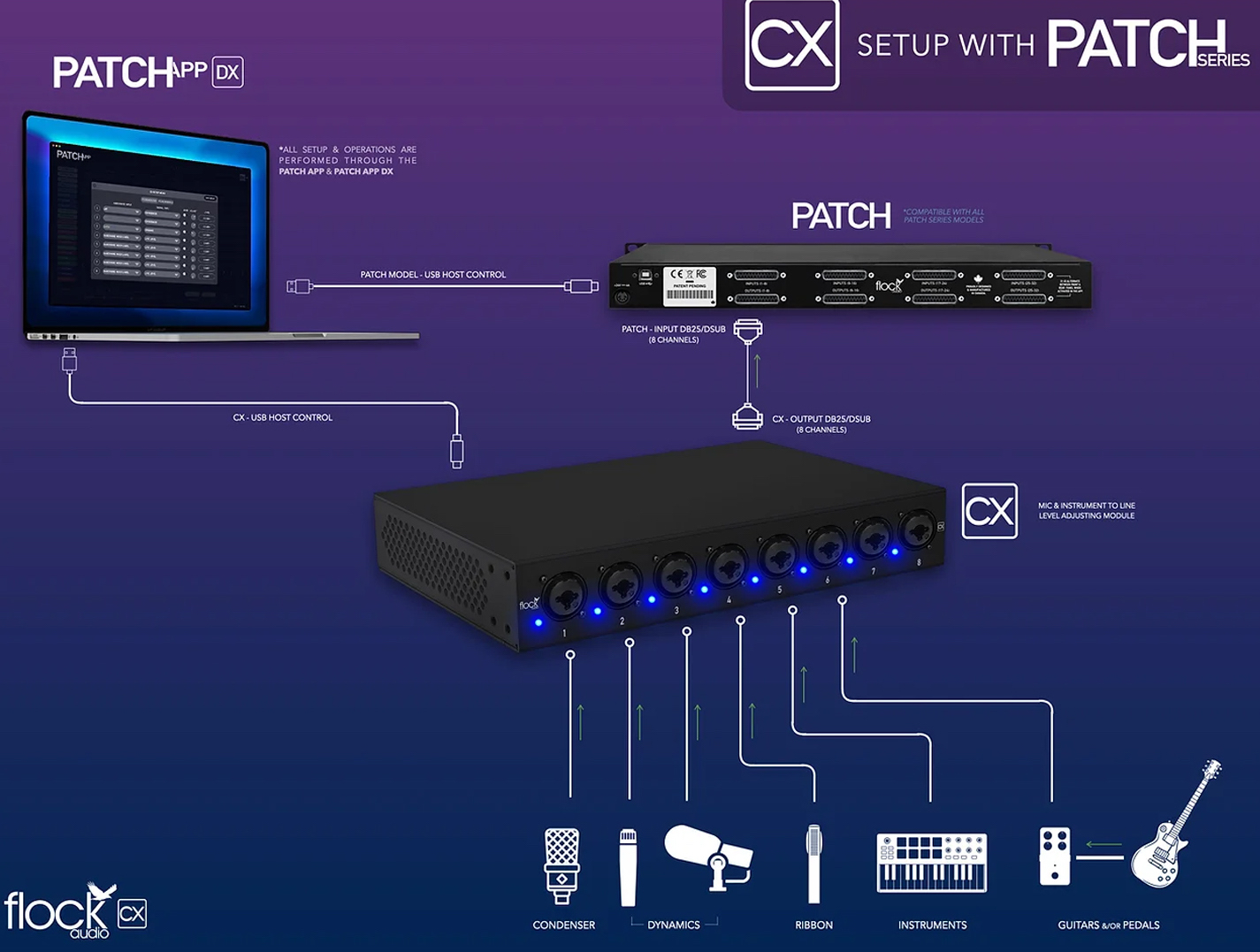

The CX Hardware component is a compact accessory unit that seamlessly integrates with any PATCH Series setup. Utilizing digital control over analog audio signals is what makes the CX System unique and unlike anything else in the audio industry.

PRODUCT DETAILS

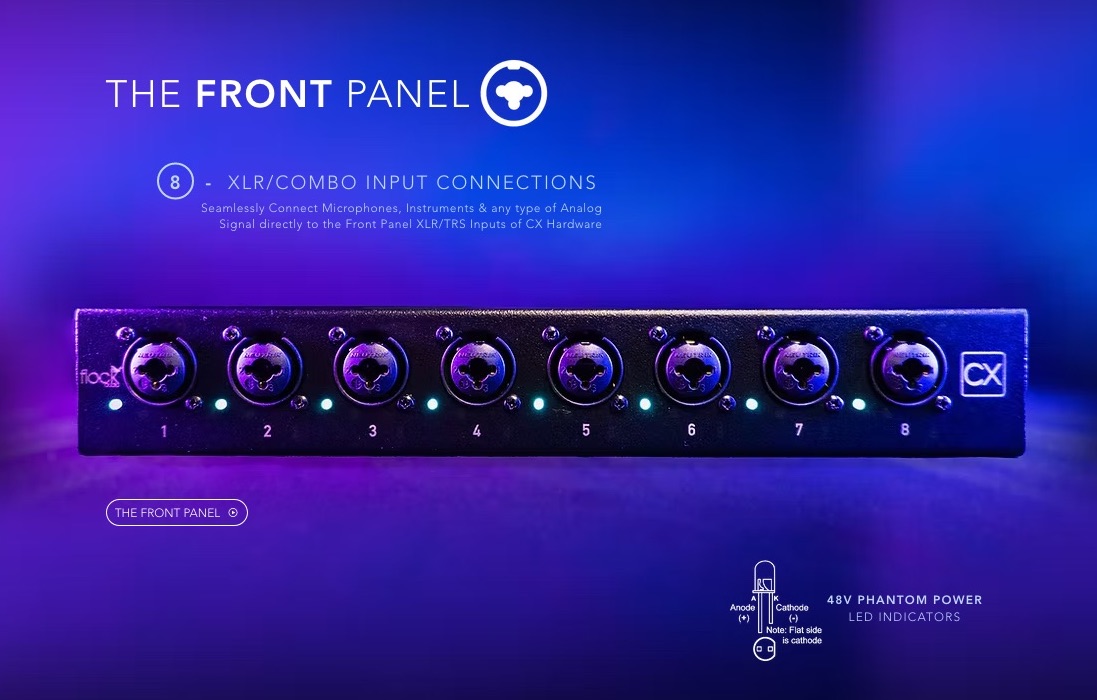

• 8 Channel Mic/Instrument Level XLR/TRS Combo Inputs

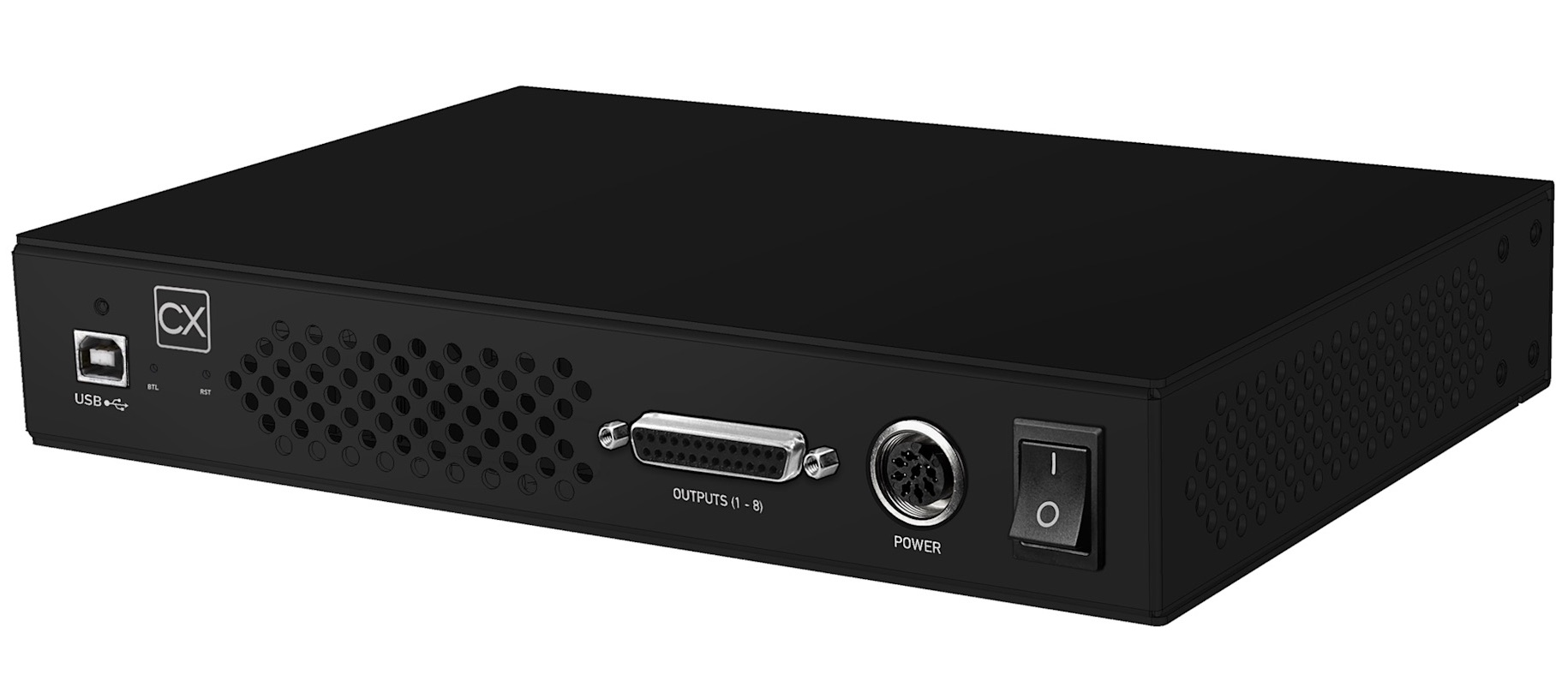

• 8 Channel Line Level DB-25/D-SUB Output Tascam Standard Pinout Format Connector
• 8 Assignable Independent Channels of 48V Phantom Power
• PATCH APP & PATCH APP DX - Setup & Controlling Software (OSX, Windows, iOS)
• CX STANDALONE - Application for using CX outside of the PATCH Series
• 60 dB of Clean Transparent Gain / Signal Boosting
• Connect any type of analog audio signal to the PATCH Series via the CX Hardware
• No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Signal Path

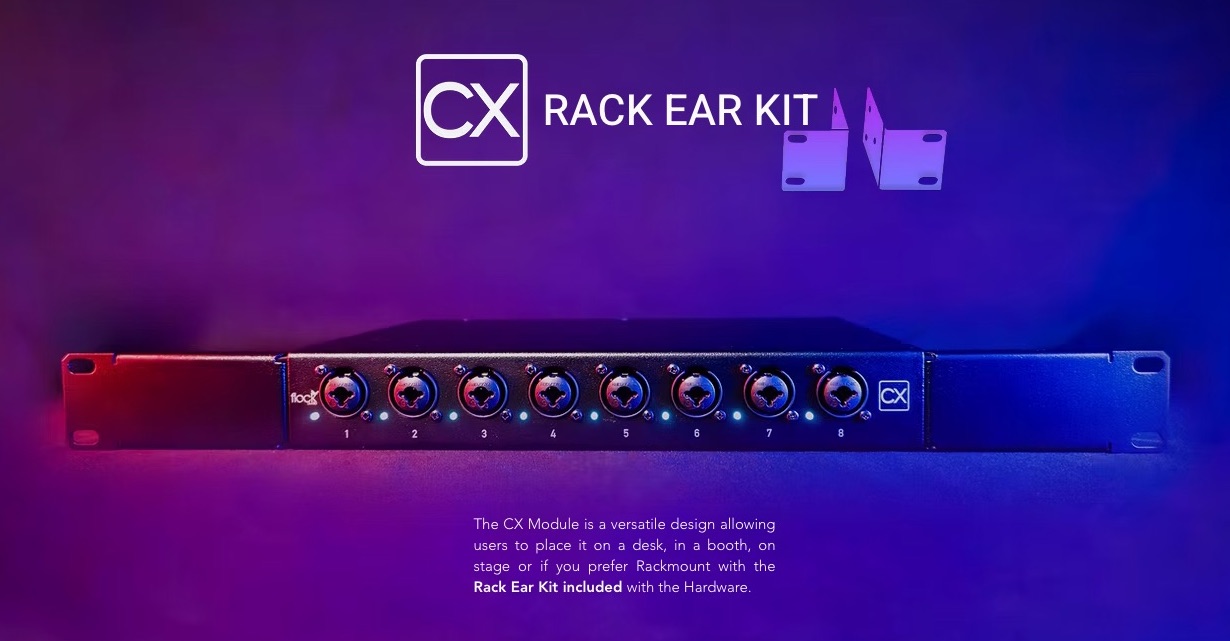

• Stand Alone Desk Module -or- Rack Ear Mountable Package Design (Ears Included)
• External Power Supply w/ Threaded Locking Connector (IEC Cable Included)
• 10 Ft. - USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)
• Unit Dimensions: 1.75”(H) x 10.25” (L) x 7” (D) - 8 lbs
