Flock Audio PATCH VT

Flock Audio PATCH VT - 128 Point Patchbay

A 3U RACK MOUNT DESIGN WITH EXCEPTIONAL IN MIND

The Flock Audio PATCH VT System is a digitally controlled, 100% analog audio patch bay routing system. A combination of Software known as the PATCH APP and a 128 Point Connection PATCH VT Hardware component allows users to easily route and control analog audio routings without having to resort to the use of manual patch cables.

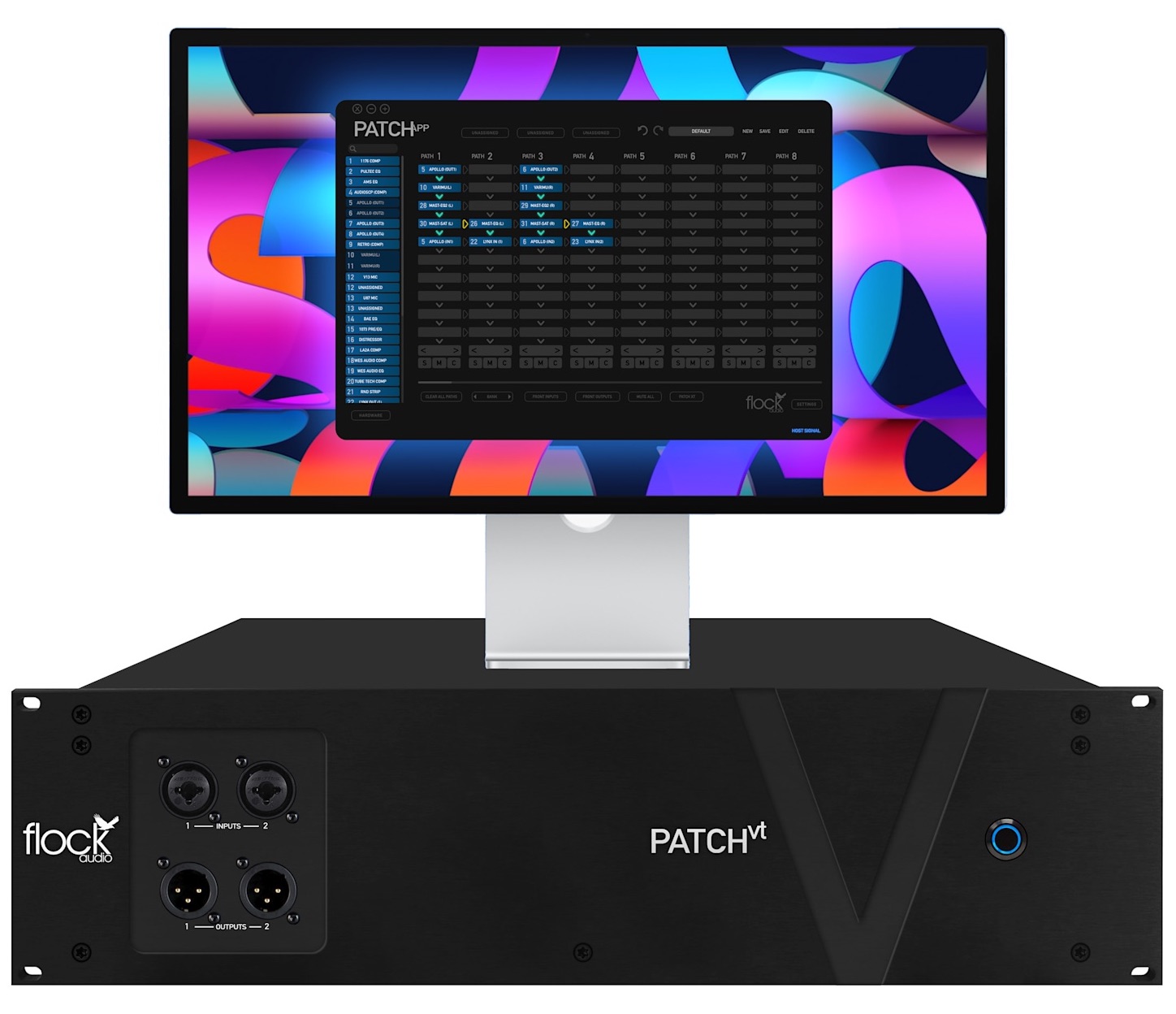

The PATCH APP software application (OSX & Windows Compatible) is designed with familiarity in mind. PATH’s in the application represent audio signal flows from top to bottom. Signal flows are divided up into single vertical columns allowing users to drag + drop available analog audio equipment connected to the PATCH VT’s Hardware component. This analog audio equipment is cataloged in the Hardware Index located to the left side of the PATCH APP.

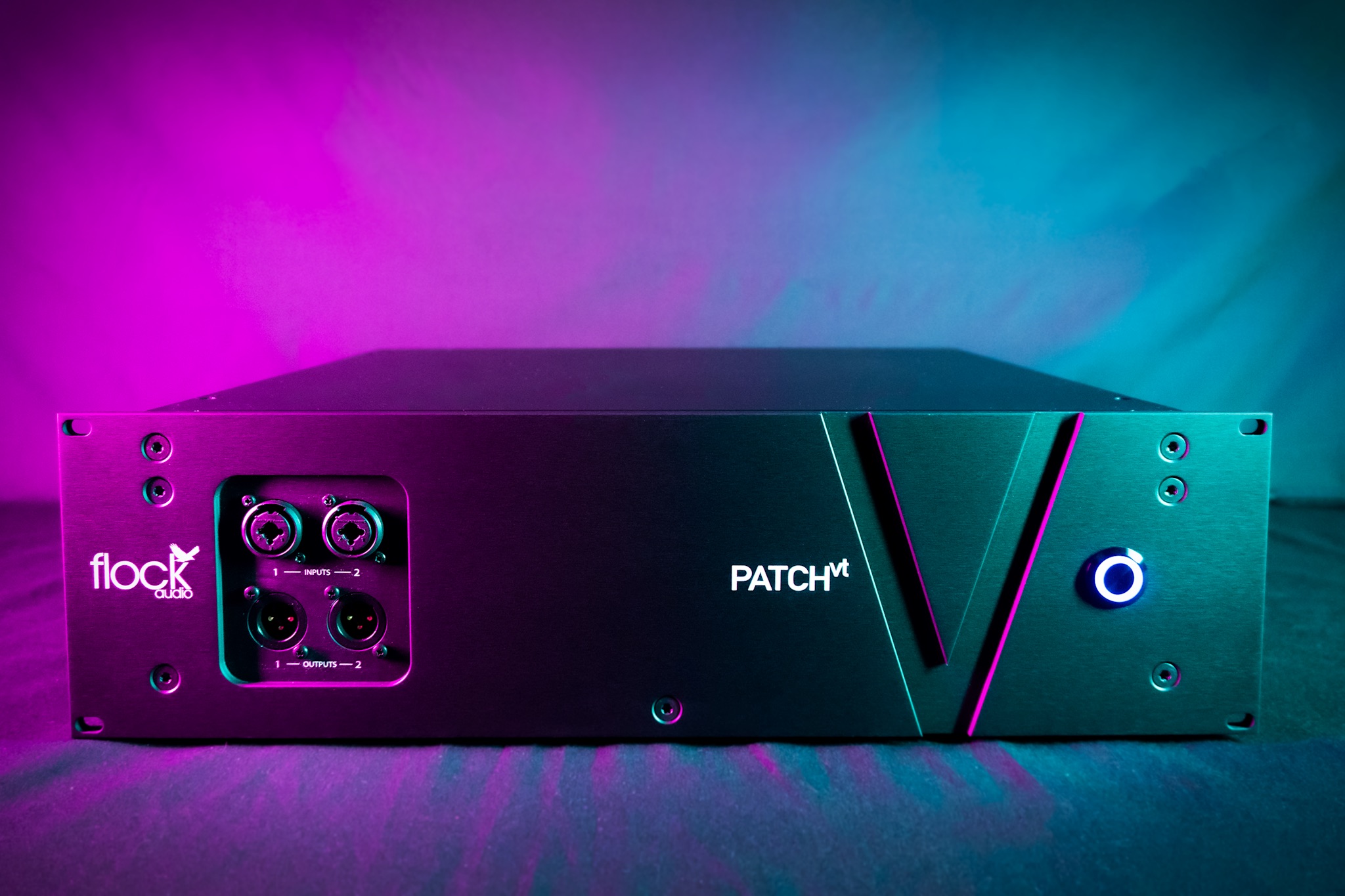

The PATCH VT Hardware component is a 3U rack mountable unit that acts as the centrepiece hub of an audio processing equipment setup. Utilizing digital control over analog audio signals is what makes the PATCH VT System unique and unlike anything else in the audio industry.

COMPATIBLE WITH XTH CABLE HANGER

XTH Cable Hanger helps relieve the Weight, Stress & Strain of DB-25 Cables on the PATCH VT's Rear Panels and keeps your Cables Organized in the Process!

PRODUCT DETAILS

• 128 Point Connections (64 Inputs / 64 Outputs)

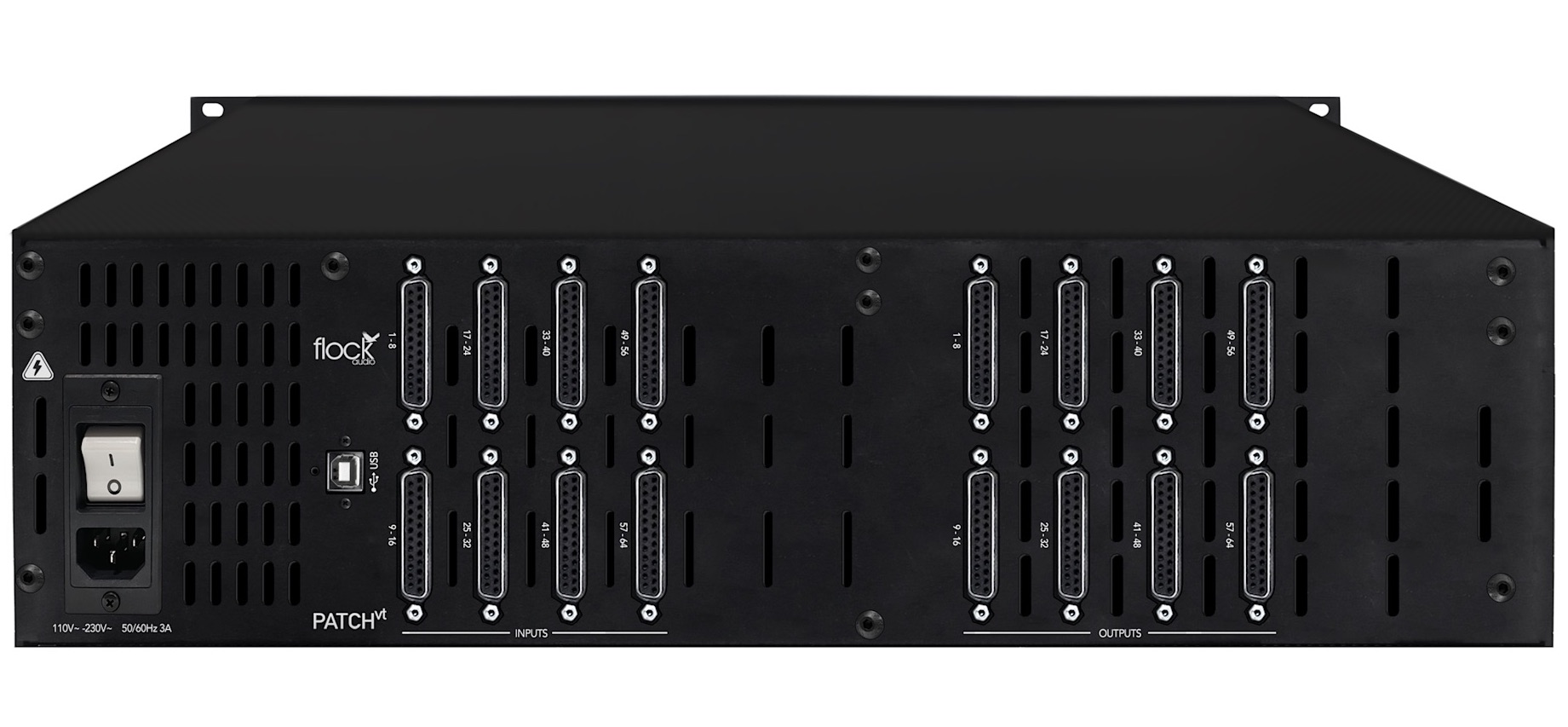

• DB-25/D-SUB Tascam Standard Pinout Format Connectors (Rear Panel)
• 32 Assignable Independent Channels of 48V Phantom Power

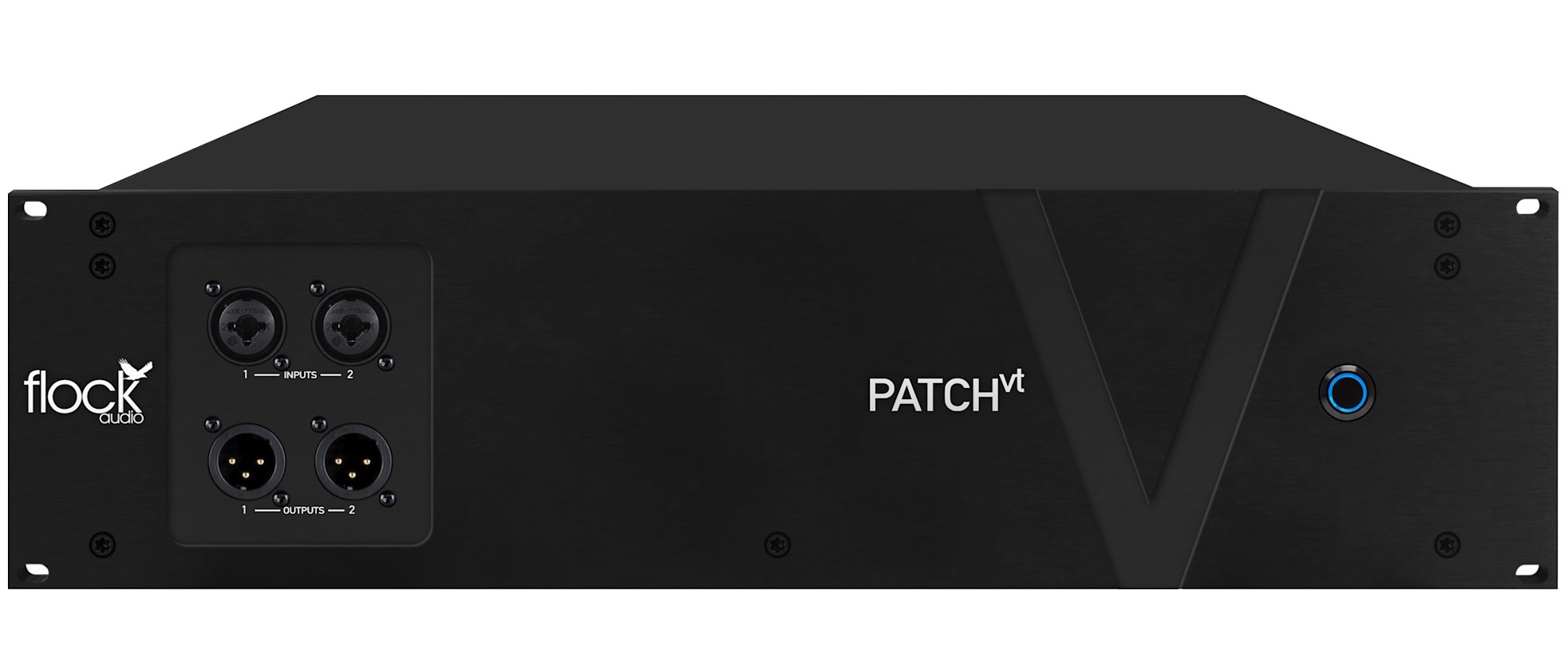

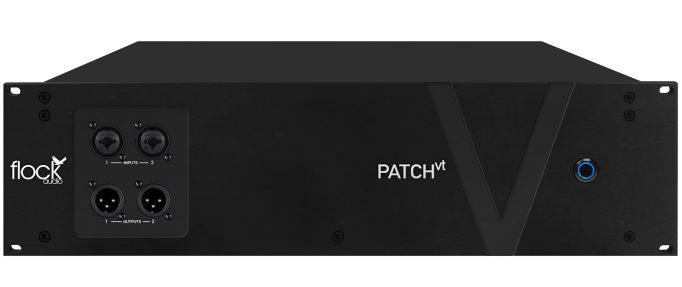

• Front Panel - Includes (2 Combo TRS/XLR Input & 2 XLR Output)
• PATCH APP & PATCH APP DX - Routing Software (OSX, Windows, iOS) Compatibility
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Level or Impedance Changes
• No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Routing
• Remote Sleep/Wake Mode Control of PVT Hardware
• Input Signal Audio Detection Integration
• Patented Flock Audio Matrix Technology
• Multiple Unit Expansion with 10 of any PATCH Series Model (PATCH LT, PATCH, PATCH VT, PATCH XT)
• Internal Power Supply w/ IEC Cable Included
• 6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Locking USB Connector - Cable Included
• Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 24 lbs
