Microtech Gefell M 1030 incl MH 93.1 houder | Satin Nickle

M 1030
Studio Microphone

• condenser microphone
• cardioid
• large diaphragm capsule
• PE diaphragm
• transistor pre-amplifier
• phantom powering P48

The studio condenser microphone M 1030 combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology. The size of the microphone housing is optimized with regard to the expectations of a large diaphragm microphone for studio applications. The microphone is specifically designed to meet the needs of professional and semiprofessional users who demand the highest performance. The microphones are ideally suited for universal miking applications in broadcast and sound studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboard, percussion, wind and string instruments.

The electronic impedance converter uses a perfected circuit topology. This design reduces the noise floor to an extremely low level while also raising the maximum output capability. As a result, these microphones have a clean, distortion free sound over anextremely wide dynamic range. RFI susceptibility is very low.

Technical data

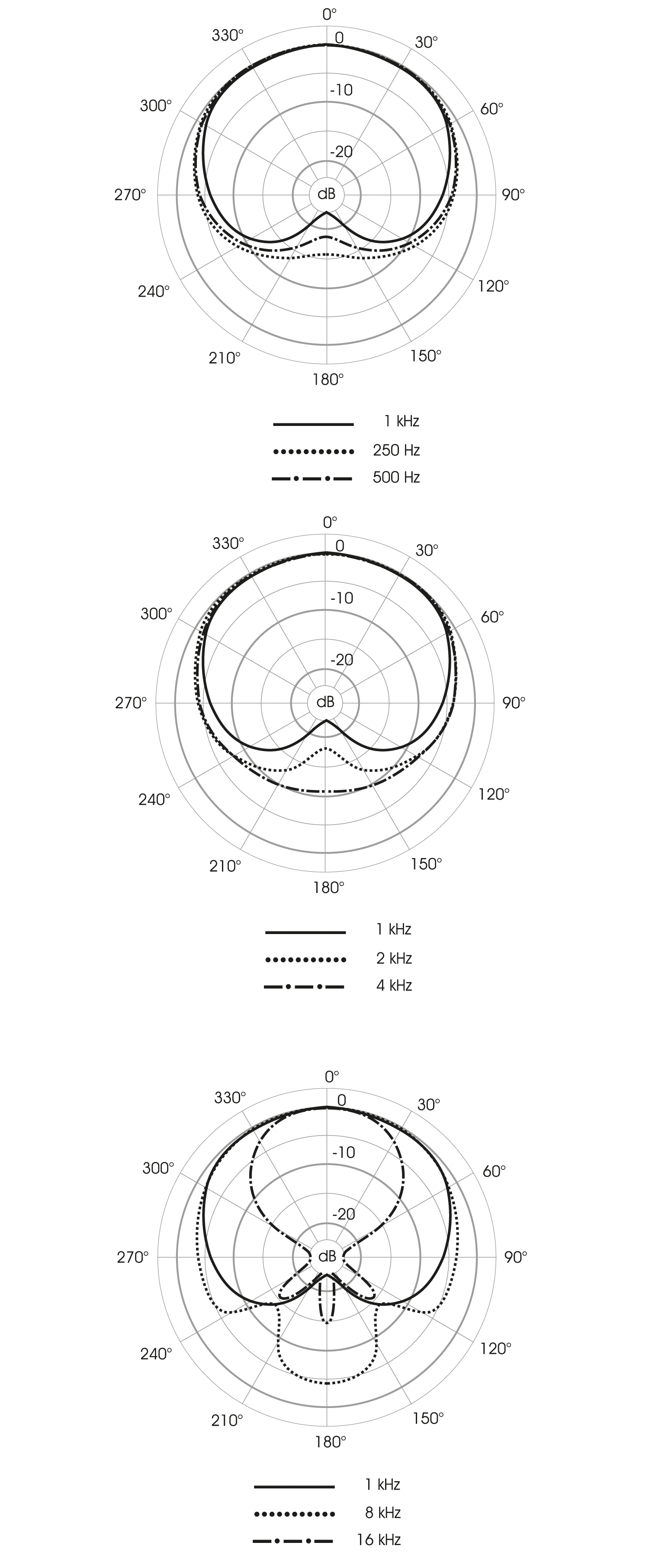

Polar pattern cardioid

Acoustic operating principle pressure gradient transducer

Frequency range 20 Hz to 20.000 Hz

Sensitivity at 1 kHz 21 mV/PA

Output impedance 100 Ohm

Noise level CCIR 468-413 dB

DIN EN 60268 -47 dB-A

Signal-to-noise ratioCCIR weighted 81 dB

A-weighted 87 dB

SPL for THD 0,5 %142 dB

Max. output level R = 1 kOhm17 dBu

R = 10 kOhm 18 dBu

Dynamic range 135 dB

Current consumption 3,6 mA

Output connector XLR3M

Weight 355 g

Length 145 mm

Diameter 66 mm

Surface satin nickel
