Microtech Gefell MD 300 met MH 80

Microtech Gefell MD 300

The MD 300 is a high-quality dynamic microphone with a frequency response of the transmission factor that has been optimized for intelligibility. It is featured with an especially accurate resolution at high frequencies and a well-balanced low-frequency transmission. It is insensitive to movements of the recorded sound source thanks to the cardioid polar pattern. The MD300 is useful as close-talking microphone for announcers of broadcasting services as well as for high-quality recordings of vocalists and instrumental soloists during live performances.

The frequency response has been optimized for low recording distances with an accentuation of approximately 2 dB between 2 kHz and 8 kHz to raise the speech and high-frequency presence. The change of the low end frequency response caused by the proximity effect is well-balanced without a very strong overemphasis at small microphone distances.

Technical data

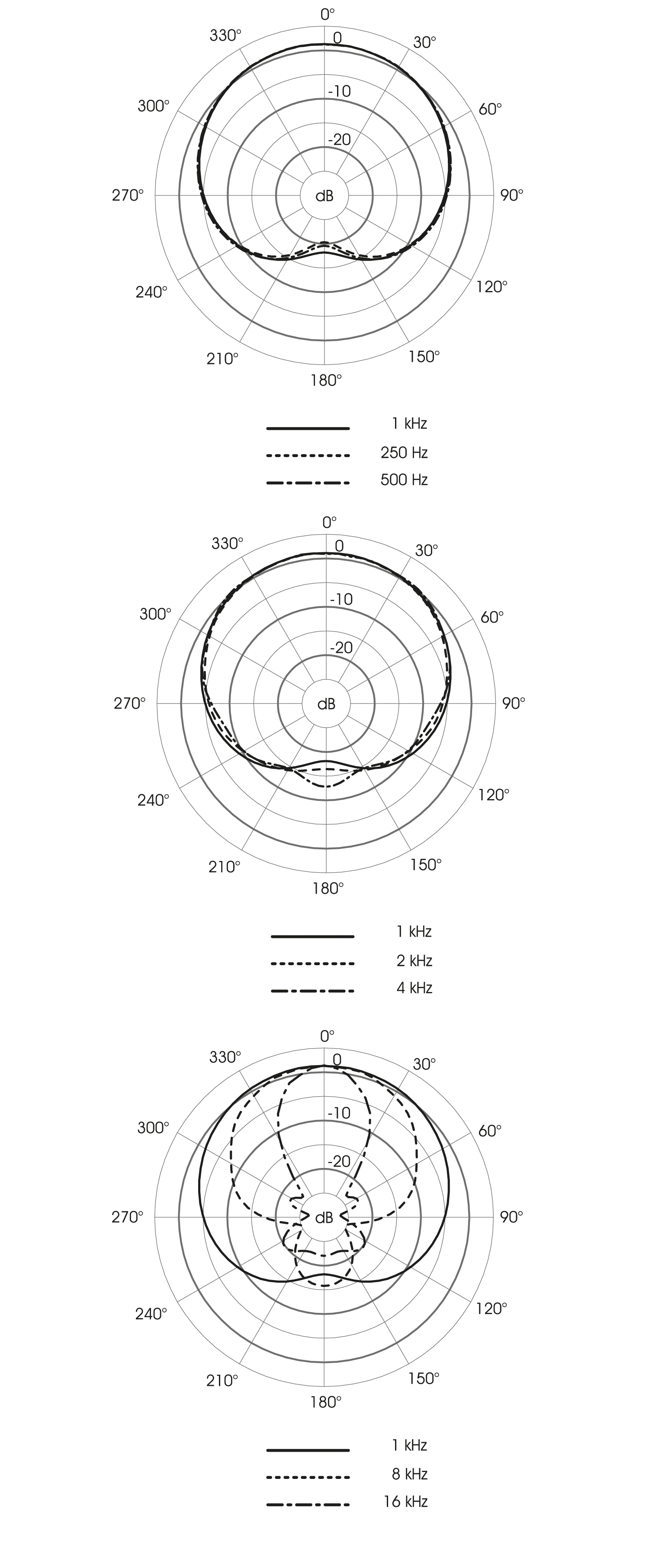

Polar pattern cardioid

Acoustic operating principle pressure gradient transducer

Electric operating principle moving - coil principle

Frequency range 50 Hz to 16.000 Hz

Sensitivity at 1 kHz 1,6 mV/A

Output impedance 220 Ohm

Load impedance ≥ 1 kOhm

Magnet field disturbing factor at 50 Hz ≤ 1 V/T

Output connector XLR3M

Weight 330 g

Length 173 mm

Diametercapsule 47 mm

preamplifier 40 mm

Surface NEXTEL® S 139
