Microtech Gefell MT 71 S | Black Matt

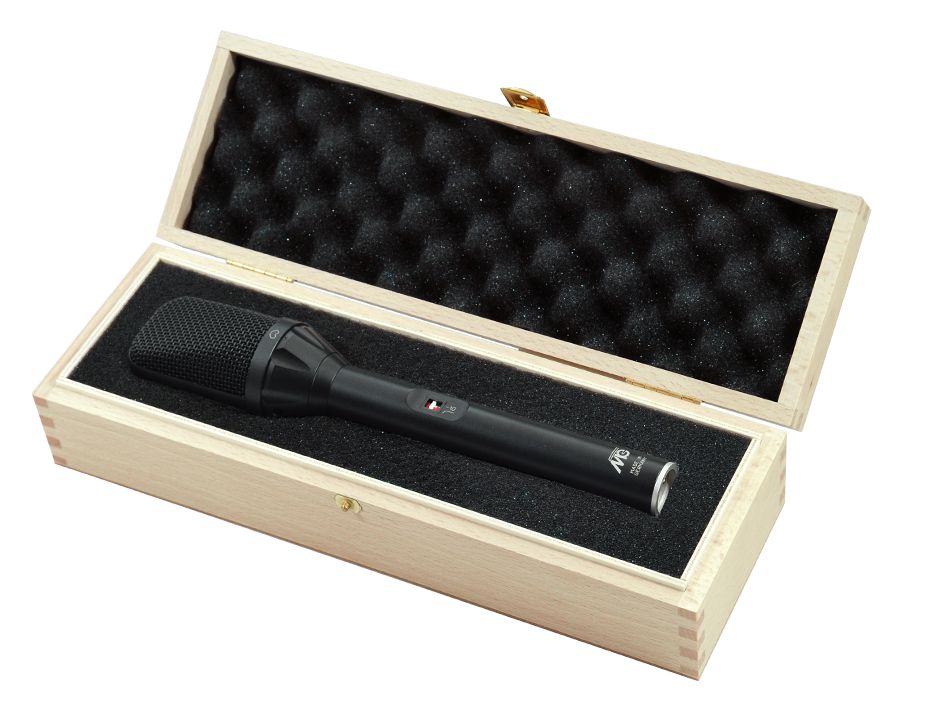

Microtech Gefell MT 71 S

The MT 71 S studio condenser microphone, equipped with our reliable large-diaphragm capsule, features outstanding performance, high sensitivity, and improved signal-to-noise ratio. The MT 71 S guarantees particularly clean and colourless sound reproduction. It is well-suited for instrumental and vocal soloists in radio and television broadcasting and any other kind of accurate production. The pressure gradient transducer is a dual-capacitor design that uses a single brass back-plate and two large-diameter gold-plated plastic diaphragms.

The transformerless circuit design substitutes the previous transformer for a symmetrical output stage yielding a superb transient response combined with a high RFI rejection. The circuit technology also achieves a wider dynamic range by lowering the self-noise floor and increasing the headroom for loud signals. A 10 dB attenuator has been installed to reduce the sensitivity of the microphone when placed near very loud sound sources. A sensitivity reduction for low frequencies can be utilized to suppress the proximity effect.

Technical data

Polar pattern cardioid

Acoustic operating principle pressure gradient transducer

Frequency range 20 Hz to 20.000 Hz

Sensitivity at 1 kHz13 mV/Pa  ± 3 dB

Switch position "reduced bass roll-off" at 90 Hz -10 dB ± 1 dB

Output impedance 150 Ohm

Noise level CCIR 468-422 dB

DIN EN 60268 -414 dB-A

Signal-to-noise ratioCCIR weighted 72 dB

A-weighted 80 dB

SPL for THD 0,5 % 134 dB

with 10 dB preattenuation 144 dB

Dynamic range 120 dB

Current consumption 3 mA

Output connector XLR3M

Weight 285 g

Length 217 mm

Diametercapsule42 mm

preamplifier 21 mm

Surface satin nickel, black matt
