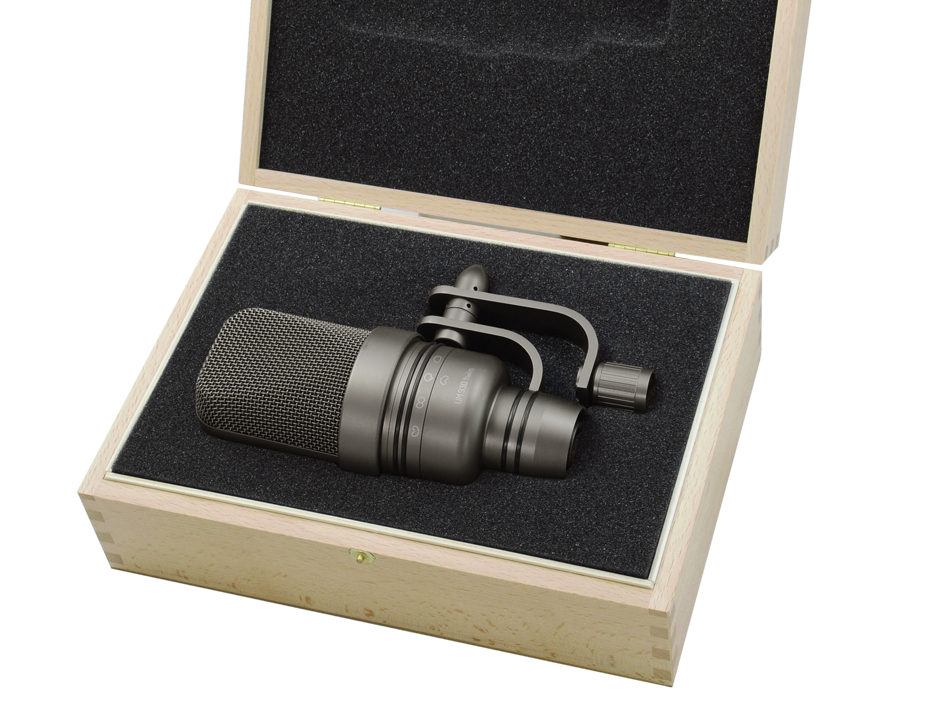

Microtech Gefell UM 930 Twin met MH80 houder | Dark Bronze

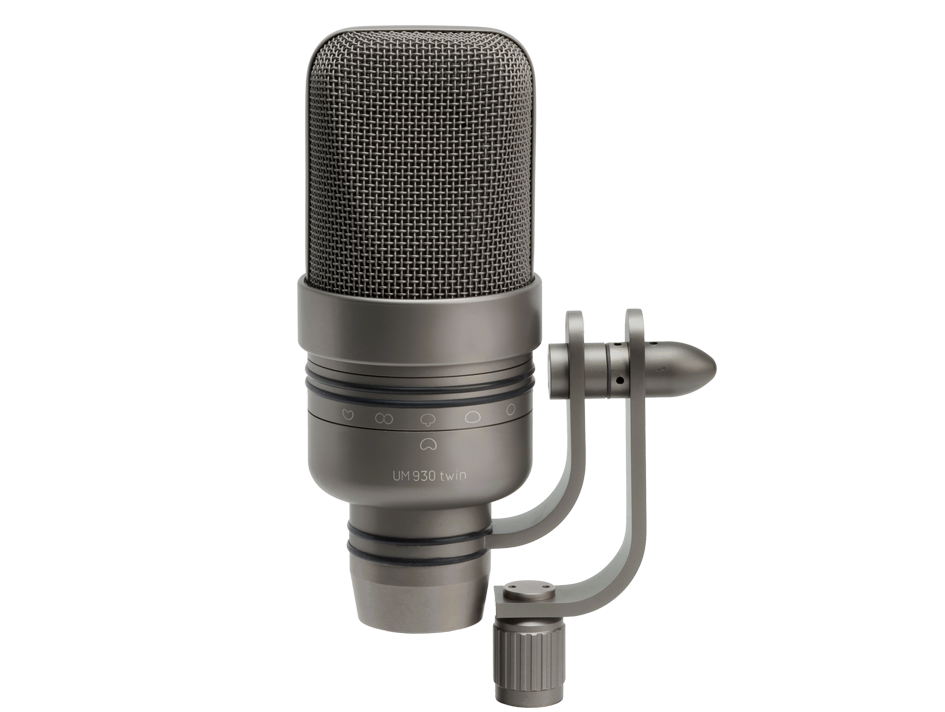

Microtech Gefell UM 930 Twin met MH80 houder | Satin Nickel

The UM 930 twin switchable pattern studio condenser microphone combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology. The optimized dual-capsule assembly opens up new applications in recording techniques. In addition to conventional switched patterns, two different directional patterns can be selected at the same time.The UM 930 twin is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. This microphone is ideally suited for universal miking applications in broadcast and sound studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboards, percussion, wind and string instruments.

UM 930 twin Cardioid

Technical data

Polar pattern omni, wide cardioid, cardioid, super cardioid, figure of 8

Acoustic operating principle pressure gradient transducer

Frequency range 20 Hz to 20.000 Hz

Sensitivity at 1 kHz20 mV/PA

Output impedance 100 Ohm

Noise levelCCIR 46  -413 dB

DIN EN 60268  -47 dB-A

Signal-to-noise ratio CCIR weighted81 dB

A-weighted 87 dB

SPL for THD 0,5 % 142 dB

Dynamic range 135 dB

Current consumption 4,5 mA

Output connector XLR5M

Weight 650 g

Length 158 mm

Diameter 65 mm

Surface satin nickel, dark bronze
