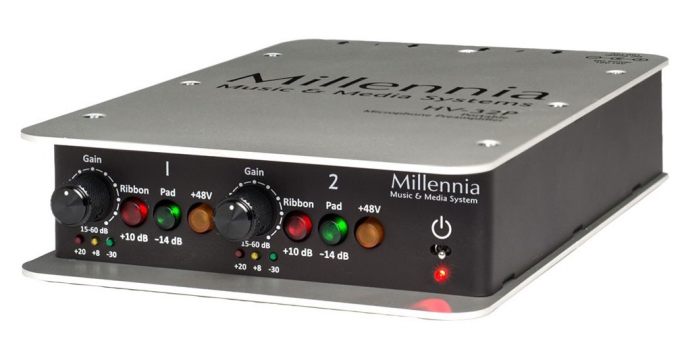

Millennia HV 32P

Authentic Transparency for Unrestricted Creativity

• Continuously variable gain control
• Selectable DC-coupled ribbon mic path with +10dB gain boost setting
• +48V phantom power
• -14 dB Pad
• 12VDC to 15VDC operation - 90VAC to 240VAC line lump power supply (12V output) included

Specifications

• Minimum Gain: 14.5 dB, 1dB with Pad
• Maximum Gain (continuously variable): 60 dB (70 dB in Ribbon Mode)
• Frequency Response (-3 dB): < 10 Hz to  > 200 kHz, typical -1.0 dB @ 10 Hz, typical  -1.5 dB @ 200 kHz
• Noise (60 dBu Gain, 10 Hz - 30 kHz, Inputs common): -130 dB EIN
• Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out): < .003%, Typical < .001%
• Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain: < .0006% +12 dBu Out, < .001% +20 dBu Out
• Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out): < 2 degrees deviation
• Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.): > 65 dB, Typ > 85 dB
• Slew Rate (35 dB Gain, +24 dBu Out): > 25 Volts per microsecond
• Maximum Input Level (20 Hz - 40 kHz): +12dBu @ 0.02% THD+N, +18dBu @ 0.02% THD+N with pad
• Maximum Output Level (1 kHz @ 35dB of gain, THD+N is): < 0.001% at +26dBu output, < 0.05% @ +28 dBu output
• Phantom Input Impedance (1 kHz): 2,210 ohms
• Output Impedance: 24.3 Ohms (x2)
• Phantom Powering: 48V dc +/- 2V dc
• Dimensions/Shipping Weight: 5.67" W x 1.69” H x 8.19” D, 3 lbs.
