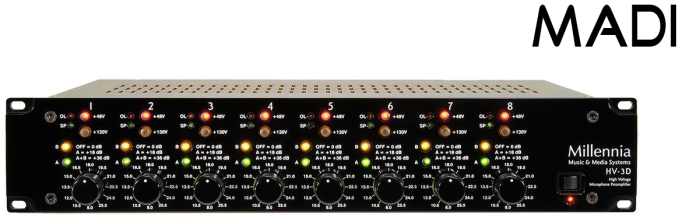

Millennia HV 3 D 8 MADI

Authentic Transparency for Unrestricted Creativity

• Unsurpassed ambience retrieval
• Transformerless design with matched hi-speed discrete transistor octet has +23 dBu input headroom: no attenuator “pads” needed
• Uncolored timbral accuracy at all dynamic levels
• Entirely balanced audio path with precision components maintains signal integrity: THD under 5 ppm (.0005%)
• Effortless, vividly realistic musical performance
• Laser-trimmed FET-based output stage has 32 dBu headroom: drives 1000 foot (300 m) cable runs with ease
• Standard 36-step gain controls (1.5 dB per step) are stereo matched to .08 dB
• Ultra-clean universal power supply life-rated for over 500,000 hours MTBF (90-240VAC)
• Grayhill gold mil-spec switching
• 24-bit 192 kHz eight-channel MADI output for HV-3D
• External Clocking from MADI stream
• Optical and BNC MADI input and output connectors
• External Word Clock input
• Industry standard i64 MADI style card
• Welded 16 gauge steel rack chassis
• Lovingly hand-crafted in Northern California

Options:

• Ribbon optimized DC coupled input
• Extra 10dB gain
• DPA 130V input
