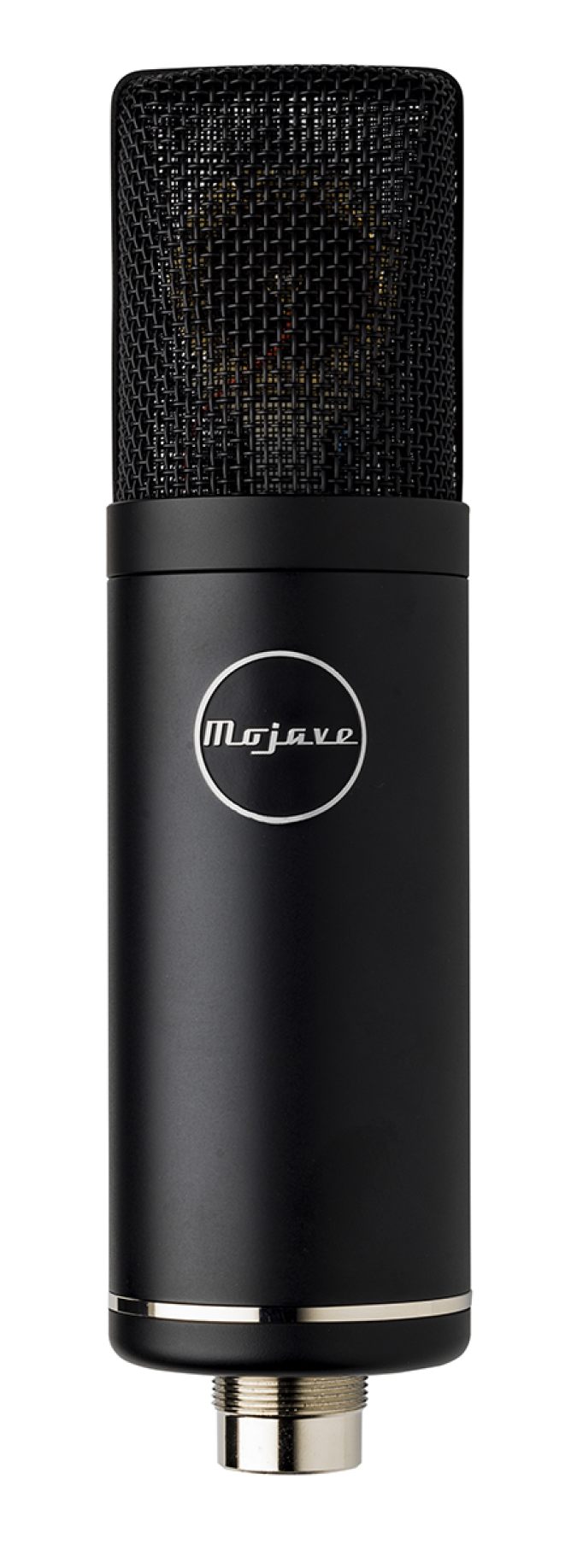

Mojave MA 50 BLK

MA-50BLK

The challenge? Create a transformerless microphone circuit without
the inherent problems found in transformerless microphones. TECHNICAL
GRAMMY® Award-winning microphone designer David Royer has
created a thoroughly modern microphone that rises to that challenge:
the new MA-50BLK. Designed to produce the clarity and realism that
Mojave microphones are known for, at an entry level price, the MA-50BLK
outperforms well-known transformerless mics costing many times
more.

The MA-50BLK is the perfect microphone for pros and semi-pros alike.
Utilizing the same single-sided capsule as the MA-200SN and MA-201VG, it handles
the fastest transients with ease – even up to 140 dB.

Features:

• Large-diaphragm cardioid 3-micron capsule
• Fixed-cardioid polar pattern
• Transformerless circuitry
• Very low noise

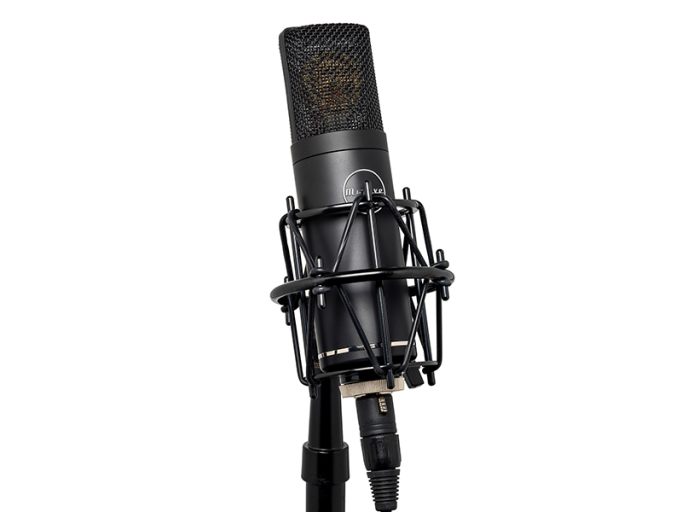

• Includes professional shock mount
• Simple – yet elegant design - perfect for home recording
• High SPL handling
• Fast transient response

Recommended applications:

• Vocals
• Voice-over
• Acoustic Instruments
• Drum Overheads
• Percussion Instruments
• Foley/ADR

TECHNICAL DATA

TRANSDUCER TYPE: Externally polarized pressure gradient capacitor

DIAPHRAGM: 1-inch diameter, gold sputtered

DIAPHRAGM THICKNESS: 3-microns

POLAR PATTERN: Cardioid

FREQUENCY RESPONSE: 20 Hz- 20 kHz, + 3 dB

SENSITIVITY: -40 dB re. 1V/pa

MAXIMUM SPL: 125 dB

DISTORTION: <0.5% @140 dB SPL

SELF NOISE: Better than 16 dB (A weighted)

IMPEDANCE: <100 ohms

RECOMMENDED LOAD: 1500 ohms or higher

POWERING: 48VDC phantom power; current 2 mA.

DIMENSIONS AND WEIGHT:

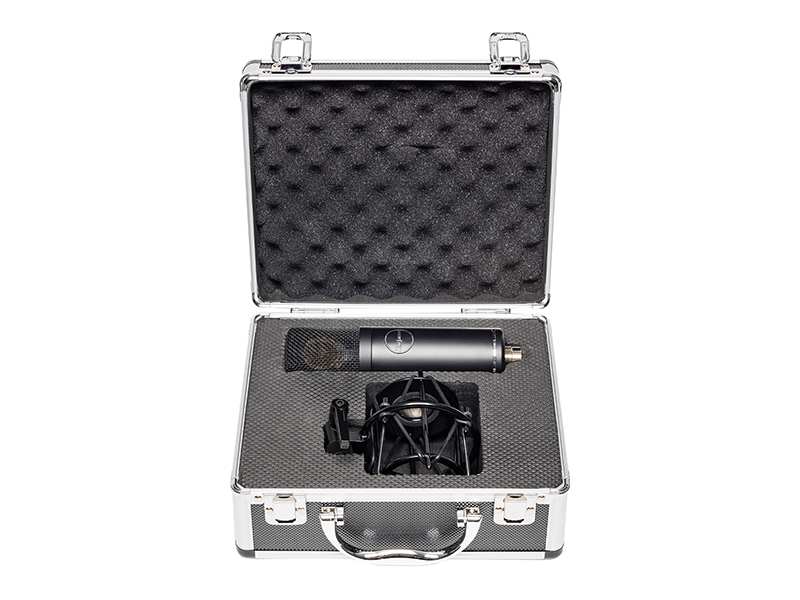

Carrying case with microphone, shock mount: 10” x 9” x 4.5”, 4 lbs.
Microphone: 7 5/8” X 2” (194mm x 51mm), 1 lb. (0.45Kg)
