Product omschrijving

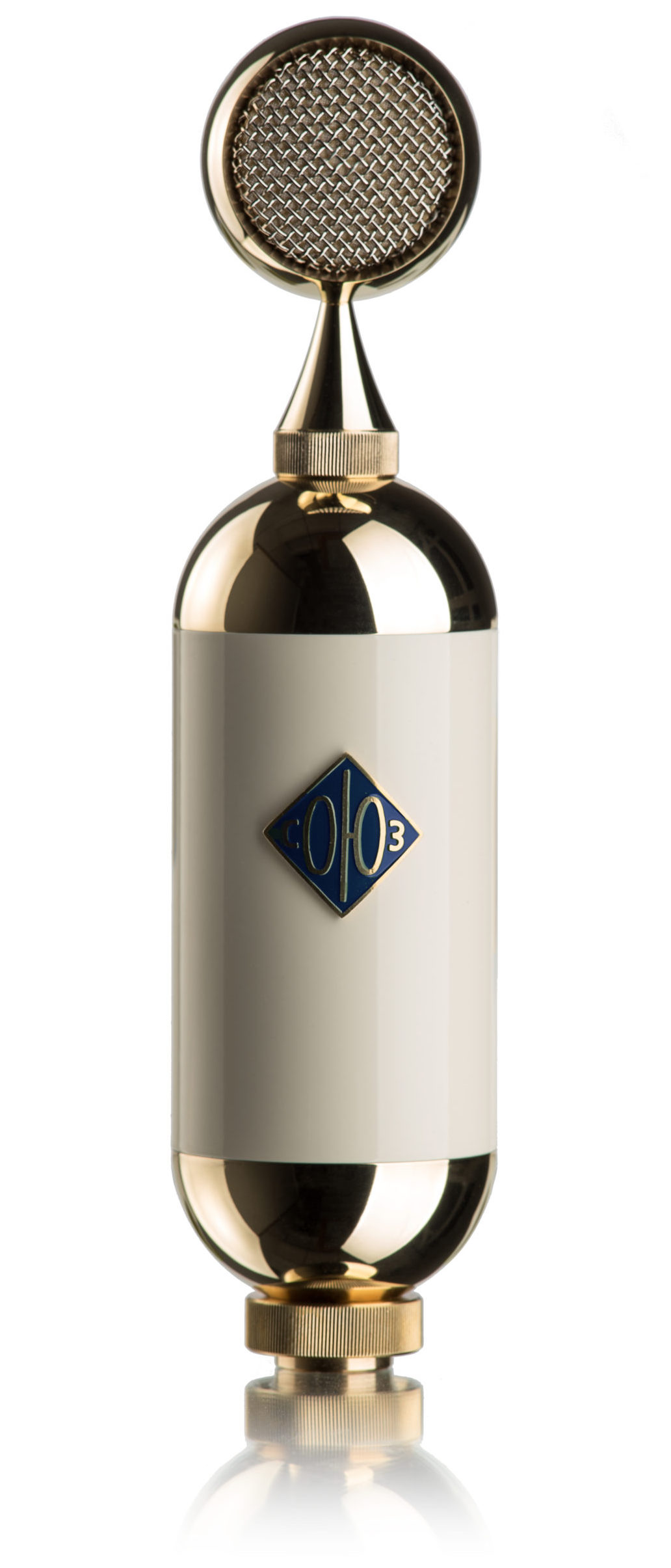

Soyuz 017 TUBE

Large Diaphragm Condenser Microphone

Open and graceful top-end. Warm midrange. Full and balanced low-end.
Custom large capsule designed and machined in-house.
Proprietary toroidal transformer imparts color and depth.

Larger than life

THE TSAR OF MICS

The classic sound of the 017 was previously considered impossible to achieve with new microphones. Engineers routinely spent small fortunes on vintage condensers and fought to keep them operational as they aged as new models – and even reissues – were often not imbued with the same desired characteristics despite their hefty price tags. This is not surprising: manufacturing techniques have changed, why wouldn’t the results?

With its open top-end, smooth mid-range, powerful – yet balanced – low-end, and remarkably robust build quality, the 017 is destined to be the future benchmark of that elusive mixture of accuracy and sonic flattery that has sent vintage prices soaring.

Specifications 017 Tube

Type: Tube condenser microphone
Capsules: two 34mm membranes (one gold sputtered)
Frequency Range: 20Hz / 20kHz
Polar Pattern: cardioid
Sensitivity: 40 mV/Pa
Impedance: 270 Ohms
SPL: 140 dB
Equivalent Noise: 20 dB Equivalent Noise - 20 dB (a-weighted)
Tube Type: 6ZH1P
Power: dedicated power supply - BP – 017
Size: 226mm length x 55mm diameter
Weight: 950g (single microphone)

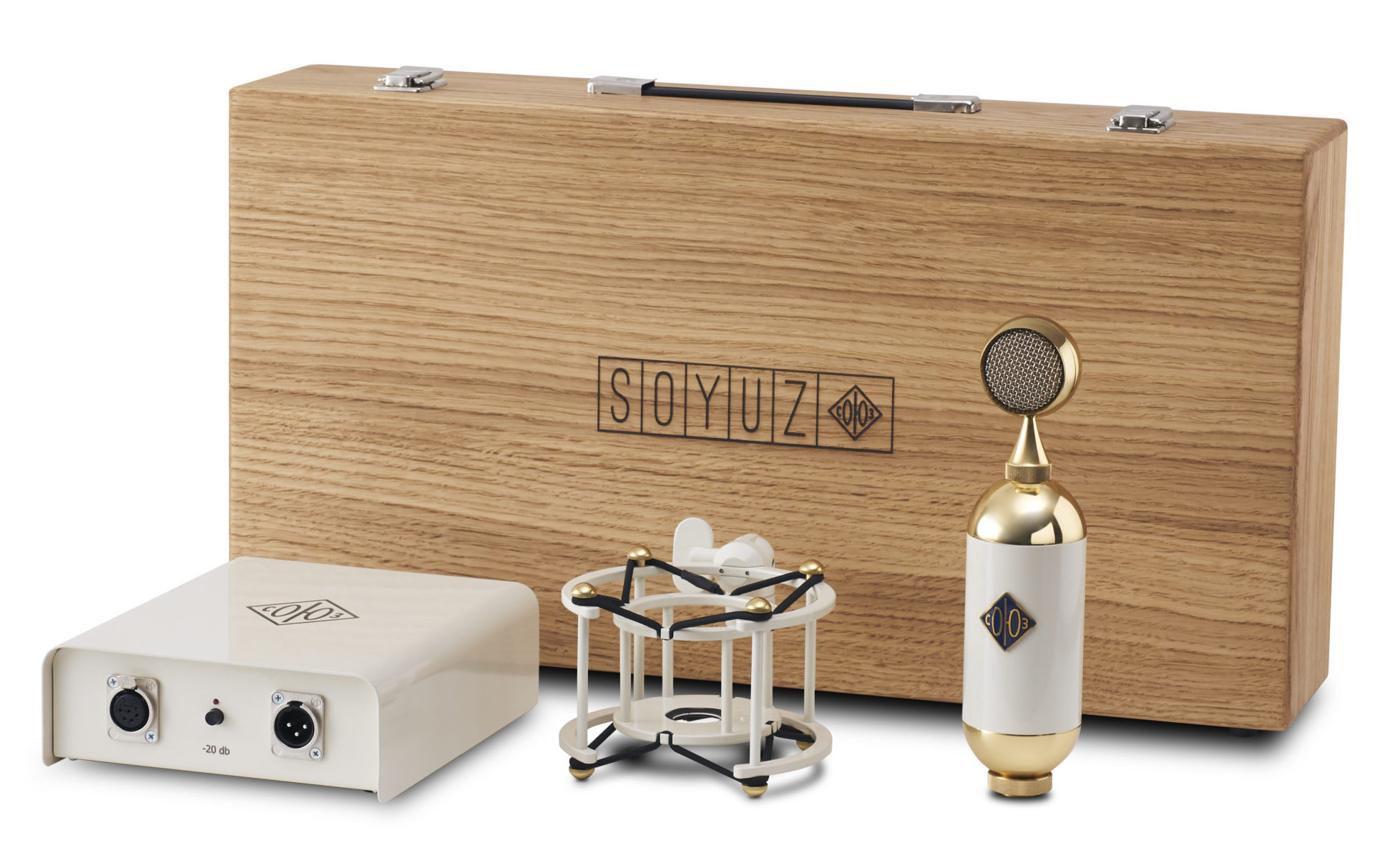

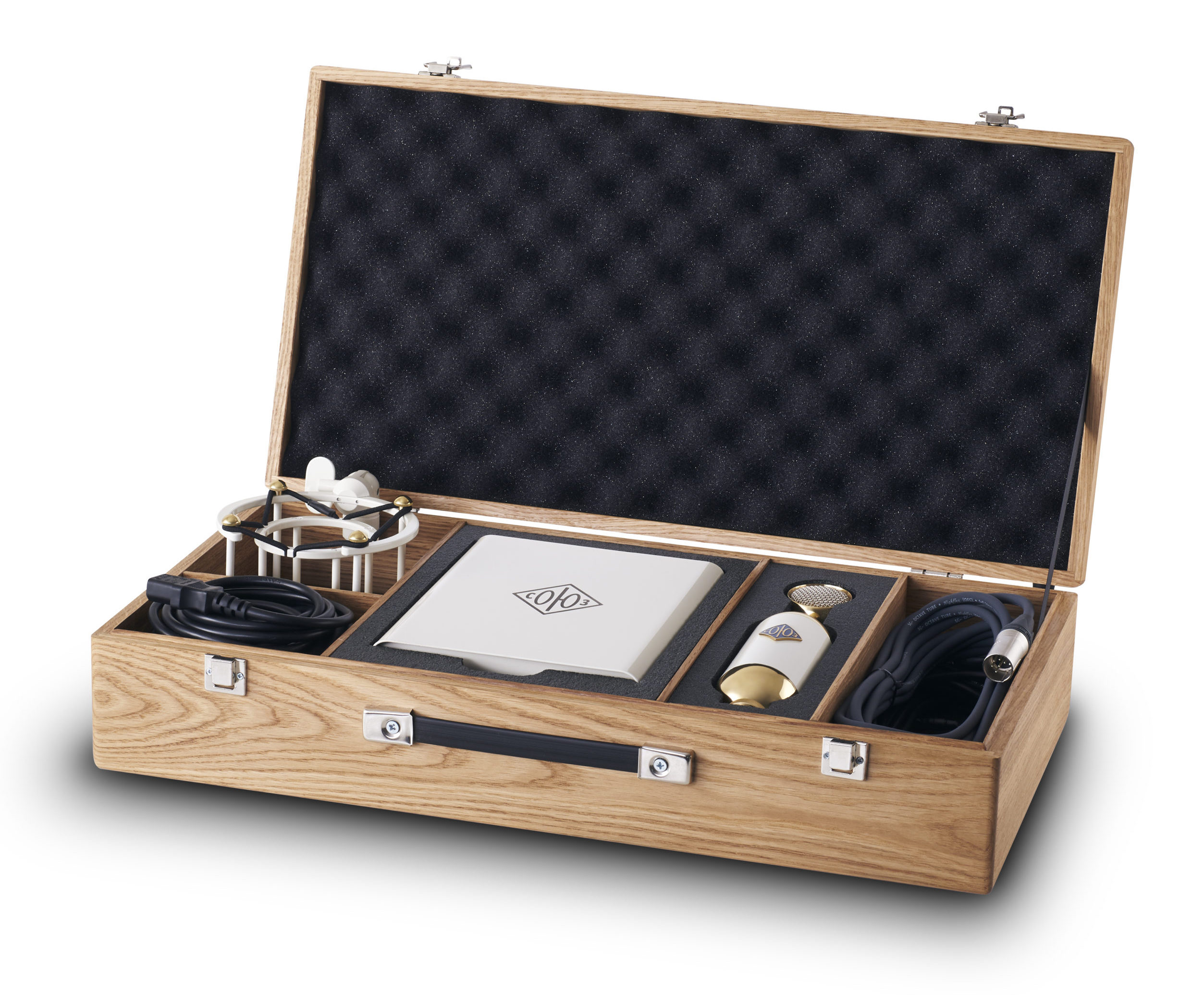

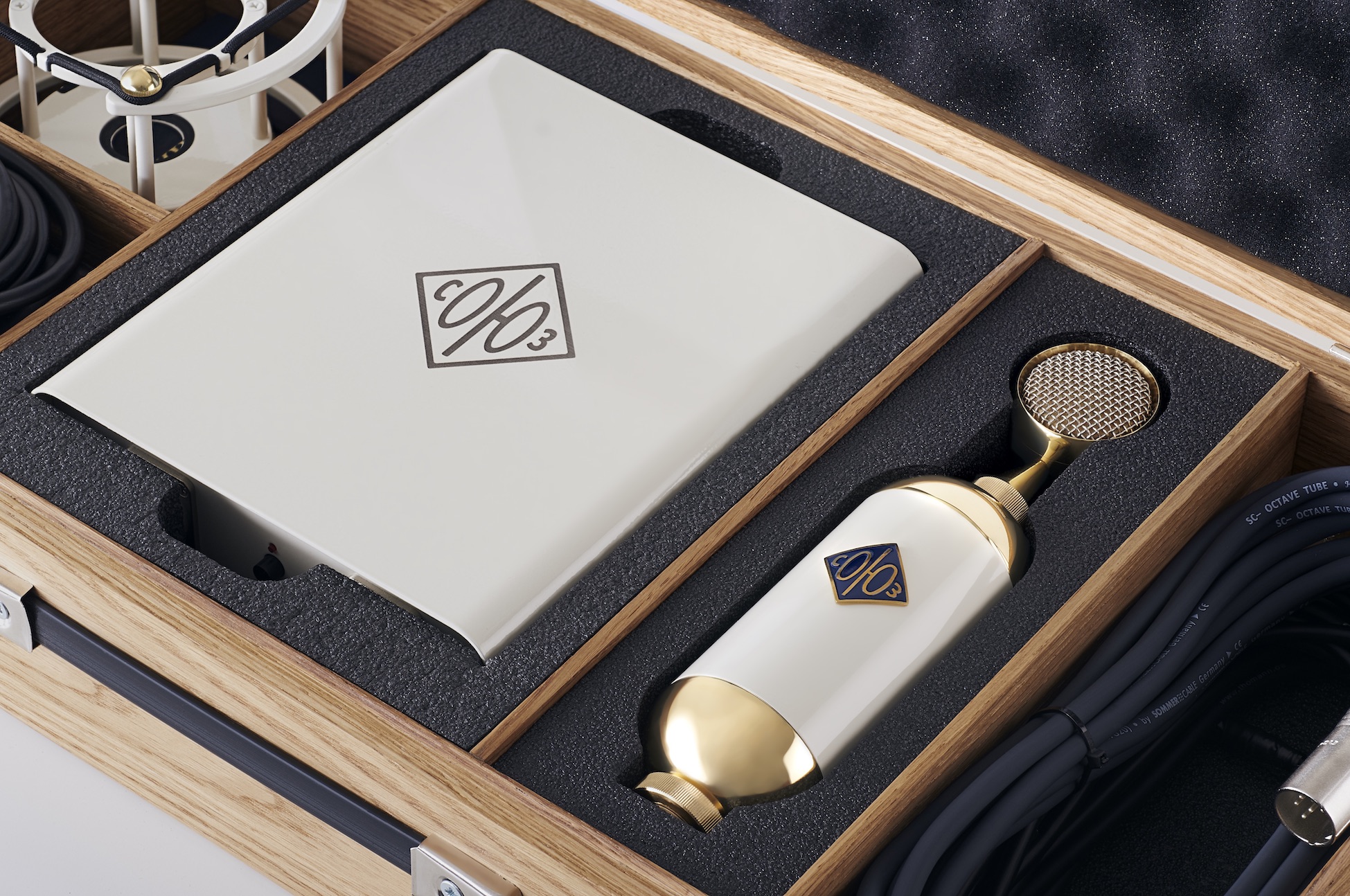

Extras: wooden oak suitcase, power supply unit with -20db pad, 6 pin cable, custom shock mount and hard mount, spare tube

Tube (blue-badged) or FET (green-badged)

The 017 Series is comprised of FET (field effect transistor) and tube (valve) powered models. Though the FET and Tube models are similar – the two share identical capsules, form factors, and sonic signatures – there are subtle differences between them. The 017 FET captures transients with a somewhat faster, tighter response; the 017 TUBE’s smoother, rounded top-end is perfect for sources requiring warmth with slightly more coloration.
