Soyuz Lakeside Preamp

Soyuz Lakeside Preamp

Enkelkanaals klasse-A voorversterker met een onderscheidend geluid dankzij de op maat gemaakte transformatoren op de in- en uitgang

Lakeside

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Jaarverhuur

€1.09/ dag

Voeg toe aan jaarverhuur +

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Soyuz Lakeside Preamp

Single Channel Class-A Preamp

MAKE SOMETHING BEAUTIFUL

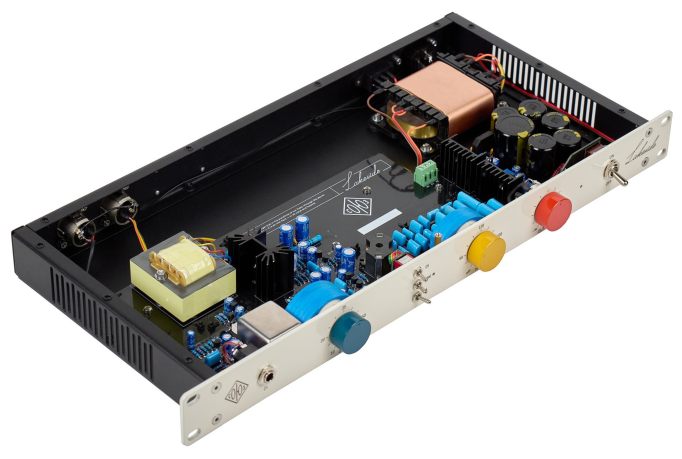

The Soyuz Lakeside Preamp is an all-discrete, single-channel, Class-A preamp with a distinctive sound designed to stand out in your signal chain and elevate your recordings. Using custom transformers on the input and output and engineered with meticulous craftsmanship, The Lakeside adds a lush character and dimension to any microphone, instrument, or source.

The Lakeside is the perfect preamp for capturing vocals that come alive through your speakers, guitars that convey emotion, drums that strike with a musical texture, and any other source needing a colorful polish. Easy to use and remarkably versatile, The Lakeside preamp offers an effortlessly “finished” sound to every recording, making it an indispensable piece of any studio or setup.

The Soyuz sound

For over a decade, Soyuz has been synonymous with exceptional, original, hand-crafted microphones that blend classic character with modern innovation. Now, the Lakeside series brings that same level of intentional design and engineering to the world of outboard gear. From the first moment you power it on, you’ll understand why The Lakeside preamp is poised to become a prized component in any signal chain.

Specifications

Mic Input Impedance: 1.2k
DI Input Impedance: > 1M
Output Impedance: < 80 Ohms
Gain Boost: 10-60dB in increments of 5dB
Frequency Response: 20Hz-20kHz (±0.5dB) with the gain of 40dB loaded with 600 Ohms 8Hz-40kHz (±5dB) with the gain of 40dB loaded with 600 Ohms
Equivalent Input Noise: -120dB with the gain of 40dB loaded with 600 Ohms
THD+N: <0.02% with the gain of 40dB loaded with 600 Ohms and the output of +18dBu
Cutoff Filter: 18dB/oct (-3dB) = 40, 55, 70, 90, 120, 150, 180, 220, 270, 330Hz
Max Output: +27dBu (0.2% THD), +31dBu (1.5% THD)
Size: 440mm width (483mm face plate), 214mm depth, 44mm height
Weight: 4.96kg
