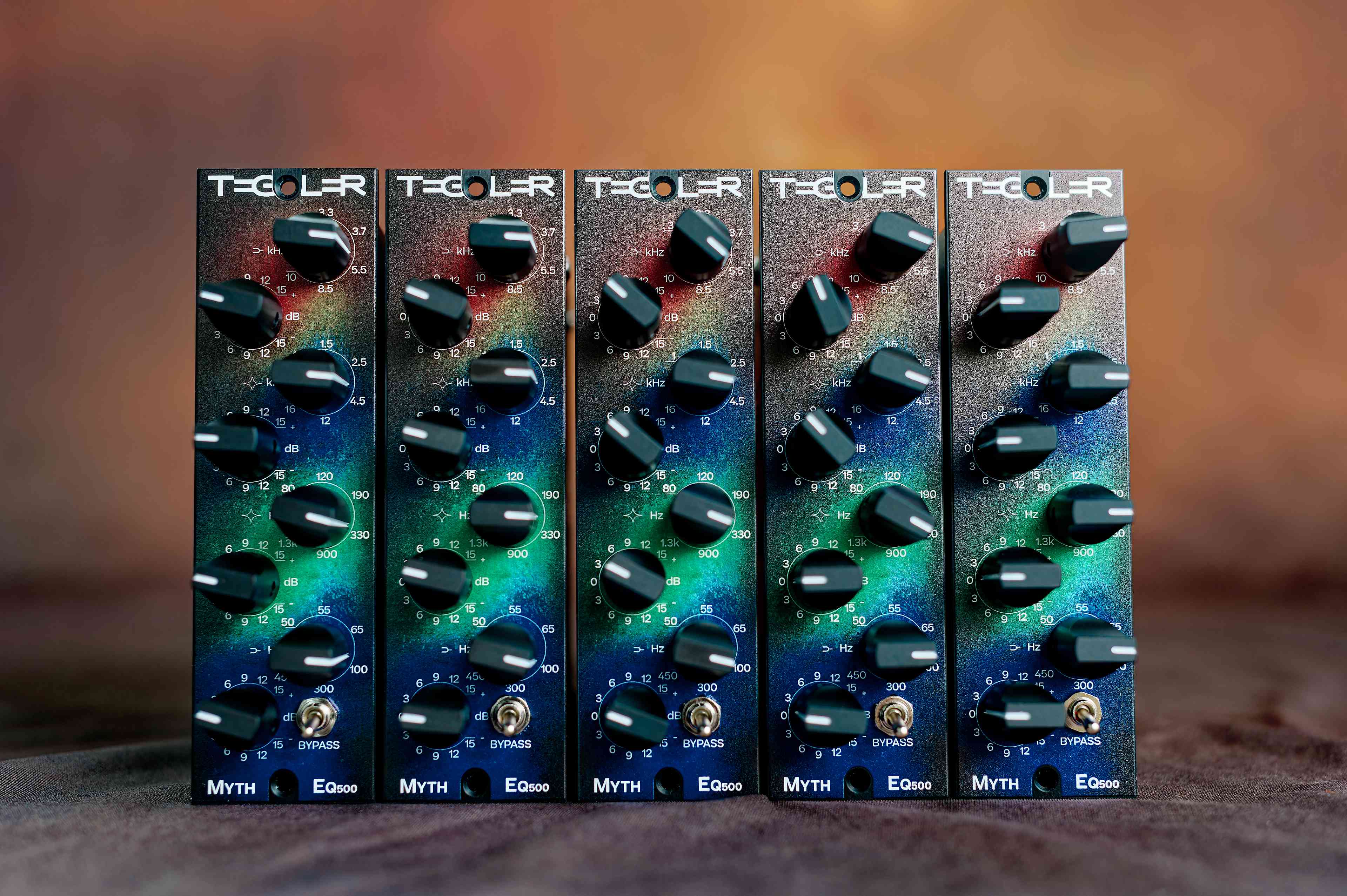

Tegeler Audio MythEQ 500

Actieve equalizer met state-of-the-art film capacitors

500 series

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

MythEQ 500

500er Magical Equalizer

The Tegeler Audio MythEQ 500 is ready to change what you think about equalization. By using state-of-the-art film capacitors, the MythEQ 500 delivers incredibly precise boosts and cuts, with a crystal-clear sound bite coupled with the Tegeler sound that you are already used to.

With four bands distributed across the frequency spectrum, the ranges of the high/low shelves and mid bells were conceived to bring the best possible sound out of the film capacitors, providing both powerful gain and sharp attenuation when needed.

It does not get much easier than this – with 4 knobs for band selection and boost/reduction and a bypass switch, equalizing your sound will be as fast as humanly possible. And with the stepped potentiometer, you can also feel the sound changing at the tip of your fingers, and easily go back to any preset that works for you.

Anything you want

The MythEQ 500 is perfect for equalizing main outputs and mix buses in a way that will not mess up any filtering that is already in place, but it can do so much more than that.

Any percussive instrument will be easily tamed or made more punchy with this little guy. A bass guitar will get as heavy as you want it to be, without becoming muddy. Mixing guitars and vocals? Then get ready to see the mids really shine.

There are really no restrictions when it comes to the MythEQ 500: it can help you with any sound source you throw at it. Just try it for yourself and let it do its magic.



Specifications

  • Frequency response: 20Hz-40kHz
  • Maximum input level: +20dBu
  • Input impedance: ≥2.4kΩ
  • Output impedance: <600Ω
  • Maximum output level: +21dBu
  • Dynamic range: ≥100dB
  • Supply voltage: +-16V
  • Maximum current consumption: 80mA
  • Size: standard API 500 module size
  • Weight: 540g

Features

  • API-500 series mono equalizer
  • Toggle switch: in/bypass
  • High band shelf filter: 3kHz, 3.3kHz, 3.7kHz, 5.5kHz, 8.5kHz, 10kHz
  • Upper midrange bell filter: 1kHz, 1.5kHz, 2.5kHz, 4.5kHz, 12kHz, 16kHz
  • Lower midrange bell filter: 80Hz, 120Hz, 190Hz, 330Hz, 900Hz, 1.3kHz
  • Low band shelf filter: 50Hz, 55Hz, 65Hz, 100Hz, 300Hz, 450Hz
  • Maximum boost/cut: +-15dB
