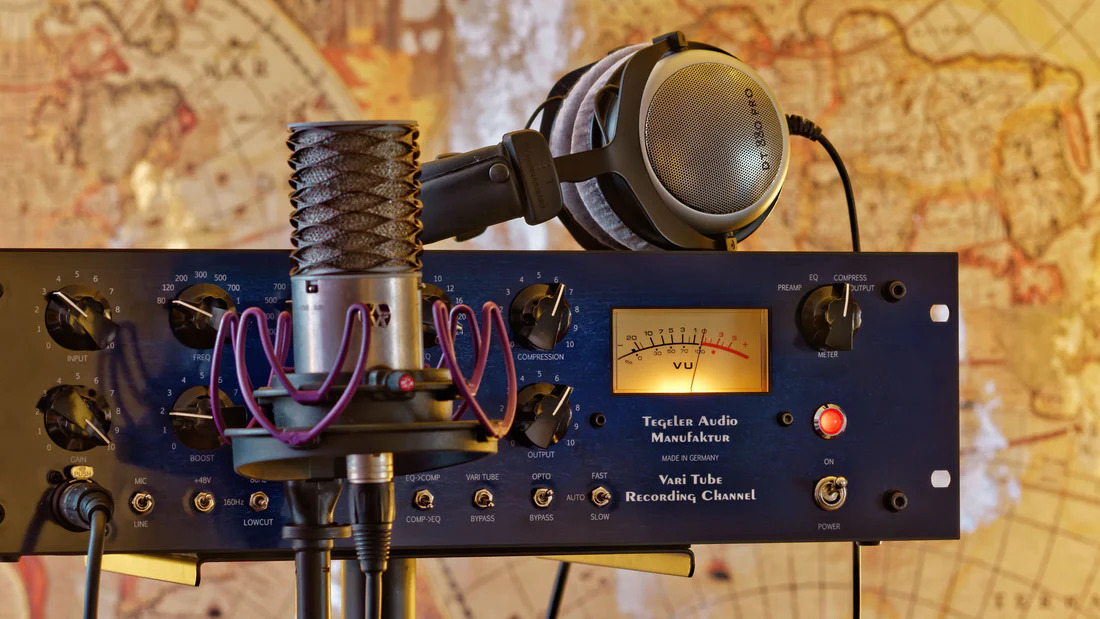

Tegeler Audio Vari Tube Recording Channel

Optical Compressor

An LED beams onto a light-sensitive resistor and regulates the gain depending on the level. The automatic control of the compressor timing is additionally supported through the memory effect of the resistor. The result is an open-airy and softer compression which keeps the level nicely static but hardly alters the microdynamics of the signal.

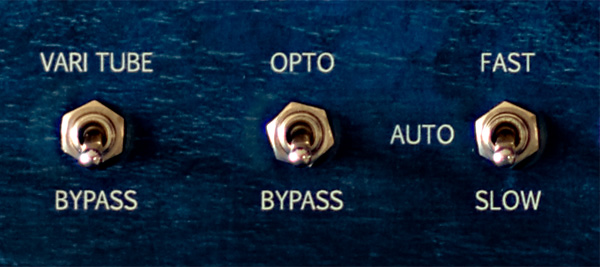

Vari-Tube Compressor

With this setting the amplification of a control tube is influenced directly. The control happens directly through the optical compressor. The result is a sound that will find its place even in a dense mix with a sinister presence while never losing its warmth.

General features

• Tube device (3 Triodes)
• Class-A circuit
• Frequency response: 20 – 20.000 Hz +/- 1,5dB
• Stepped Potentiometers
• Transformer balanced inputs and output
• Internal power supply with toroidal transformer

Microphone Preamp features

• Microphone preamp with transformer / 48V / Phase
• True 48V phantom power
• Phase switch
• High-impedance instrument input(100 kOhm)
• Character changeable from clean to fat

Equalizer features

• Low-cut: 80-160Hz
• Low-mid boost: 80-120-200-300-500-700-1000 Hz
• Mid-cut: 200-300-500-700 Hz 1-1,5-2-3-4-5-7 kHz
• High boost: 1,5-2-3-4-5-7-10-12-16-20-24 kHz

Compressor features

• Opto compressor
• Vari-Tube compressor (vari-µ)
• Soft-Knee
• Program-adaptive attack and release timing

Specifications

• Frequency Response: 20Hz - 22kHz
• Maximum Mic Input Level: +12 dBu
• Maximum Line Input Level: +20 dBu
• Maximum Instrument Input Level: +6 dBu
• Line Input Impedance: ≥ 2.4kΩ
• Instrument Input Impedance: ≥ 100kΩ
• Output Impedance: < 600 Ω
• Maximum Output Level: +24 dBu
• Dynamic Range: ≥ 95 dB
• Voltage: 230 V~/50Hz or 115V~/60Hz
• Fuse: 500 mA slow-blow
• Maximum Power Consumption: < 25 W
• Dimensions: 3 U, H:132 mm, W:483 mm, D:250 mm
