UK Sound  (by BAE)  MPL

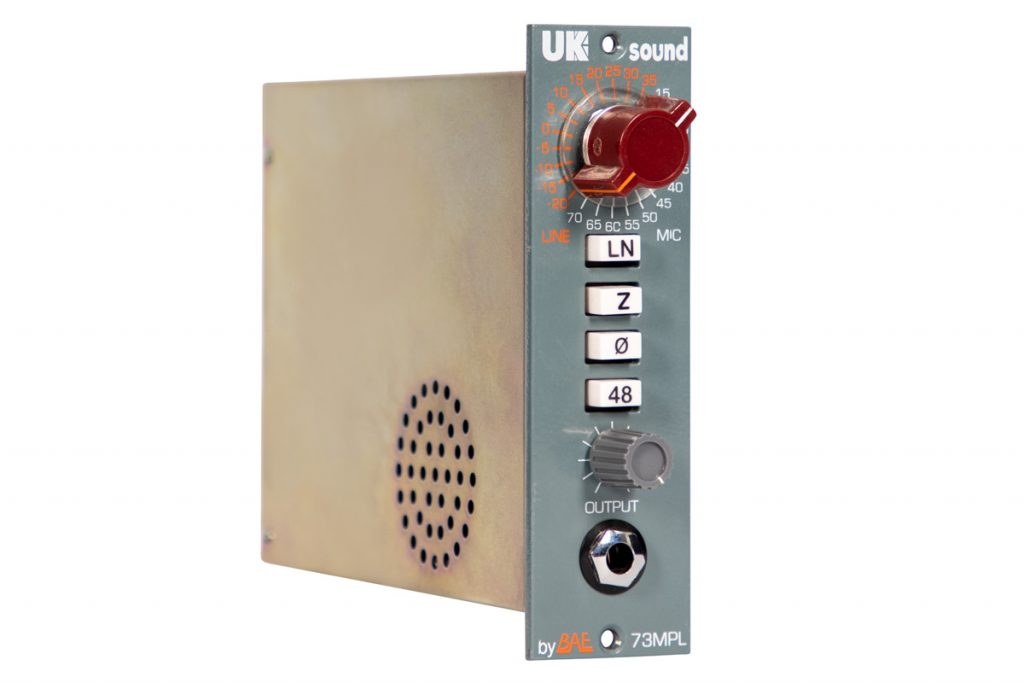

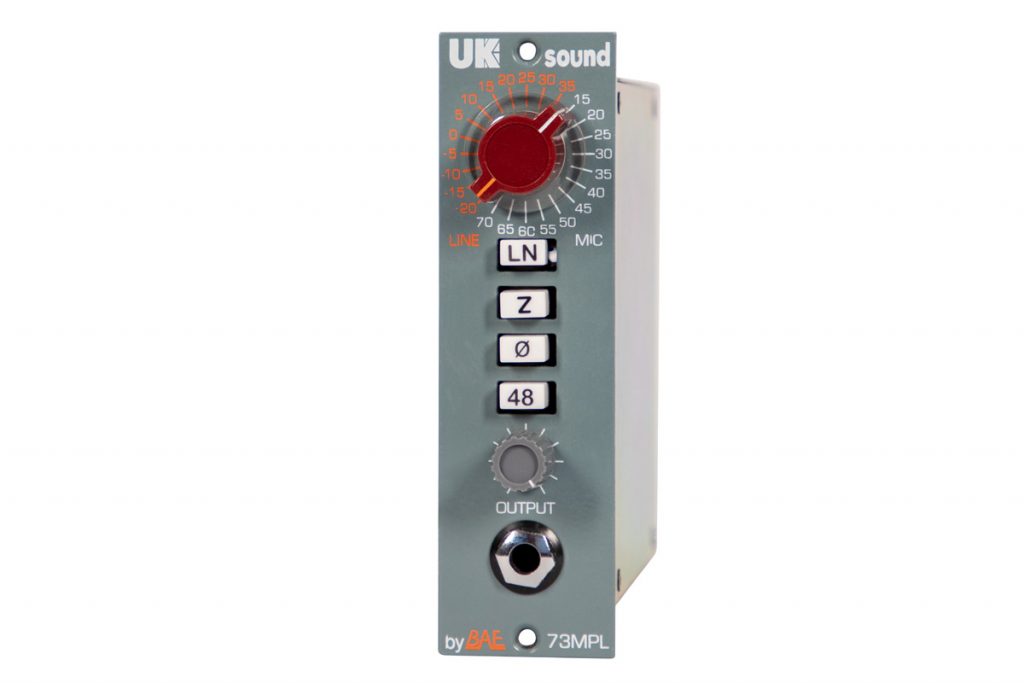

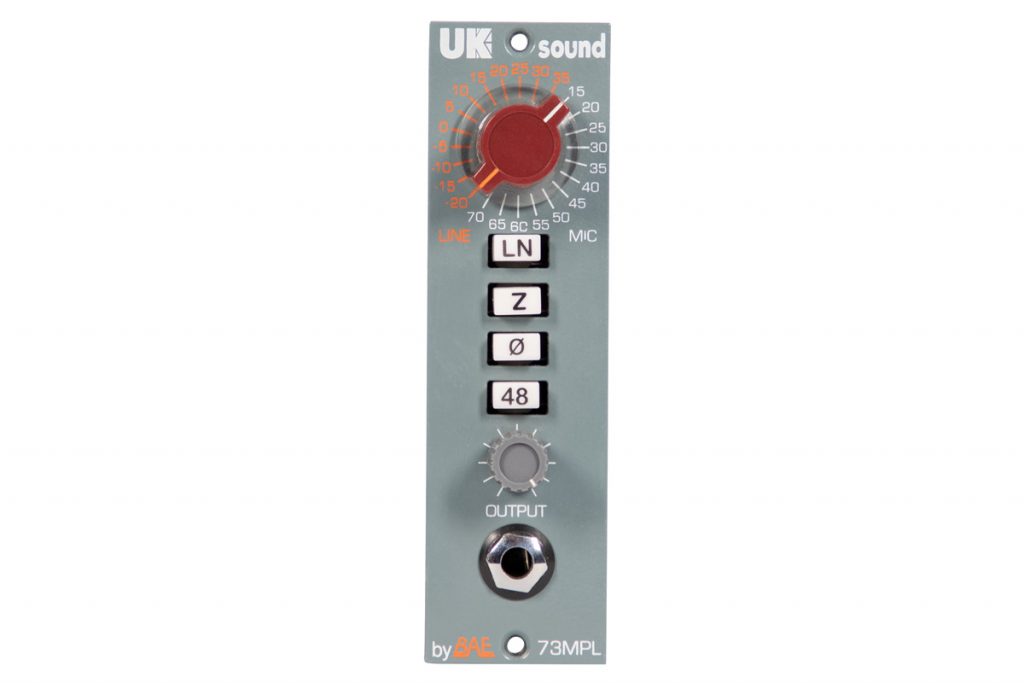

MPL 500 Series Mic Pre

This is the 500 Series version of the 73MP (a mic pre-amp version of the 1073 equaliser) having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

Two selectable impedances makes the MPL works well with a variety of microphones.

As a coloured and versatile mic-pre, the MPL maintains its sonic signature across a wide bandwidth.

Specifications:

Frequency Response
6Hz to -3dB at 75kHz
Flat within 0.5dB between 20Hz and 20kHz

Mic Input Impedance
≈600/150 ohms

Line Input Impedance
10k ohms

DI Input Impedance
≈150k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600Ω

Power Requirements
115/230 VAC, 30W

Gain dB
0 to 71 dB

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth
