United Studio Technologies UT FET47

Let's FET it on

The Legendary FET Classic Returns

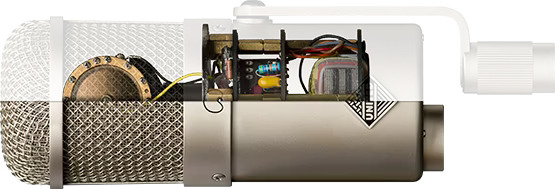

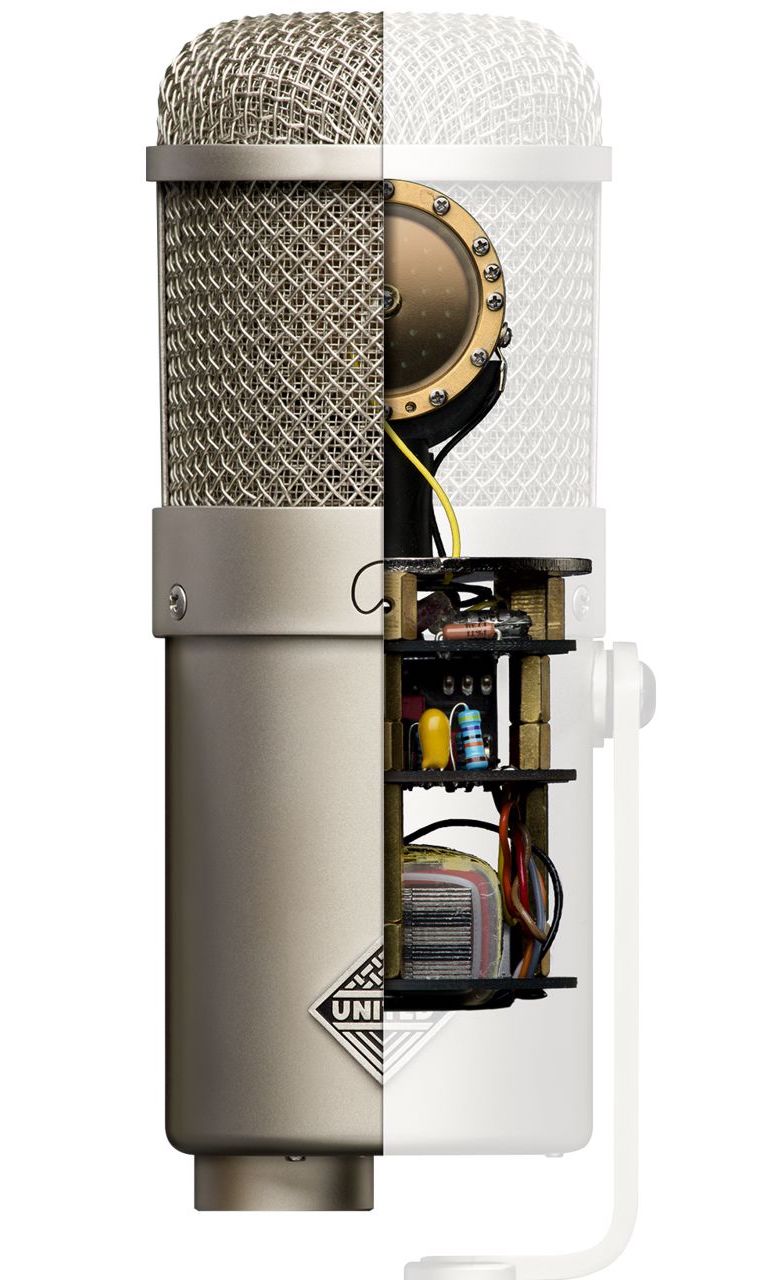

It’s a labor of love. The UT FET47 represents several years of R&D, blood, sweat, and tears — all to capture the essence of one of the most beloved and classic solid state condenser microphones, and recreate it for the modern recordist. The sonic qualities you’ve been chasing have arrived — at an accessible price, with uncompromised quality. The UT FET47 features a custom Cinemag transformer, a custom Heiserman designed HZ-Series capsule, and a selection of the best polystyrene capacitors, and FETs. Custom parts. Vintage new-old-stock parts. Mix that together with each microphone being built in the USA by actual recording engineers, and you have the UT FET47.

Specifications

• Type: Condenser Microphone
• Capsule: HZ Series 34mm all-brass, dual-backplate K47
• Diaphragm: Dual-diaphragm, 6 micron, 24k gold sputtered Mylar (PET film)
• Capsule Sensitivity:-37dB @ 60v
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid
• SPL: 136 dB (145 dB w/ Pad) @ <.5% THD
• Output Impedance: 150 Ω

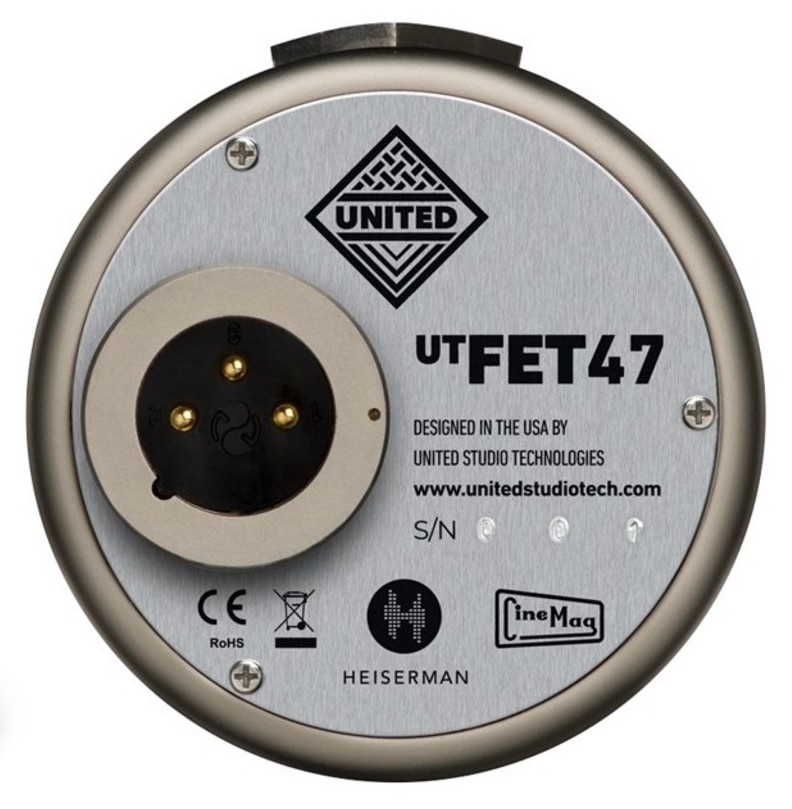

• Ouput Connector: 24k gold plated XLR, pin 2 HOT, pin 1 GND
• Amplifier Type: Field Effect Transistor
• Self Noise: <10 dB (no pad, no HPF)
• Output: Cinemag USA transformer balanced

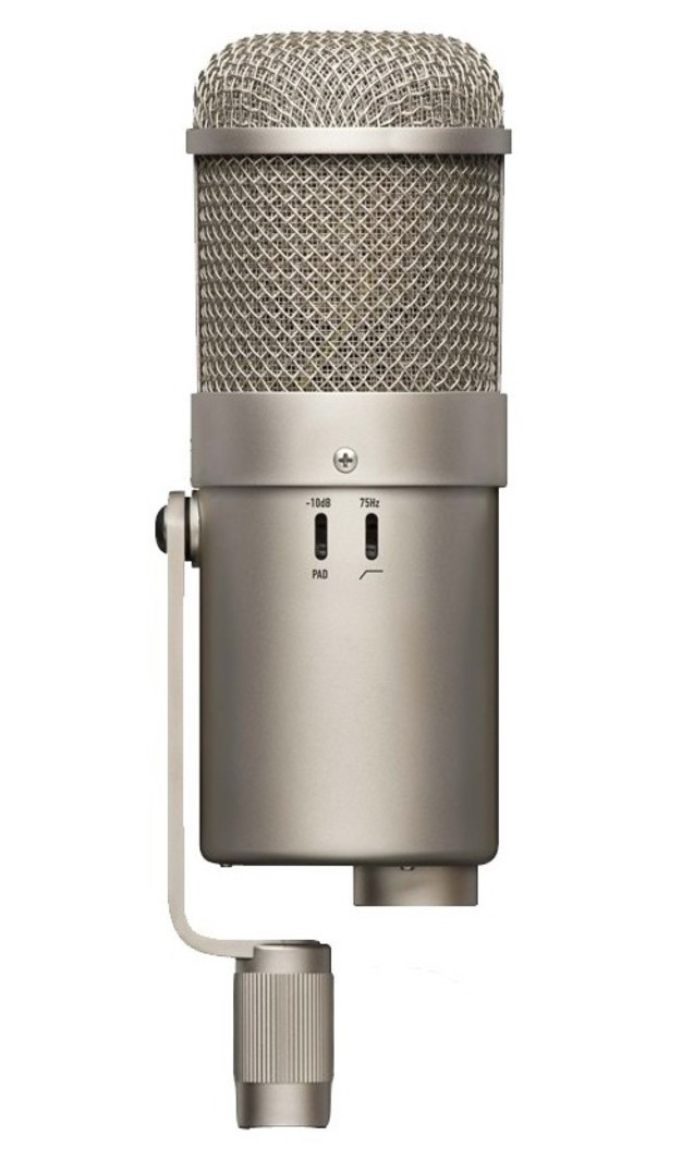

• High Pass Filter: 75 Hz (-12dB down point)
• Pad: -10dB
• Body: Nickel electroplated, solid milled brass
• Mount: Self-contained stand swivel mount adapter
• Ground: Pin 1 XLR (required)
• Power Input: 48v Phantom Power (via XLR)
• Included Accessories: Vintage-style pouch
• Dimensions: Height: 200 mm / 7.9″, Width: 70 mm / 2.7″, Diameter: 63 mm / 2.4″
