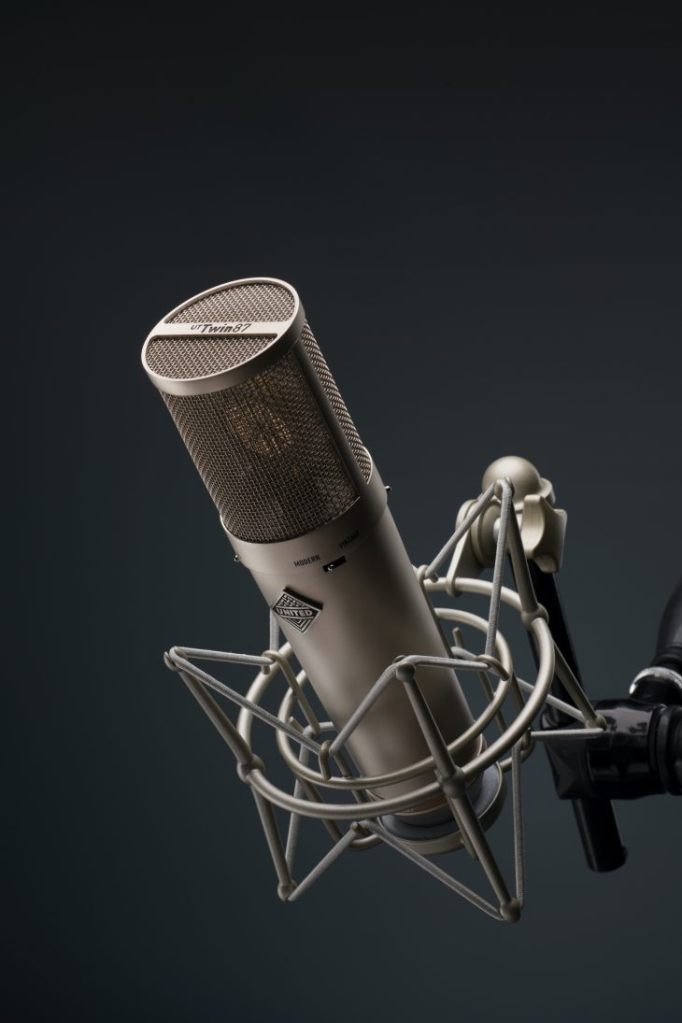

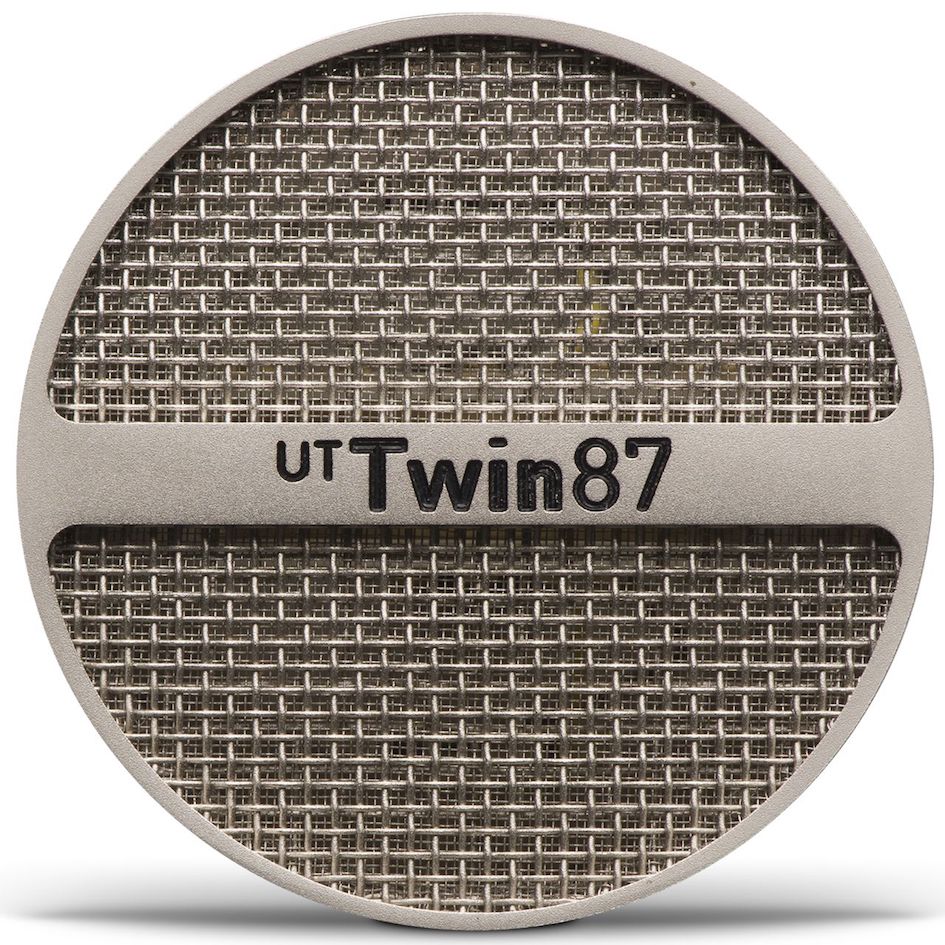

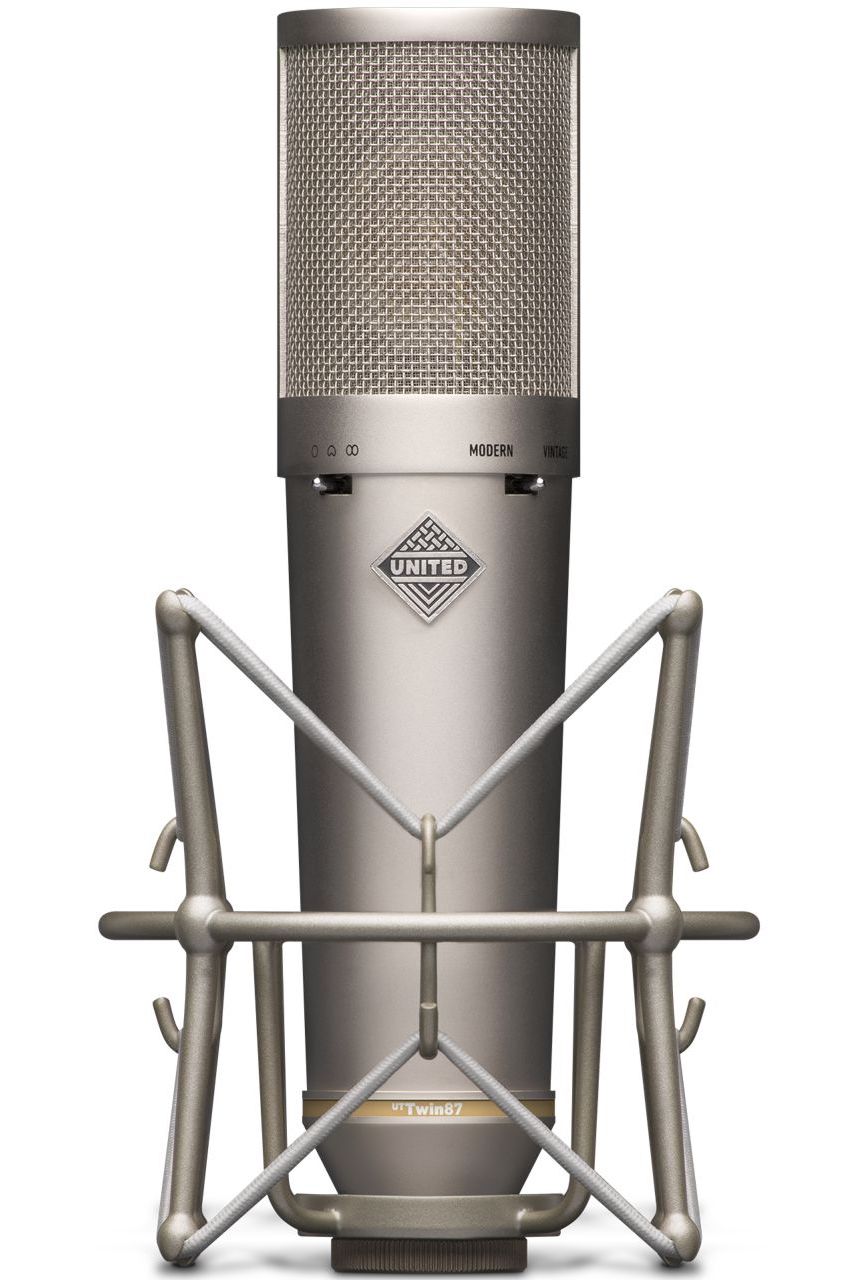

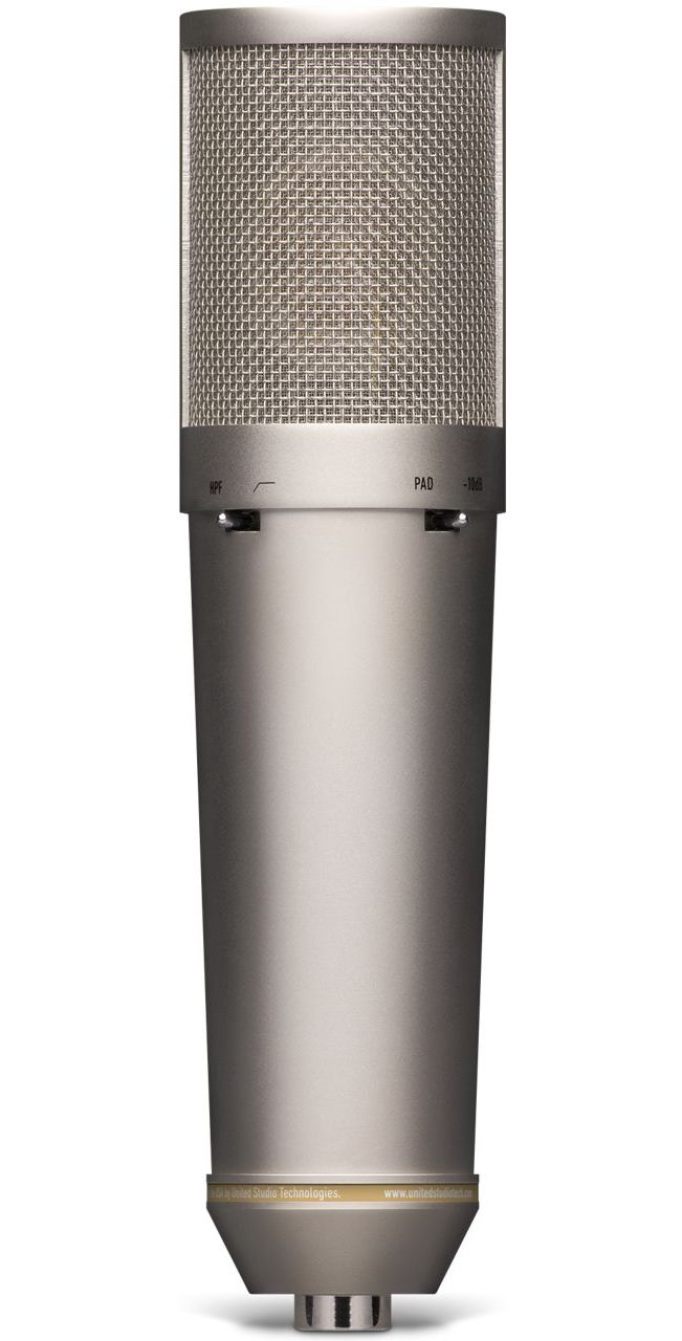

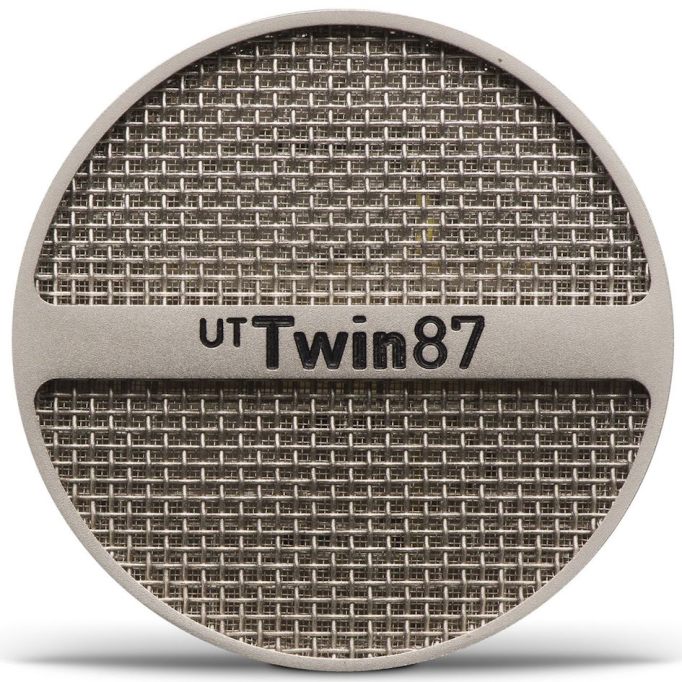

United Studio Technologies UT Twin87 | LPA special

The Definitive Vocal Microphone.

The debate is finally over.

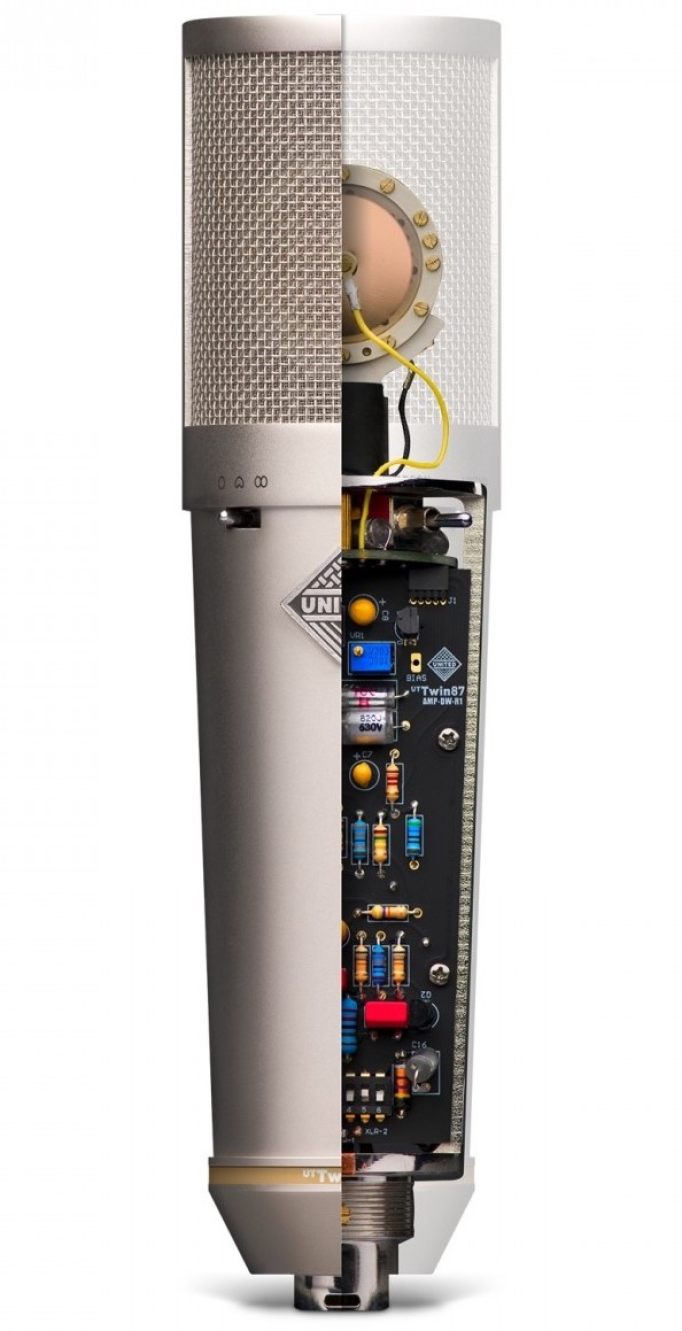

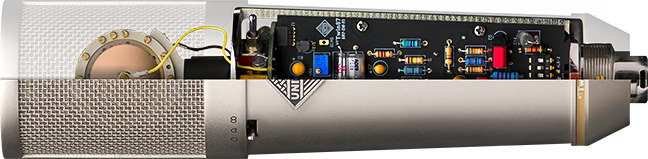

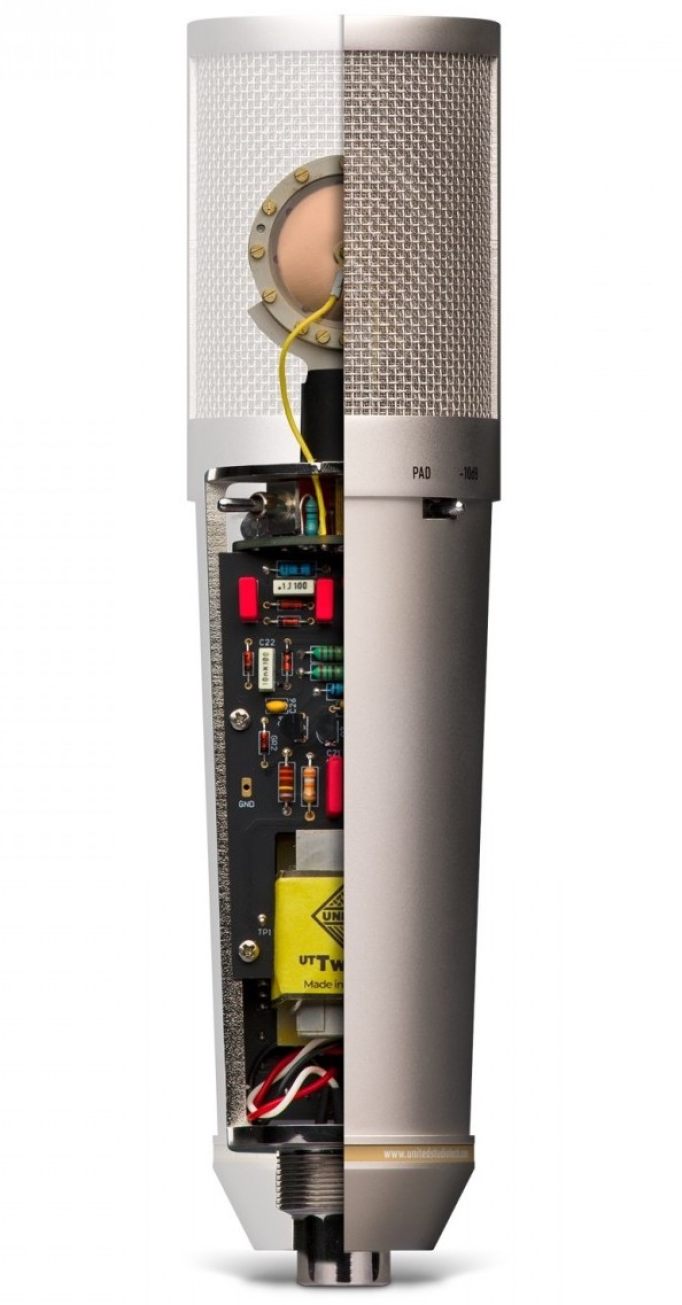

The UT Twin87 captures the essence of both the original classic and modern incarnations of the “87-style” microphone design. For the first time ever, United has created a microphone that duplicates both circuits, and can reconfigure itself on the fly for an exceptional reproduction of the sonic capabilities of both microphones. The UT Twin87 features United’s own large-core, custom-wound, US-made output transformer, United’s custom made 24k gold sputtered dual diaphragm/dual backplate K87 style capsule, and a whole assortment of selected, premium components such as polystyrene, tantalum, multilayer ceramic, WIMA film capacitors, metal and carbon film resistors, and hand-selected transistors.

Vintage, or modern? The UT Twin87 finally ends the debate with a new answer — both.

Specifications

• Type: Condenser Microphone
• Capsule: UT Series, 34mm brass, insulated dual backplate K87
• Diaphragm: Dual-diaphragm, 6 micron, 24k gold sputtered Mylar (PET film)
• Capsule Sensitivity: -34dB @ 60v
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid, Omni, Figure-of-8
• Operating Modes: 2; Modern and Vintage
• SPL: 117 dB (127 dB w/ Pad) @ <.5% THD
• Output Impedance: 27 Ω
• Ouput Connector: 24k gold plated XLR, pin 2 HOT, pin 1 GND
• Amplifier Type: Field Effect Transistor
• Self Noise: <10 dB (no pad, no HPF)
• Output: Custom-wound UT Series transformer, made in USA
• High Pass Filter: 80hZ (12dB down point)
• Pad: -10dB
• Body: Nickel electroplated, solid milled brass

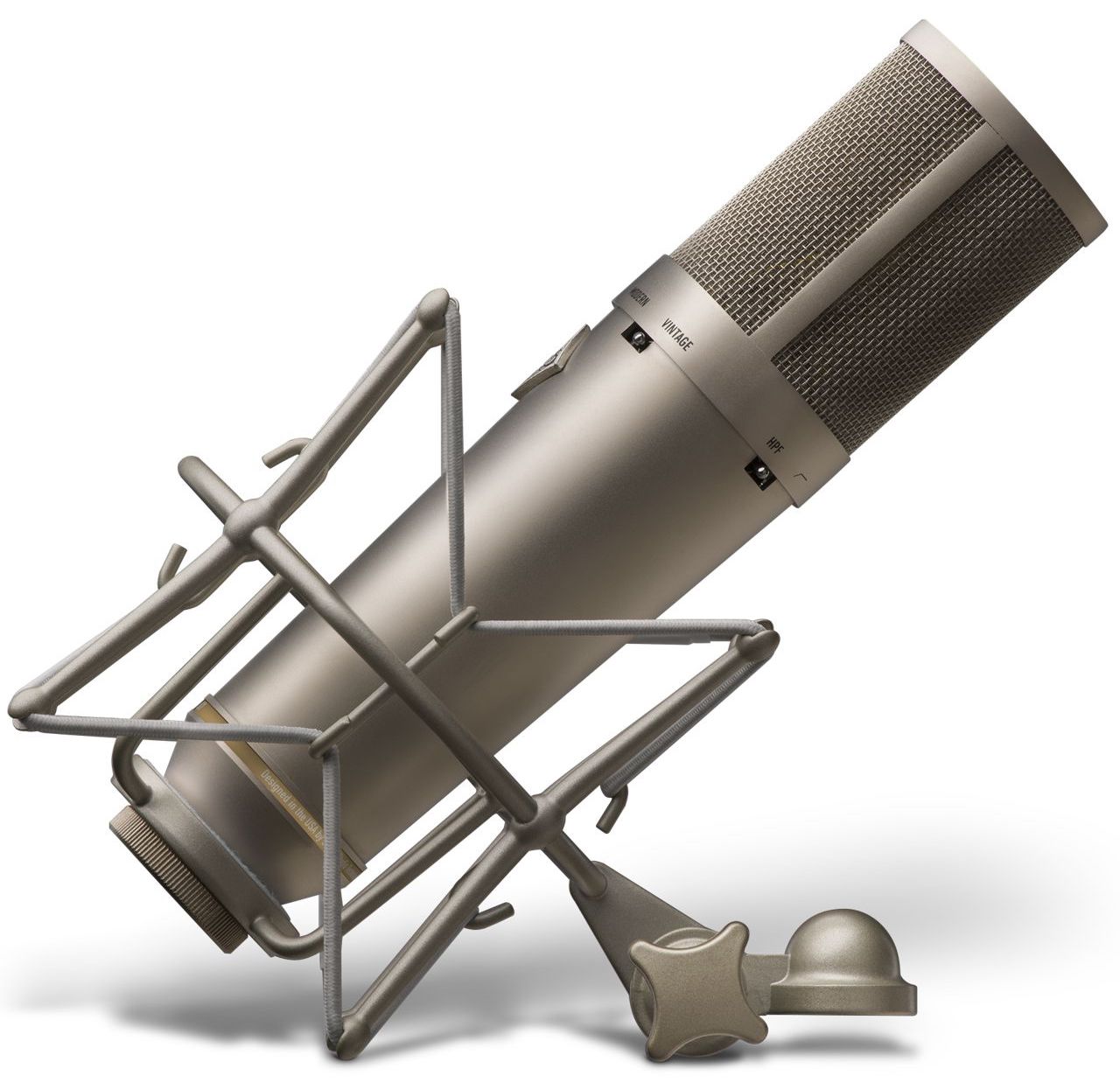

• Mount: Suspension type shock mount (included)
• Ground: Pin 1 XLR (required)
• Power Input: 48v Phantom Power (via XLR)
• Included Accessories: Vintage-style pouch, shockmount
• Dimensions: Height: 220 mm / 8.6″, Diameter: 55 mm / 2.2″, Shockmount Depth: 118 mm / 4.64″ - 178 mm / 7″
