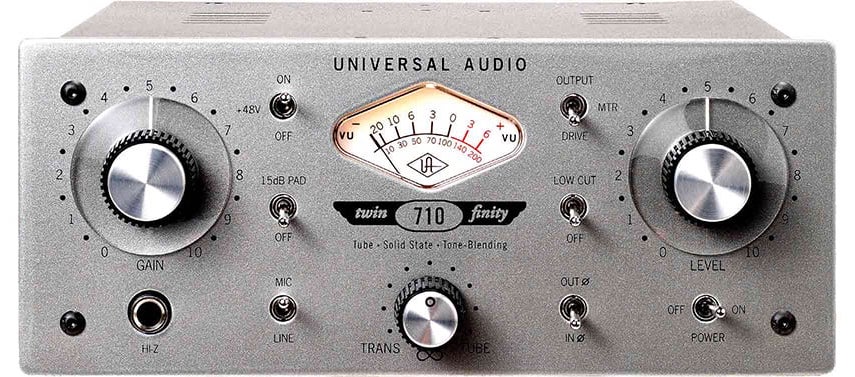

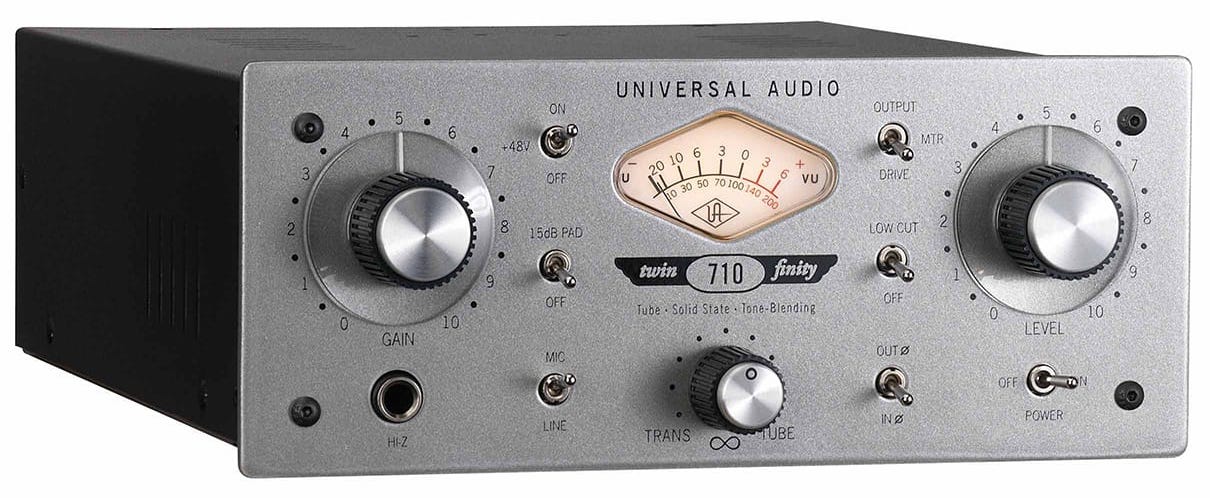

Universal Audio 710 Twin-Finity Mic Preamp

Get tube and solid-state sonics and everything in-between with this unique mic pre/DI.

The award-winning 710 Twin-Finity™ is a radical UA mic preamp design that combines both the classic retro warmth of tubes with the transient bite of solid-state, all in a 2U, half-rack unit. The 710 was created specifically to add the tonal versatility and sonic inspiration missing from generic audio interface preamps.

The Ultimate in Mic Pre Flexibility

The key to the 710 Twin-Finity’s sonic flexibility lies in its innovative circuit design, featuring a solid-state transimpedance input amp simultaneously driving separate, phase-aligned tube and solid-state gain stages, which are then summed to a single output. The mix between the 310 volt single-ended class-A triode tube stage and solid-state transimpedance stage is controlled via the "Blend Knob" labeled "∞". Blending is continually variable between 100% tube and 100% solid-state offering a practically infinite range of unique pre-amp tones and the ability to easily dial-in your own signature sound.

Tone blending is continually variable between 100% tube and 100% solid-state, offering a practically infinite range of unique preamp tones, plus the ability to easily dial-in your own signature sound. There are lots of sensibly priced solid-state and tube preamplifiers out there, but the 710 Twin-Finity is the only one that offers the best of both worlds — as well as everything in-between — all in one box, and within reach of any serious project studio’s budget. Includes a 19" rack-kit for mounting one or two units.

NOW YOU CAN:

• Harness the distinct sonic properties of tubes and solid-state in one unique preamp/DI
• Blend between tube and solid-state sounds for myriad textures and tones
• Unlock the potential of your mic locker with a powerfully versatile preamp
• Easily track guitar, bass, or keyboards with the front panel 1/4“ Hi-Z instrument input
• The Ultimate in Mic Pre Flexibility

The key to the 710 Twin-Finity’s sonic flexibility lies in its innovative circuit design, featuring a solid-state transimpedance input amp simultaneously driving separate, phase-aligned tube and solid-state gain stages, which are then summed to a single output. The mix between the 310 volt single-ended class-A triode tube stage and solid-state transimpedance stage is controlled via the "Blend Knob" labeled "∞". Blending is continually variable between 100% tube and 100% solid-state offering a practically infinite range of unique pre-amp tones and the ability to easily dial-in your own signature sound.

Drive for Days

Like all our other preamp designs, the 710 features dual gain-stage controls (Gain/Level) which can radically vary the amount of coloration and distortion by allowing you to crank up the input gain like a guitar amp. The VU meter features a unique "Drive" mode allowing you to see how hard you are driving the input stage.

Specs.

Twin-Finity™ Tone-Blending Mic/Line Preamp & Hi-Z Instrument DI
Dual-Path 310 volt Class-A Tube and Transimpedance Solid State Preamp
Phase-Aligned "Tone-Blending" of Tube and Solid State
Dual Gain Stages: Wire with Gain to Creamy to Crunchy
Discrete JFET DI with 2.2M ohm Ultra Hi-Z impedance
Monolithic Balanced Output Stage
70dB+ of gain, +48V Phantom, Pad(-15dB), Phase Invert, and Low Cut Filter(75Hz)
Output and "Drive" backlit VU metering
Portable, Rack-Mountable design for Studio, Desktop or Stage

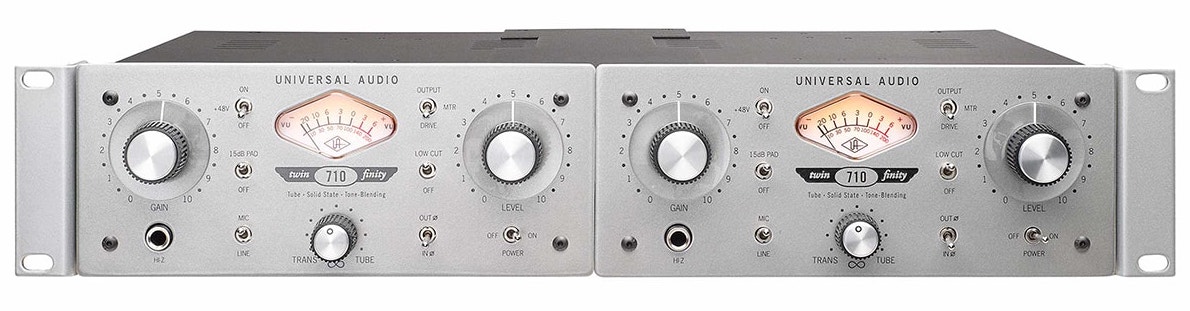

19” Rack Kit Included
Front Panel Hi-Z Input (switched from Mic/Line automatically via Jack Detect)
Rear Panel XLR Mic Input, XLR Line Input and XLR Line Output
Universal Internal Power Supply
Heavy-Duty Metal Construction
