Warm Audio WA-47T Titanium

Warm Audio WA-47T Titanium

Authentieke reproductie van de meest begeerde buizen condensatormicrofoon, geprezen om zijn tijdloze studiogeluid (Neumann U47) - Limited Edition

WA-47T

Price on
demand Gold client price available!
Click here and becom a Gold Client

Quantity

Add this product to your quotation.
It will be ordered for you.
Neem contact us for delivery times

Add to quotation

Leverings- en Retourbeleid

Yearly rental

€0.69/ day

Add to yearly rent +

Questions? Seen a better price?

Call +31 (0) 512 - 340457 or contact us!

Product omschrijving

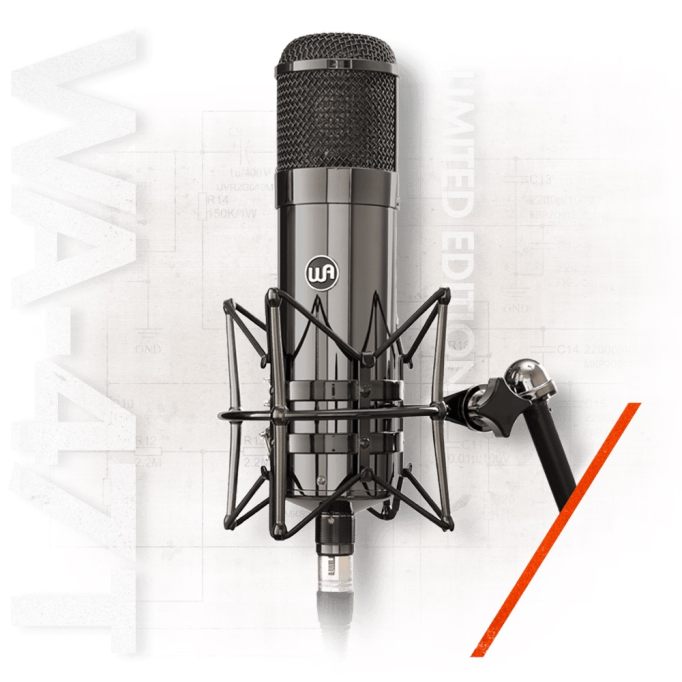

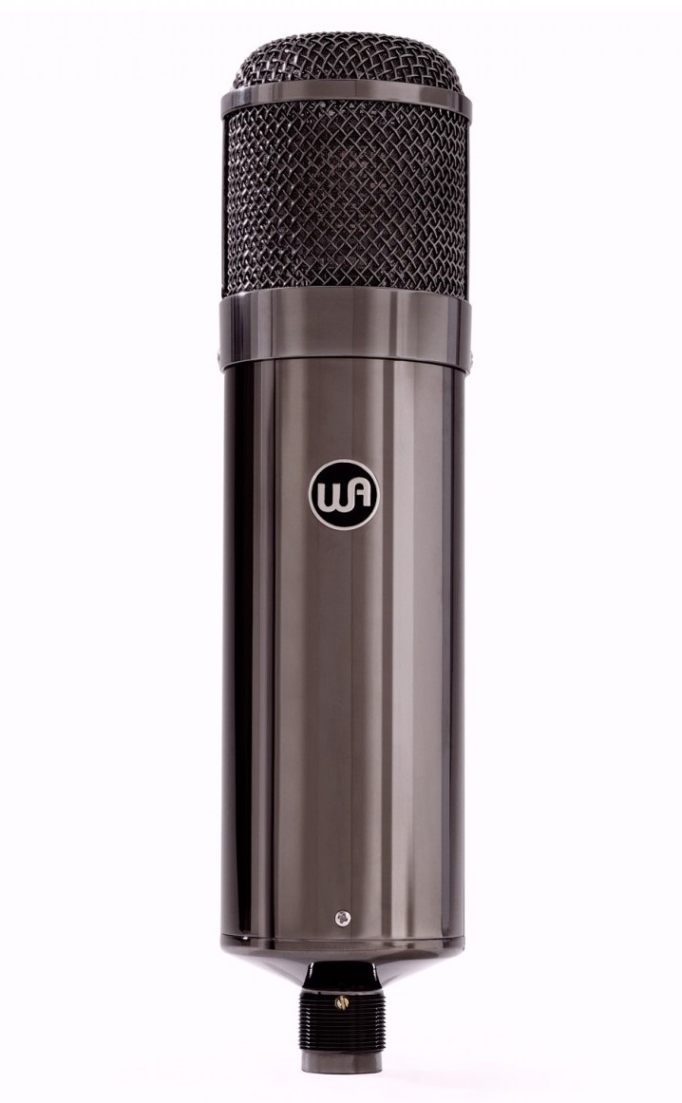

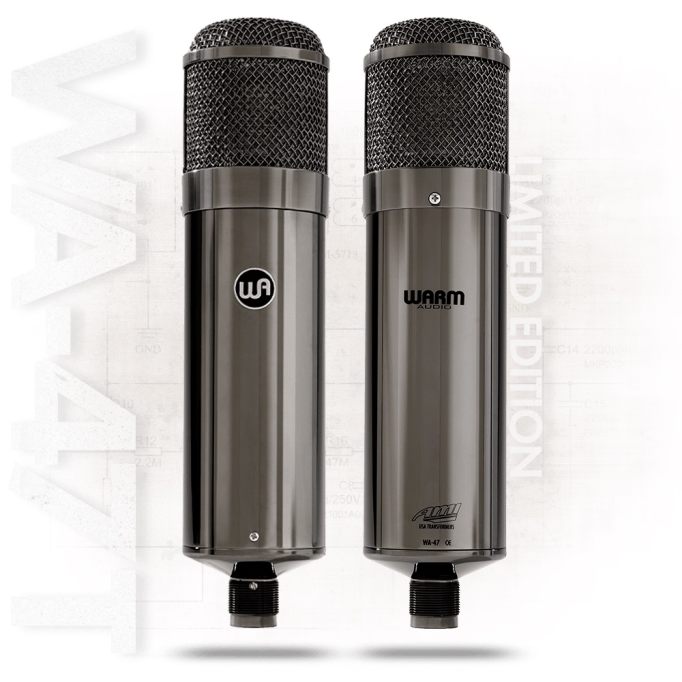

Warm Audio WA-47T Titanium

LARGE-DIAPHRAGM TUBE CONDENSER MICROPHONE

Authentic Reproduction Of The Most Coveted Mic For Timeless Studio Sound

TIMELESS STUDIO SOUND
The WA-47 is an authentic reproduction of the most coveted tube condenser microphone, hailed for its timeless studio sound. The WA-47 accurately matches the sonic profile of the prized vintage originals delivering the deep bass, rich midrange, and smooth highs that made it a favorite of legendary recording artists like Frank Sinatra, Johnny Cash, Ella Fitzgerald, Billie Holiday, Elton John and many more.

A PROPER RECREATION OF A STUDIO LEGEND
The WA-47 is designed and built to deliver the most authentic vintage 47-style sound with zero corners cut. Just like the original, the WA-47 circuit allows a lot of low-end and mid detail to come through. While the lows and mids come together to capture all the rich warmth and detail of acoustic instruments, vocals benefit greatly from the smooth and pleasing top end of the WA-47. The coveted and unmistakably vintage sound profile of the WA-47 makes it the perfect choice to create timeless music.

KEY FEATURES

What you need to know

Like the original 47-style mic, the WA-47 includes all the features that deliver a complete and professional recording experience.
The WA-47 uses a true reproduction of the K47-style capsule in the original 47 tube mic. Perfect for recordings where vintage vibe is a must.
The custom USA-made AMI transformer drives the bold sound captured by the capsule, delivering the full body, warmth, and richness out of the WA-47 circuit.
The premium 5751 vacuum tube in the WA-47 delivers rich analog tone with exceptionally low gain - ideal for intimate recordings, especially on vocals.
The WA-47 has three key polar patterns - Cardioid, Omni, & Figure-8. Six additional patterns in-between provide ultimate flexibility and versatility for a variety of recording applications.

TECHNICAL SPECIFICATIONS

Product Description & External Specs

Large-Diaphragm Tube Condenser Microphone
9 Polar Patterns - Cardioid, Omnidirectional, Figure-8, + 6 intermediate patterns
Weight - 9 Lbs | Mic Diameter: 60mm | Mic Length: 254mm

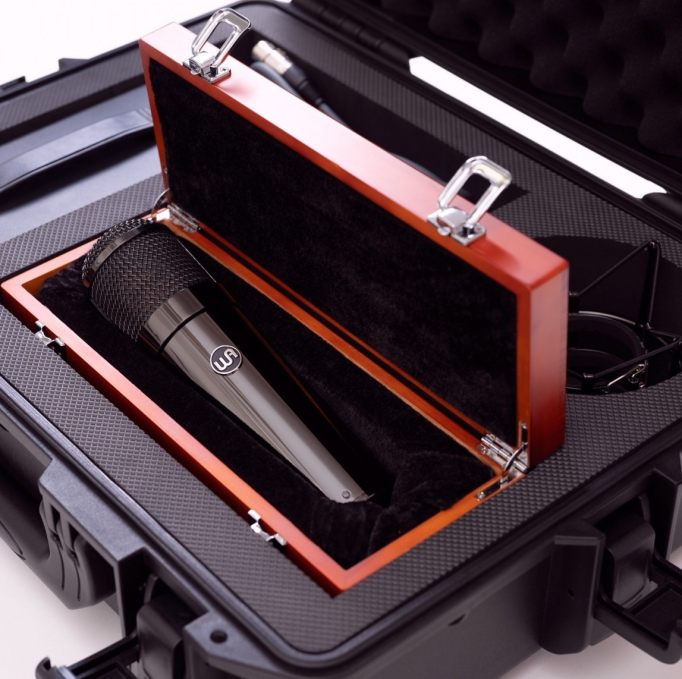

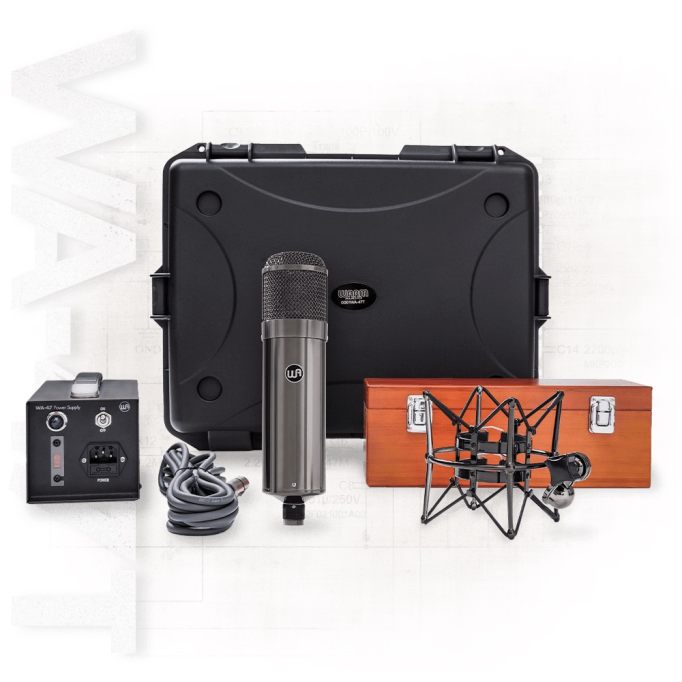

Includes: Microphone, Wood Box, Power Supply Unit, Shockmount, Gotham 7 Pin GAC-7 Cable, IEC Power Cable
5-Year Warranty

Components & Internal Specs

Custom, K47-Style Capsule - Gold-Sputtered, Dual-Backplate, 6 Microns NOS Mylar (PET Film)
TAB-Funkenwerk (AMI) USA Output Transformer
Premium 5751 Vacuum Tube
Wima, Solen French, And Polystyrene Capacitors

Performance Specs

Self-Noise: 11dBA
Dynamic Range: 130dBA
Maximum SPL: 140dB (<0.5% THD)
Dimensions: 8” X 2.75” (20.3cm X 7cm)
Frequency Range: 20 Hz~20 KHz
Output Impedance: 200 ohms
Rated Load Impedance: ≥2kOhms
S/N Ratio: 82dBA
Equivalent Noise: 10dBA (IEC651)
