Warm Audio WA-DI-P Direct Box
Transformator-gebalanceerde passieve direct box, gebouwd rond de wereldberoemde CineMag USA-transformator
WA-DI-P
Vragen? Betere prijs gezien?
Bel 0512 - 340457 of neem contact op!
Product omschrijving
Warm Audio WA-DI-P
TRANSFORMER-BALANCED PASSIVE DIRECT BOX
For Connecting Guitar, Bass, Keys And Other ¼” Instruments Directly To Mixers And Audio Interfaces.
PRESERVE YOUR TONE
Warm Audio’s active and passive DI boxes are designed and built to deliver premium performance, from the inside-out. On the inside, you’ll find 100% Class-A circuitry using premium components, but the star of the show is a custom USA-made CineMag transformer, included in both passive and active models. The transformer ensures that any analog color and character from your instrument or signal chain is preserved before hitting any mixers or audio interfaces. On the outside, a selectable -3 - -30dB pad helps dial-in your ideal signal volume and ground/lift switch helps eliminate ground-loop noise. The active version adds 48v phantom power via dual 9v batteries. The active DI can also be switched to passive mode for added versatility.
PRO DIRECT SOUND: STUDIO & STAGE
Warm Audio DI Boxes allow you to run the high-impedance signals from guitar, bass, and keyboards directly into low impedance mic preamps, mixers, interfaces or to send signal over extended cable runs without losing volume, tone, and significant high-frequency information. Warm Audio's road-worthy DI Boxes are the professional solution for this common mismatch, ensuring you won't diminish the tone of your instrument or performance.
KEY FEATURES
What you need to know
- Like premium DI boxes costing 2-3X, Warm Audio active and passive DIs include all the features and rugged build expected to deliver a complete and professional audio experience.
- The variable pad on the DI boxes is designed to help properly set levels from the DI to the mixer or audio interface. If distortion is audible, engage the bad and begin to apply attenuation until the signal is loud and clear.
- The Phase switch reverses the polarity of the signal, correcting potentially poorly wired cables and eliminating phase-related noise issues.
- The “instrument” setting on the switch works with all types of instruments using ¼” outputs. When using a signal from a guitar amplifier is desired, switch to “amp out” switch to send your amplified guitar signal to the DI and then out via the XLR output. **
- Eliminate noise like hum and buzz caused by ground-loop issues. As more pieces of equipment connect to various power supplies, the chance of ground-loop hum issues increase.
**WARNING: Most guitar amps require a reactive load (a speaker) to be connected to the amplifier to prevent overheating. The best practice is to connect a ¼” cable to the ‘THRU’ input directly to a properly rated speaker cabinet. This ensures the amp is loaded properly, preventing serious damage to your amplifier.

TECHNICAL SPECIFICATIONS
Product Description & External Specs
- Transformer-Balanced Passive Direct Box
- Converts Instruments To Mic-Level Signals Without Signal Degradation
- Ideal Solution For Plugging Your Instrument Direct Into Any Mic Pre
- Rugged Aluminum Construction
- Pad: Variable From -3dB To -30dB
- Measurement: 5-1/4" X 4-15/16" X 1-7/8"
- 5-Year Warranty
Components & Internal Specs
- Custom-Wound CineMag USA Output Transformer

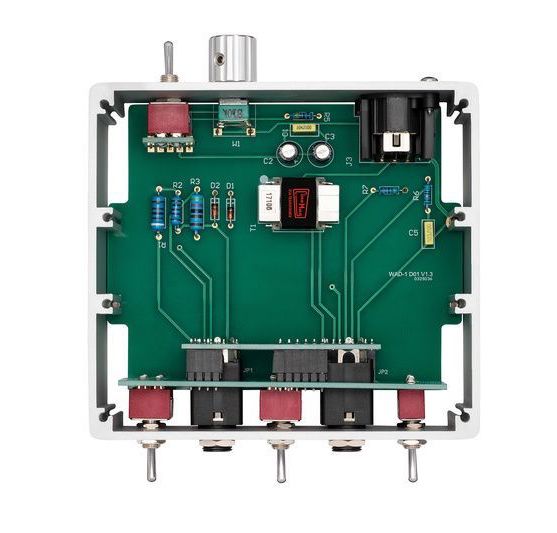

- Top-Quality Class-A Components With Gold-Plated Traces On Circuit Board
Performance Specs
- Balanced Output: 600 Ohms, Mic Level
- Input Impedance: 1 Meg Ohms
- Passive THD: .01% From 20Hz To 100 Hz. Less Than .004% From 100 Hz To 20 kHz
- Passive Frequency Response: 20hz To 70 kHz +/- 0.5dB
