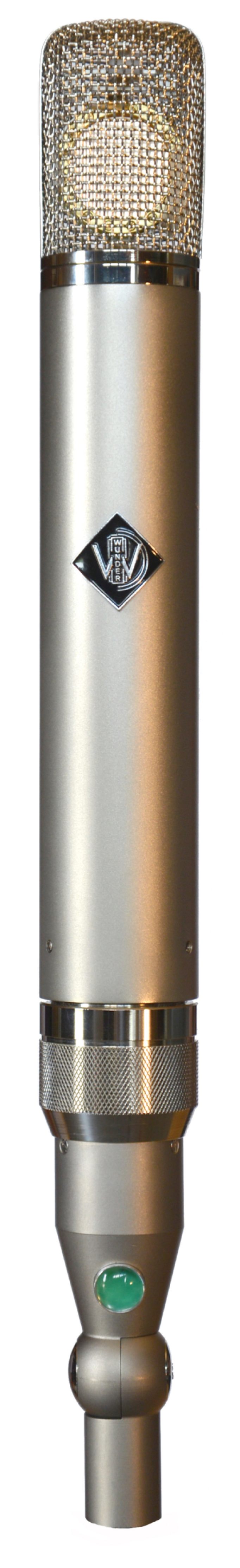

Wunder Audio CM12 S

Tube

The Wunder Audio CM12 S tubes are hand tested NOS GE 5-star 6072A:

• 6.3 volts DC filament voltage,
• 120 volts DC plate voltage

The GE 5 Star 6072A is one of the finest 6072 tubes ever made. In fact, the GE 5 Star 6072A’s are the only 6072 (12AY7 variant) tubes recommended in high-end applications. The primary special purpose of a 6072 is its super low noise and microphonics. That is why these tubes are important in microphones and first stages of high-end audio equipment. These special purpose dual triode tubes are equipped with spiral wound heater filaments to eliminate hum and have to pass rigorous screening for noise levels.

Technical Data

• Frequency Range: 20 to 20,000 ± 2 dB
• Directional Characteristics (nine different positions): Omni-directional.
• Cardioid: better than 20 dB front-to-back ratio at 180° sound incidence,
• Bi-directional: 20 dB front-to-back ratio
• Sensitivity: 1.0 mV/µbar (–60 dB re 1 V/dyne/cm2), unloaded (200 ohms)
• Equivalent Noise Level: less than 20 dB
• Tube Complement: 1 x 6072, 6.3 volts DC filament voltage,
• 120 volts DC plate voltage
• AC Connection: 110/125/145/220/245 volts AC at 50/60 cps

See the Wunder Audio CM12 S product page for more detailed information.
