Tree Audio Tree Comp 500 Series module

Tree Audio Tree Comp 500 Series module

Eenkanaals 500-serie VCA-compressor met Steve Firlotte's VF600 discrete amp blocks

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

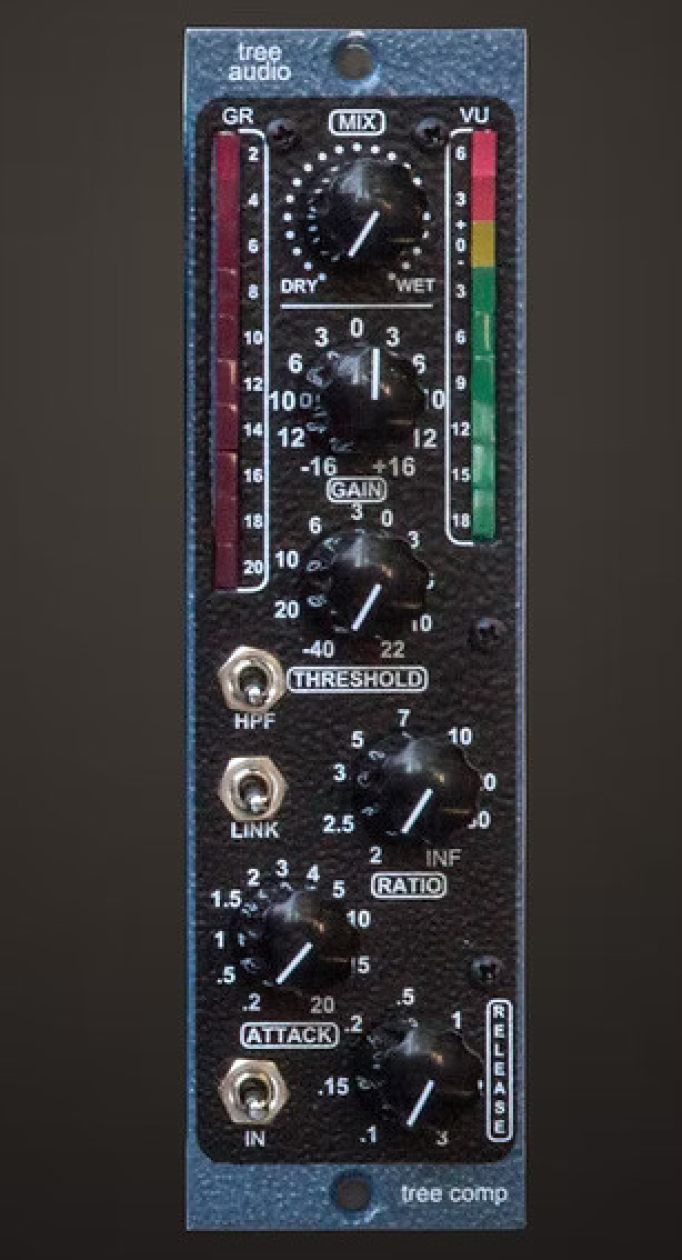

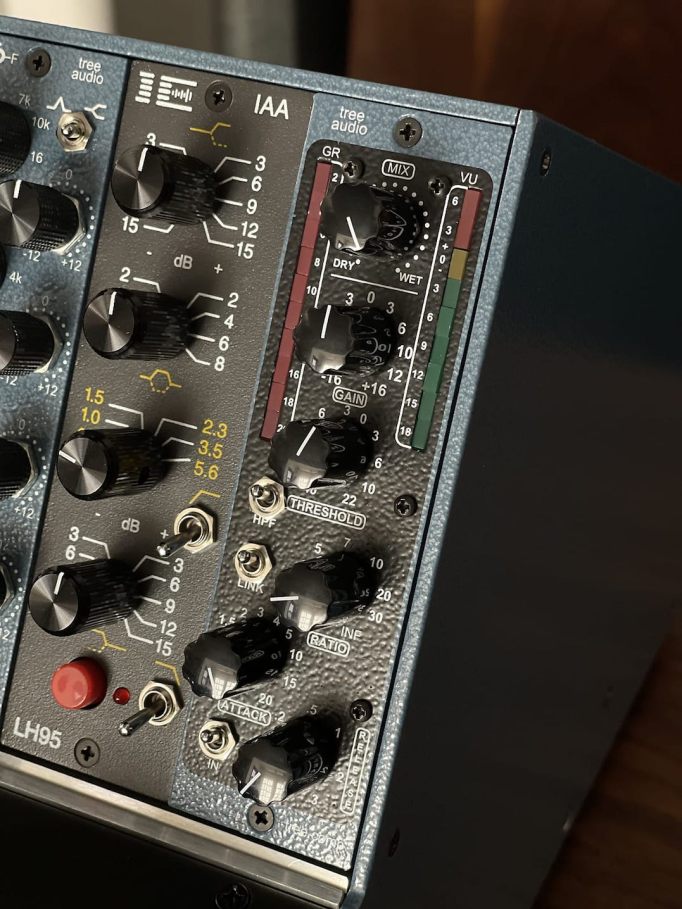

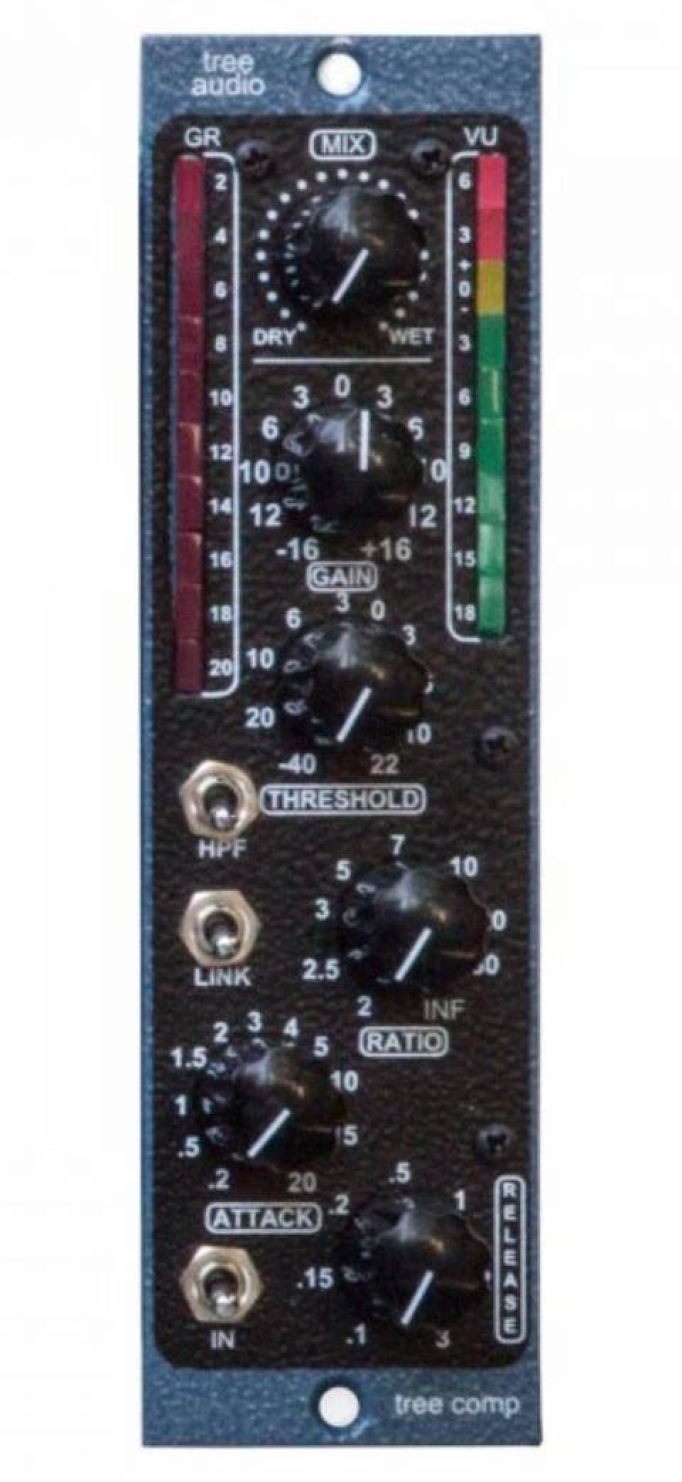

Tree Audio Tree Comp 500 Series module

VCA based limiter compressor

The Tree Audio Tree Comp is a single-channel 500 series VCA compressor using Steve Firlotte’s VF600 discrete amp blocks.

The Tree Comp uses a VCA design inspired by the original Inward Connections mVC500 and VOGAD modules. It provides wide-ranging time constant options from an ultra-fast 0.2ms to 20ms attack and release ranging from 0.1ms all the way to 3s. Ratio ranges between 2:1 to 30:1 and Infinity for subtle compression to heavy limiting. It also includes a Wet/Dry circuit for parallel compression for additional tonal coloration. The Tree Comp also includes a side-chain high pass filter with a fixed 250Hz frequency and a stereo link switch for stereo operation when two modules are connected to a suitable 500 Series chassis with side-chain input.

Features:

VF600 discrete amp blocks
Transformerless differential-balanced input
Transformer-balanced output
Wet/Dry Mix control
LED Output VU meter -18db to +6dB
Gain Makeup control +/- 16dB
Threshold Control -40dB to +22dB
Ratio Control 2:1 to 30:1 to infinity
Attack Control 0.2 milliseconds to 20 milliseconds
Release Control 0.1 seconds to 3 seconds
LED Gain reduction meter -2dB to -20dB
High Pass Filter – 250Hz sidechain filter
Stereo Link – can be tied to an adjacent unit
Bypass – relay engaged bypass

Specifications:

Input Impedance: > 20K ohms balanced
Output Impedance: 600 ohms balanced
Frequency Response: +/- 0.2dB @ 10Hz to 100KHz
Output Signal to Noise: < -95dB
THD + Noise: 0.01% @ 1KHz/+4dBu
Distortion: 0.01% THD, +4dBu @ 1KHz
