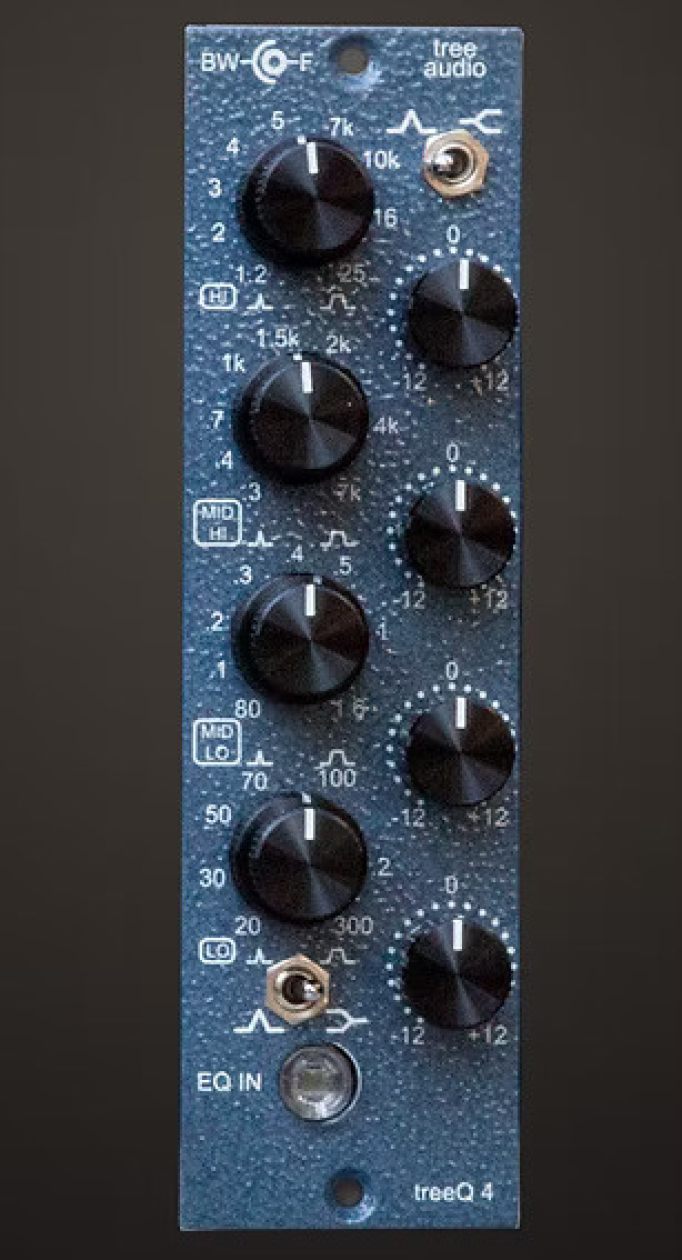

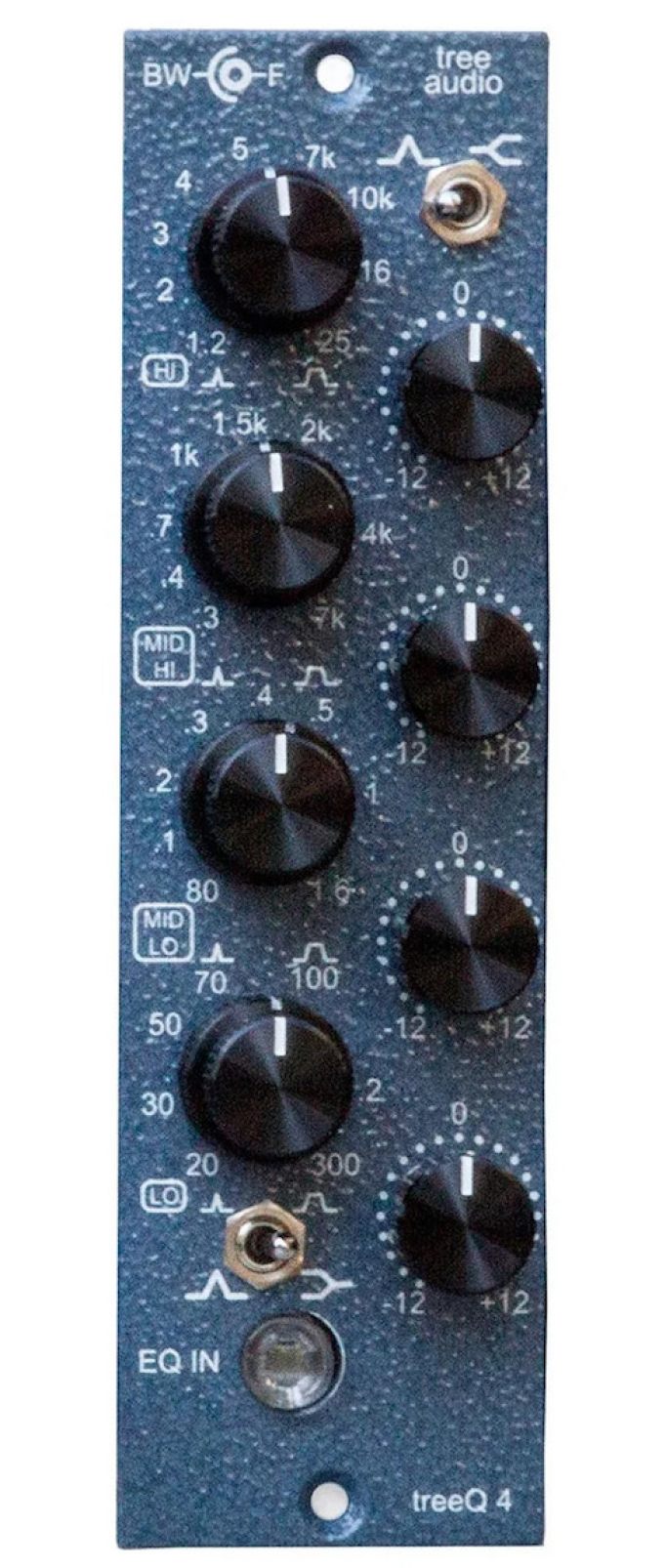

Tree Audio TreeQ 4 500 Series module

Tree Audio TreeQ 4 500 Series module

Eenkanaals 500-serie 4-bands parametrische equalizer

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Tree Audio TreeQ 4 500 Series module

4-band Parametric Equalizer

The Tree Audio TreeQ 4 is a single-channel 500 series 4-band parametric EQ module with an all-discrete Class A VF600 op-amp with a balanced output transformer. The TreeQ 4 boasts a differential balanced transformerless input stage. Each of the four band delivers up to +/-12dB of gain has sweepable frequencies. Frequency bands and attenuators bother have 41, ensuring precise settings and easy recall while bandwidth and frequencies share concentric knobs. The illuminated EQ in push button lets you switch the equalizer in or out.

Features:

High Band - sweepable from 1.2KHz to 25KHz with peak/shelf select switch
Mid High Band - sweepable from 300Hz to 7KHz
Mid Lo Band - sweepable from 80Hz to 1.6Hz
Lo Band - sweepable from 20Hz to 300Hz with a peak/shelf select switch
+/- 12dB cut & boost level for all 4 bands
Adjustable bandwidth control for all 4 frequencies .20 to 2.0 per octave
41 detents on all frequency and level attenuators (recallable)
31 detents on all band width attenuators (recallable)
Dual concentric knobs for frequency and bandwidth controls
Lighted push button EQ in/out switch
VF600 All Discrete Amp Blocks
Differential balanced transformerless input
Balanced output transformer
Fits standard 500 Series slot configuration mechanically and electrically

Specifications:

Input Impedance: >20K ohms balance
Output Impedance: 600 ohms balance
Frequency Response: +/- 0.5dB @ 20Hz to 20KHz
Output Signal to Noise: -95dB or greater
THD + Noise: .01% @ 1KHz/+4dBu
